Sch 40 Long Line Coupler | Center Stop PVC Repair Coupling
$20.10
Unit price
/
Select Option
Price per each (sold by the case of 20)
Lead Time: Stocking item - subject to availability

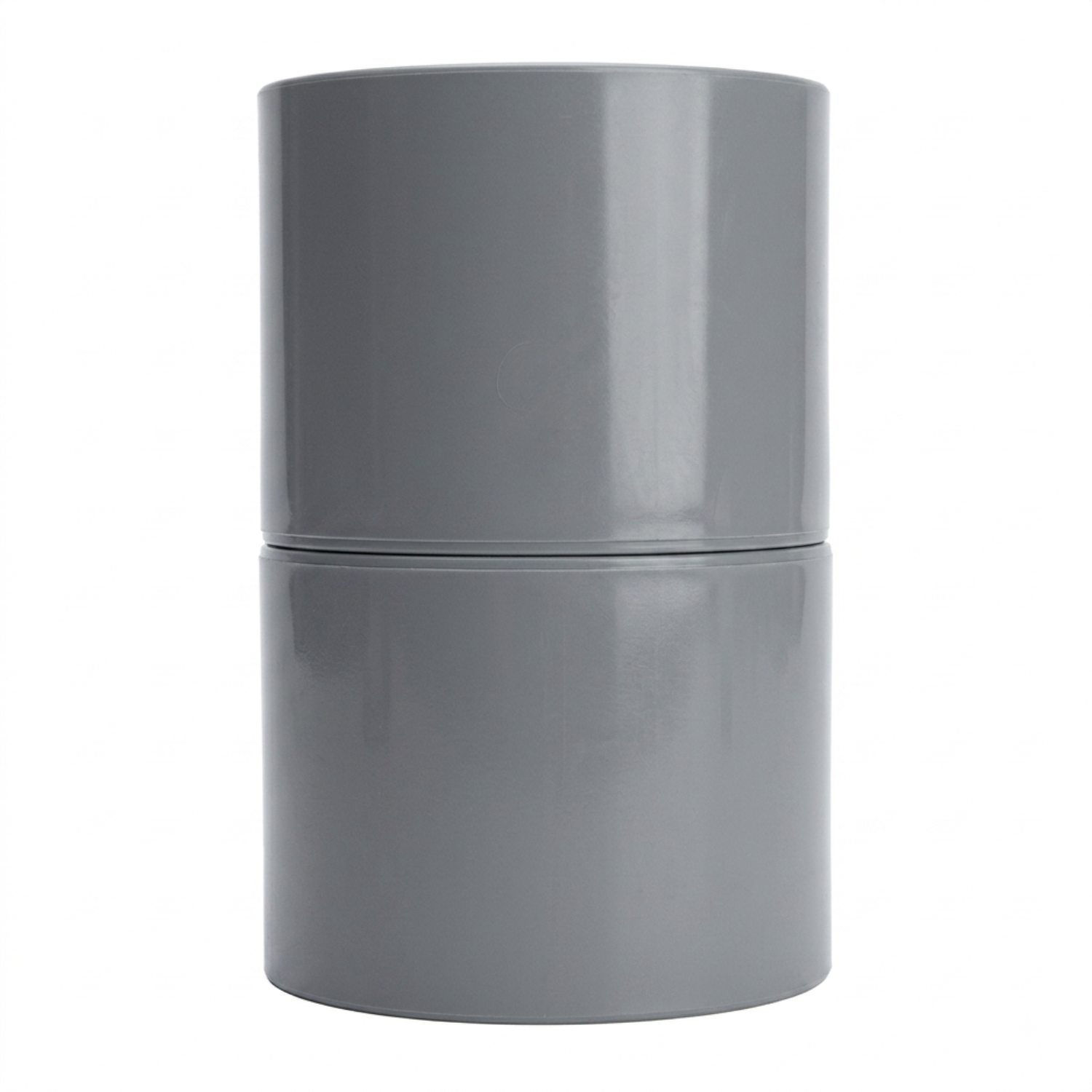

Sch 40 Long Line Coupler — PVC repair coupling with a center stop, for joining and repairing Schedule 40 PVC conduit.
A long line coupler is a standard PVC conduit coupling with extra sleeve length, giving more solvent-weld surface on each pipe end. The center stop inside seats both conduit ends at the middle of the coupling, so the joint is centered and both sides get the full socket depth.
Which One Do I Need?
| Coupler | Center stop | Best for |
|---|---|---|
| Long Line Coupler (this listing) | Yes | New runs and repairs where both pipe ends can be pushed into the coupling; the stop centers the joint |
| Slip Coupler LINK | No | Repairs where the run cannot be sprung apart; slides fully onto one pipe and back over the joint |
Key Features
- Center stop: seats both conduit ends at the middle for a centered, full-depth joint
- Long line design: extra sleeve length gives more solvent-weld surface than a standard coupling
- Schedule 40 PVC: solvent cementable, UV resistant, for direct burial and encased duct
- Stocked in Woodstock IL: all three sizes ship from our warehouse
- Sold by the case: price shown is per coupler; the quantity box is pre-filled with the case quantity and steps in full cases
- Other sizes available: 2", 2-1/2" and 3" on request, call for pricing
Order Guide
| Part Number | Coupler Size | UPC | Case Qty (min. order) |
|---|---|---|---|
| CPLLCS400X7125 | 4" x 7-1/8" | 670648014150 | 20 |
| CPLLCS500X9125 | 5" x 9-1/8" | 670648014167 | 10 |
| CPLLCS600X10125 | 6" x 10-1/8" | 670648014174 | 6 |
Size is nominal conduit size x coupling length. Couplers are sold in full manufacturer cases; the case quantity is the minimum order and the order increment for each size.
