DB and EB Duct Repair Coupling | No Center Stop | 4" and 6"

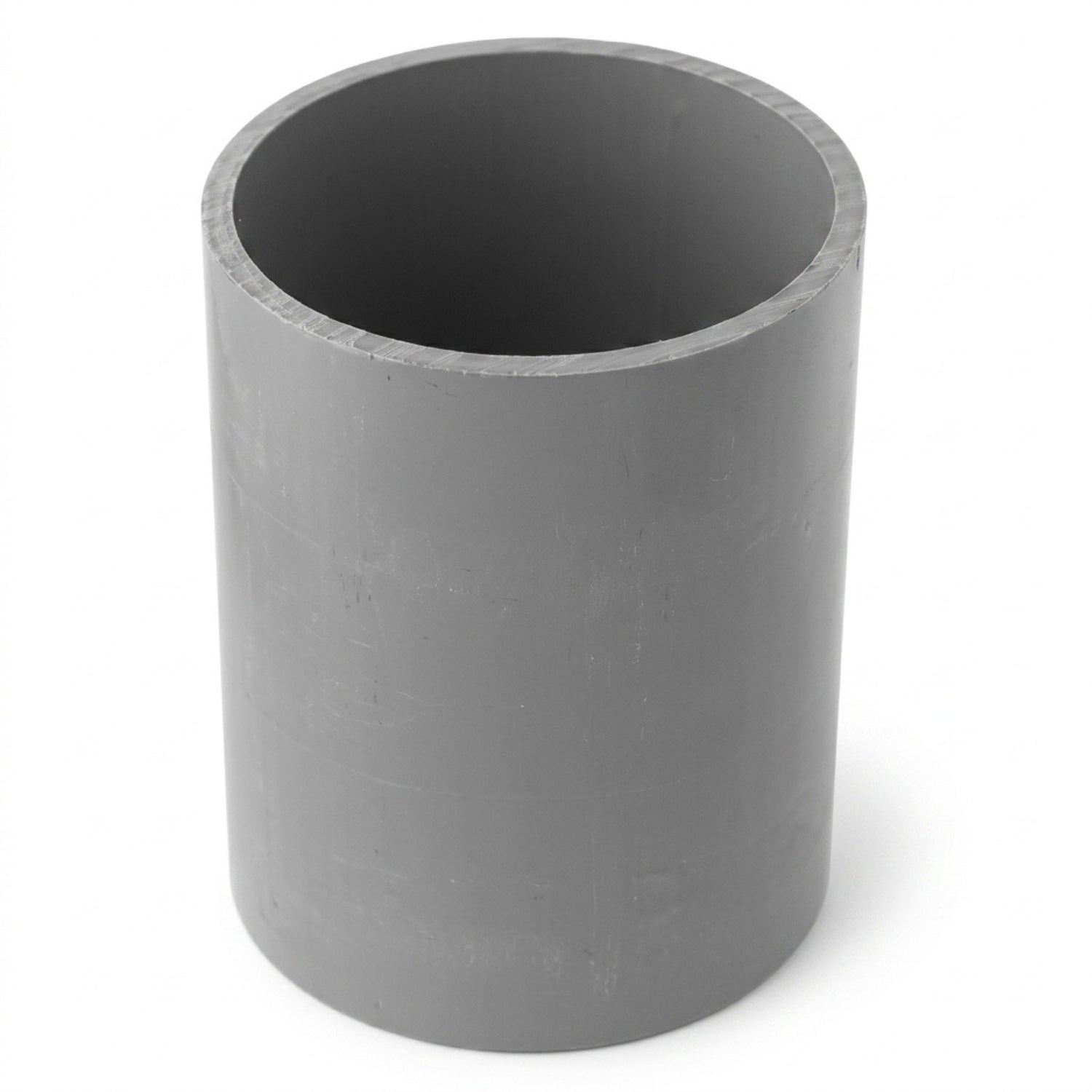

DB and EB Duct Repair Coupling — open-ended PVC sleeve coupling with no center stop, for repairing or joining DB and EB power and communications duct.

A repair coupling is a plain sleeve with no stop inside, so it can be slid fully onto one duct end, the second duct butted to the first, and the sleeve slid back to center over the joint. That is what makes it a repair fitting: a standard coupling with a center stop needs both ends pushed into it, which is impossible once a run is in the ground. Made to the DB/EB outside diameter.

Key Features

• No center stop: slides fully onto one duct and back over the joint
• DB and EB duct: sized to power and communications duct, not Schedule 40
• Solvent weld PVC: UV resistant, for direct burial and concrete encasement
• Two sizes: 4" x 10" stocked in Woodstock IL with a minimum order of 5; 6" made to order by the case of 6
• Don't see your size? Call (815) 337-8845 and we'll quote it, usually same day.

Before You Order

• Match the duct. These couplings are sized to DB and EB duct. For Schedule 40 or 80 PVC conduit, see the Sch 40 slip coupler. View Sch 40 Slip Couplers Here > LINK

Order Guide

Other sizes (2", 3", 3-1/2", 4" x 6", 5") are available on request; call for pricing. Made-to-order sizes ship from the manufacturer in full cases.
