ROUND T-CONE PLUG FOR CONDUIT BARREL
Ensure a reliable and reusable solution for sealing ducts with the T-Cone Plug, the industry leader in duct plugs. Designed without any metal parts, the T-Cone provides a secure, long-lasting seal to protect against the infiltration of debris, water, and sewer gases. Its high-performance design can even withstand up to 20 feet of head pressure in blowout tests, making it a dependable choice for various applications.

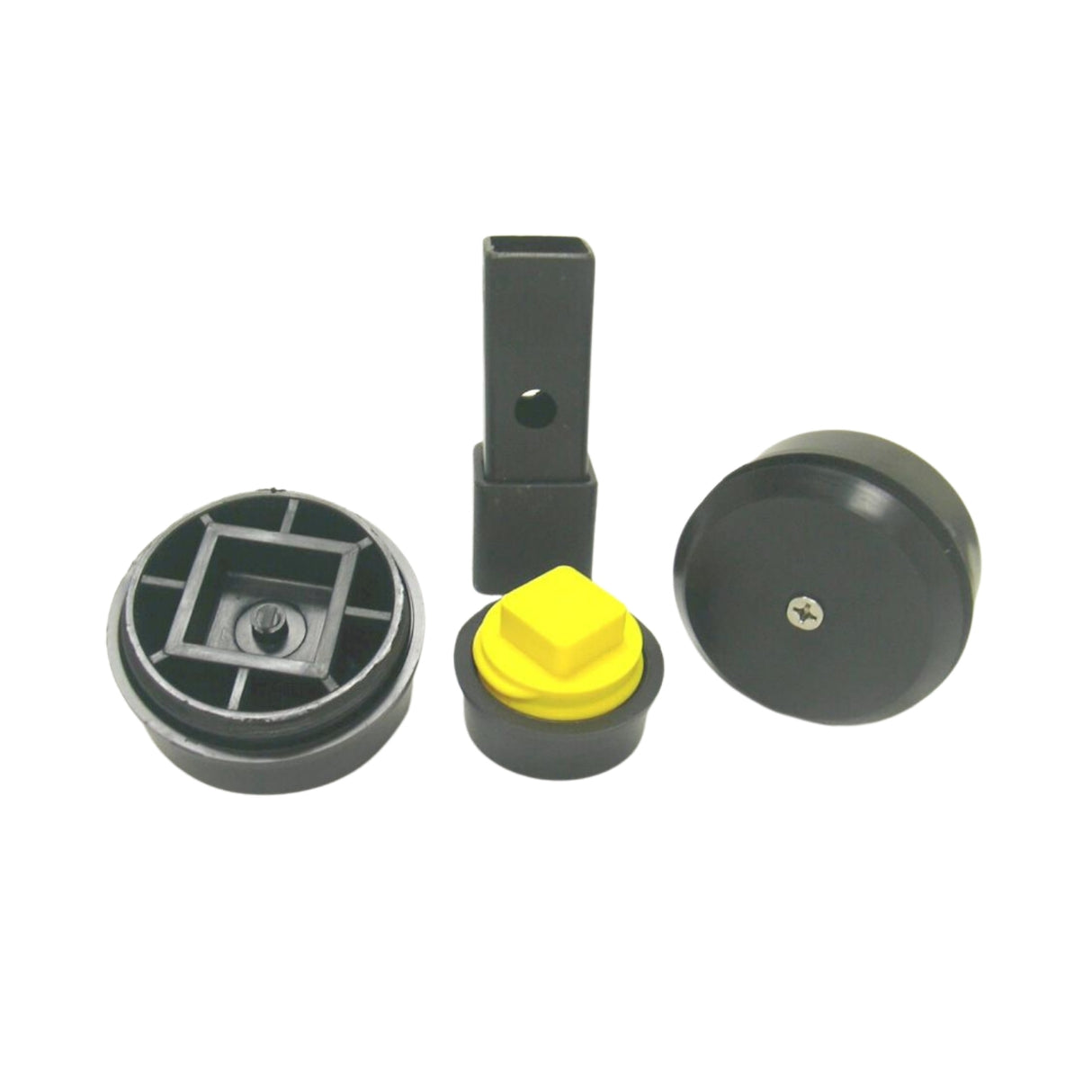

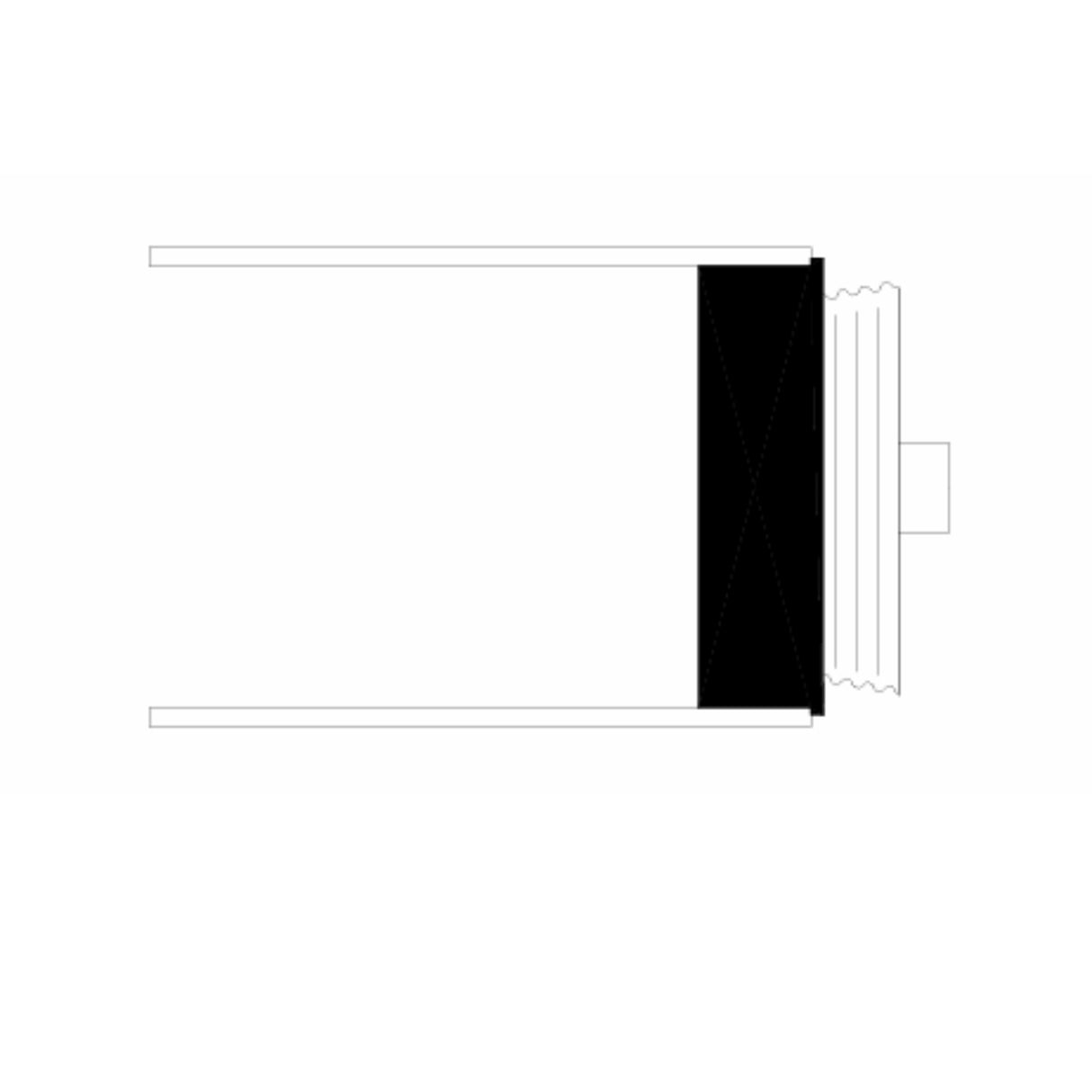

The T-Cone Plug features a two-piece, threaded design, which includes an expandable sealing gasket and a tapered polyolefin-mating plug. This design allows for easy installation and removal, making it perfect for professionals who require efficiency without sacrificing performance.
Available in sizes ranging from 1" to 8" in diameter, the T-Cone Plug offers flexibility for various conduit sizes. Additionally, custom configurations, including square gaskets, are available to meet unique project needs. For added convenience, T-Cone Plugs can be equipped with rope tie loops to easily tie off pull strings or ropes.
Key Features:
- Reusable: Designed for multiple uses without compromising the seal.
- Strong Seal: Protects against debris, water, and sewer gases.
- High Pressure Resistance: Withstands up to 20 feet of head pressure.
- Easy Installation: Two-piece threaded design with expandable gasket ensures quick and easy application.
- Available in Multiple Sizes: Ranging from 1” to 8” with special configurations available.
- Rope Tie Loops: Optional feature for tying off pull strings or ropes.
The T-Cone Plug is the perfect choice for professionals seeking a durable, versatile, and easy-to-use duct plug solution for conduit barrels.
ROUND T-CONE PLUG
FOR CONDUIT BARREL
| NOM Size | Conduit Type | Part No. | I.D. | Pieces Per Carton | Weight Per Carton |
|---|---|---|---|---|---|
| 1 | SCH 40 | ST-102 | 1.050 | 50 | 3 |
| 1 | DB-120 | ST-103 | 1.195 | 50 | 3 |
| 1 | SCH 40 SOCKET | ST-106 | 1.315 | 50 | 3 |
| 1-1/8 | 1-1/8" I.D. SOCKET | ST-104 | 1.125 | 50 | 3 |
| 1-1/4 | 1-1/4" I.D. DUCT | ST-105 | 1.250 | 50 | 3 |
| 1-1/4 | SCH 40 | ST-125 | 1.380 | 50 | 3 |
| 1-1/4 | DB60 / EB20 | DB-120 | 1.540 | 50 | 4 |
| 1-1/4 | 1.49" SOCKET | ST-149 | 1.490 | 50 | 4 |
| 1-1/2 | SCH 40 | ST-152 | 1.610 | 50 | 4 |
| 1-1/2 | DB60 / EB20 | EB-152 | 1.780 | 50 | 5 |
| 2 | SCH 80 | ST-201 | 1.939 | 50 | 6 |
| 2 | SCH 40 | ST-202 | 2.067 | 50 | 6 |
| 2 | GTE (0.090" T) | ST-203 | 2.195 | 50 | 7 |
| 2 | DB60 / EB20 | EB-220 | 2.255 | 50 | 8 |
| 2-1/2 | 2.469" ID DUCT | ST-250 | 2.469 | 50 | 9 |
| 3 | CAST IRON BARREL | ST-301 | 2.960 | 50 | 12 |
| 3 | SCH 40 | ST-302 | 3.066 | 50 | 12 |
| 3 | EB20 | EB-320 | 3.378 | 50 | 17 |
| 3 | DB60 | DB-360 | 3.316 | 50 | 16 |
| 3-1/2 | IPS HUB | EB-350 | 4.000 | 50 | 18 |
| 3-1/2 | 3.500" ID DUCT | ST-352 | 3.500 | 50 | 20 |
| 4 | SDR-11 | ST-358 | 3.580 | 50 | -- |
| 4 | 3.700" ID DUCT | ST-370 | 3.700 | 50 | 23 |
| 4 | SDR 13.5 | ST-375 | 3.750 | 50 | 22 |
| 4 | 3.810" ID DUCT | ST-381 | 3.810 | 50 | 25 |
| 4 | 4.215" ID DUCT | ST-400 | 4.215 | 50 | 25 |
| 4 | SCH 80 | ST-401 | 3.900 | 50 | 24 |
| 4 | SCH 40 & C DUCT | ST-402 | 4.026 | 50 | 22 |
| 4 | SDR 26 | ST-403 | 4.125 | 50 | 23 |
| 4 | 4" VCP BELL | ST-404 | 5.620 | 50 | 36 |
| 4 | 3.856" ID DUCT | ST-415 | 3.856 | 50 | -- |
| 4 | DB120 | ST-419 | 4.190 | 50 | -- |
| 4 | EB20/EMT | EB-420 | 4.336 | 50 | 28 |
| 4 | DB60 / GT80-DB | ST-425 | 4.258 | 50 | 27 |
| 4 | 4.625" ID DUCT | ST-462 | 4.625 | 50 | -- |
| 5 | SDR 13.5 (SCH 80) | ST-475 | 4.750 | 50 | 38 |
| 5 | SCH 40 | ST-502 | 5.047 | 50 | 33 |
| 5 | 5.420" ID DUCT | ST-542 | 5.420 | 50 | 40 |
| 5 | EB20 | EB-520 | 5.357 | 50 | 38 |
| 5 | DB60 | DB-560 | 5.260 | 50 | 38 |
| 5 | SDR-13.5 | ST-560 | 5.563 | 50 | 36 |
| 6 | 6.275" ID DUCT | ST-600 | 6.275 | 36 | 40 |
| 6 | HDPE SMOOTH-COR | ST-601 | 5.915 | 36 | 35 |
| 6 | SCH 40 | ST-602 | 6.065 | 36 | 38 |
| 6 | "NO BELL" VCP SLV | ST-603 | 7.990 | 20 | 38 |
| 6 | SCH 80 | ST-604 | 5.760 | 36 | 32 |
| 6 | 6.125" ID DUCT | ST-612 | 6.125 | 36 | -- |
| 6 | 6.963" ID DUCT | ST-695 | 6.963 | 20 | 36 |
| 6 | EB20 | EB-620 | 6.375 | 36 | 44 |
| 6 | DB60 | DB-660 | 6.261 | 36 | 41 |
| 7 | 7.060" ID DUCT | ST-706 | 7.060 | 36 | 66 |
| 8 | SCH 40 | ST-802 | 8.000 | 20 | 45 |
ROUND T-CONE PLUG FOR CONDUIT
BARREL WITH ROPE TIE
| NOM Size | Conduit Type | Part No. | I.D. | Pieces Per Carton | Weight Per Carton |
|---|---|---|---|---|---|
| 1 | SCH 40 | ST-102T | 1.050 | 50 | 4 |
| 1 | DB-120 | ST-103T | 1.195 | 50 | 4 |
| 1 | SCH 40 SOCKET | ST-106T | 1.315 | 50 | 4 |
| 1-1/8 | 1-1/8" I.D. SOCKET | ST-104T | 1.125 | 50 | 4 |
| 1-1/4 | 1-1/4" I.D. DUCT | ST-105T | 1.250 | 50 | 4 |
| 1-1/4 | SCH 40 | ST-125T | 1.380 | 50 | 4 |
| 1-1/4 | DB60 / EB20 | DB-120T | 1.540 | 50 | 5 |
| 1-1/4 | 1.49" SOCKET | ST-149T | 1.490 | 50 | 4 |
| 1-1/2 | SCH 40 | ST-152T | 1.610 | 50 | 5 |
| 1-1/2 | DB60 / EB20 | EB-152T | 1.780 | 50 | 5 |
| 2 | SCH 80 | ST-201T | 1.939 | 50 | 7 |
| 2 | SCH 40 | ST-202T | 2.067 | 50 | 7 |
| 2 | GTE (0.090" T) | ST-203T | 2.195 | 50 | 8 |
| 2 | DB60 / EB20 | EB-220T | 2.255 | 50 | 9 |
| 2-1/2 | 2.469" ID DUCT | ST-250T | 2.469 | 50 | 10 |
| 3 | CAST IRON BARREL | ST-301T | 2.960 | 50 | 12 |
| 3 | SCH 40 | ST-302T | 3.066 | 50 | 13 |
| 3 | EB20 | EB-320T | 3.378 | 50 | 18 |
| 3 | DB60 | DB-360T | 3.316 | 50 | 17 |
| 3-1/2 | IPS HUB | EB-350T | 4.000 | 50 | 18 |
| 3-1/2 | TEL DUCT | ST-352T | 3.500 | 50 | 21 |
| 4 | SDR-11 | ST-358T | 3.580 | 50 | -- |
| 4 | 3.700" ID DUCT | ST-370T | 3.700 | 50 | 24 |
| 4 | SDR 13.5 | ST-375T | 3.750 | 50 | 23 |
| 4 | 3.810" ID DUCT | ST-381T | 3.810 | 50 | 25 |
| 4 | 4.215" ID DUCT | ST-400T | 4.215 | 50 | 25 |
| 4 | SCH 80 | ST-401T | 3.900 | 50 | 25 |
| 4 | SCH 40 & C DUCT | ST-402T | 4.026 | 50 | 23 |
| 4 | SDR 26 | ST-403T | 4.125 | 50 | 24 |
| 4 | 4" VCP BELL | ST-404T | 5.620 | 50 | 36 |
| 4 | 3.856" ID DUCT | ST-415T | 3.856 | 50 | -- |
| 4 | DB120 | ST-419T | 4.190 | 50 | -- |
| 4 | EB20/EMT | EB-420T | 4.336 | 50 | 29 |
| 4 | DB60 / GT80-DB | ST-425T | 4.258 | 50 | 28 |
| 4 | 4.625" ID DUCT | ST-462T | 4.625 | 50 | -- |
| 5 | SDR 13.5 (SCH 80) | ST-475T | 4.750 | 50 | 39 |
| 5 | SCH 40 | ST-502T | 5.047 | 50 | 33 |
| 5 | 5.420" ID DUCT | ST-542T | 5.420 | 50 | 41 |
| 5 | EB20 | EB-520T | 5.357 | 50 | 39 |
| 5 | DB60 | DB-560T | 5.260 | 50 | 38 |
| 5 | SDR-13.5 | ST-560T | 5.563 | 50 | 36 |
| 6 | 6.275" ID DUCT | ST-600T | 6.275 | 36 | 40 |
| 6 | HDPE SMOOTH-COR | ST-601T | 5.915 | 36 | 36 |
| 6 | SCH 40 | ST-602T | 6.065 | 36 | 38 |
| 6 | "NO BELL" VCP SLV | ST-603T | 7.990 | 20 | 38 |
| 6 | SCH 80 | ST-604T | 5.760 | 36 | 33 |
| 6 | 6.125" ID DUCT | ST-612T | 6.125 | 36 | -- |
| 6 | 6.963" ID DUCT | ST-695T | 6.963 | 20 | 37 |
| 6 | EB20 | EB-620T | 6.375 | 36 | 44 |
| 6 | DB60 | DB-660T | 6.261 | 36 | 41 |
| 7 | 7.060" ID DUCT | ST-706T | 7.060 | 36 | 67 |
| 8 | SCH 40 | ST-802T | 8.000 | 20 | 46 |
