Cable Stripper Slitter | 8 AWG to 500 kcmil | Condux
$81.25
Unit price
/
Select Option

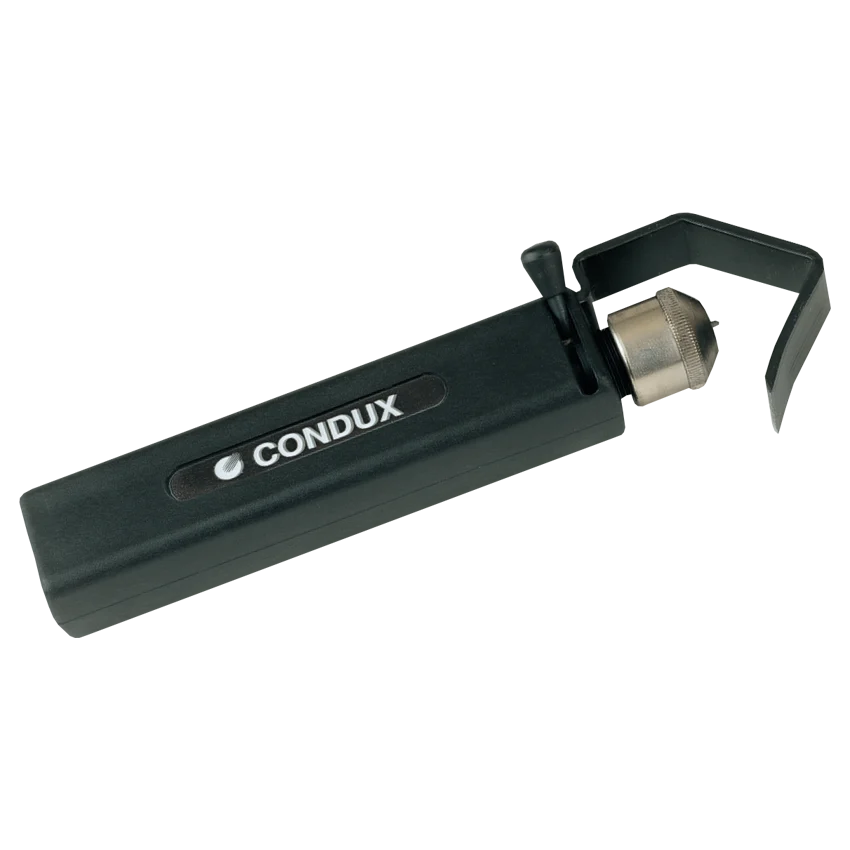

Small & Large Cable Stripper/Slitter | Adjustable Blade | 8 AWG–500 kcmil — Product Overview
Condux Cable Stripper/Slitter tools provide fast, controlled insulation removal for round cables ranging from 0.18" (5 mm) up to 1.42" (36 mm) in diameter, covering conductor sizes from 8 AWG to 500 kcmil. A spring-loaded cable support arm and swiveling blade allow technicians to make clean circular, longitudinal, or spiral cuts during field or shop cable preparation.
Key Features
- Two Size Options: Small and Large tools cover common cable diameter ranges.
- Swiveling Blade: Supports circular, longitudinal, and spiral cuts.
- Spring-Loaded Support Arm: Beveled leading edge helps stabilize cable during stripping.
- Replaceable Blade: Replacement blade fits both tool sizes.
Ordering Information
| Part Number | Description | Cutting Depth (in) | Cutting Depth (mm) | Max Dia. (in) | Max Dia. (mm) |
|---|---|---|---|---|---|
| 08013000 | Small Diameter Stripper/Slitter | 0.118 | 3 | 0.18–1.00 | 5–25 |
| 08013050 | Large Diameter Stripper/Slitter | 0.177 | 4.5 | 0.98–1.42 | 25–36 |
| 08013001 | Replacement Blade (fits both sizes) | — | — | — | — |
