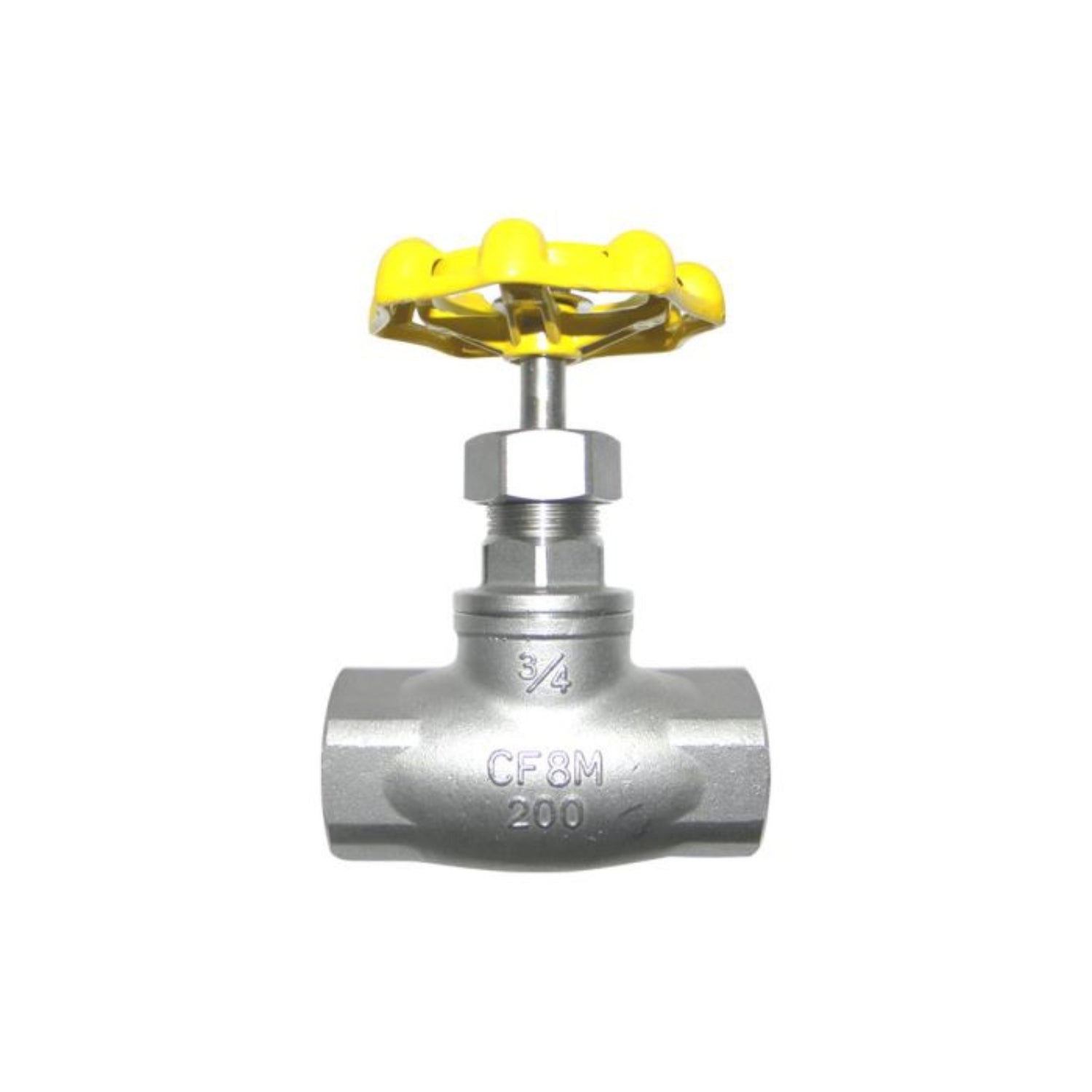

Stainless Steel Globe Valve | 880 Series | FNPT x FNPT | Rising Stem
$26.25
Unit price
/
Select Option
Stainless Steel Globe Valve | 880 Series | FNPT × FNPT | Rising Stem | 200# WOG
Red-White Valve 880 Series Stainless Steel Globe Valves are designed for precision flow control and long-lasting performance in demanding applications. Constructed from ASTM A351 CF8M stainless steel, these valves feature a rising stem, swivel-type disc, and inserted bonnet for smooth operation and superior sealing. Each valve is tested and inspected to API 598 standards, ensuring dependable performance across water, oil, and gas systems.
Key Features & Benefits
- All-Stainless Construction: Body, disc, bonnet, and stem are precision-machined from ASTM A351 CF8M and A276 316 stainless steel for superior corrosion resistance and strength.
- High Pressure & Temperature Rating: Rated for 200# WSP/WOG and temperatures up to 350°F, ideal for industrial and chemical service.
- Rising Stem Design: Provides clear visual indication of valve position for reliable manual operation.
- Swivel-Type Disc: Ensures uniform seating and extended seal life even under frequent cycling.
- PTFE Gasket & Packing: Delivers leak-proof performance across a wide temperature range.
- API 598 Compliant: 100% tested and inspected per API 598 for leak-tight integrity and quality assurance.
Applications
- Water, oil, and gas flow control
- Chemical and petrochemical processing
- HVAC and fluid handling systems
- Industrial and commercial piping systems
Dimensions, Cv, Weight
| Size | NPT [in] | ΦD [in] | ΦW [in] | H [in] | L [in] | Cv | Weight [lb] |
|---|---|---|---|---|---|---|---|
| ½″ | ½ - 14 NPT | 0.59 | 2.76 | 3.70 | 2.68 | 3.8 | 0.90 |
| ¾″ | ¾ - 14 NPT | 0.78 | 2.76 | 4.06 | 3.35 | 7 | 1.29 |
| 1″ | 1 - 11.5 NPT | 0.98 | 3.15 | 4.68 | 3.54 | 11 | 1.86 |
| 1¼″ | 1¼ - 11.5 NPT | 1.26 | 3.15 | 5.63 | 4.13 | 21 | 2.78 |
| 1½″ | 1½ - 11.5 NPT | 1.57 | 3.54 | 5.90 | 4.72 | 29 | 4.51 |
| 2″ | 2 - 11.5 NPT | 1.97 | 3.94 | 6.69 | 5.51 | 50 | 5.46 |
Material
| Part | Material | Specification |
|---|---|---|
| Body | Stainless Steel | ASTM A351 CF8M |
| Disc | Stainless Steel | ASTM A351 CF8M |
| Gasket | PTFE | - |
| Bonnet | Stainless Steel | ASTM A351 CF8M |
| Washer | Stainless Steel | ASTM A276 304 |
| Packing | PTFE | - |
| Gland | Stainless Steel | AISI 304 |
| Cap Nut | Stainless Steel | ASTM A276 304 |
| Stem | Stainless Steel | ASTM A276 316 |
| Handwheel | Aluminum | - |
| Handwheel Nut | Stainless Steel | A2-70 |
Pressure / Temperature Rating
| Pressure | Temperature |
|---|---|
| 200# WSP/WOG | 350°F Max Temp |
All specifications verified against Red-White Valve 880 Series spec sheet (Rev. 2024).
