Stainless Steel Grounding Hubs | Type 316 | Polished Brite Finish | Threaded Conduit Connectors
$2,004.26
Unit price
/
Select Option
Stainless Steel Grounding Hubs | Type 316 | Polished Brite Finish | Weatherproof Conduit Connectors

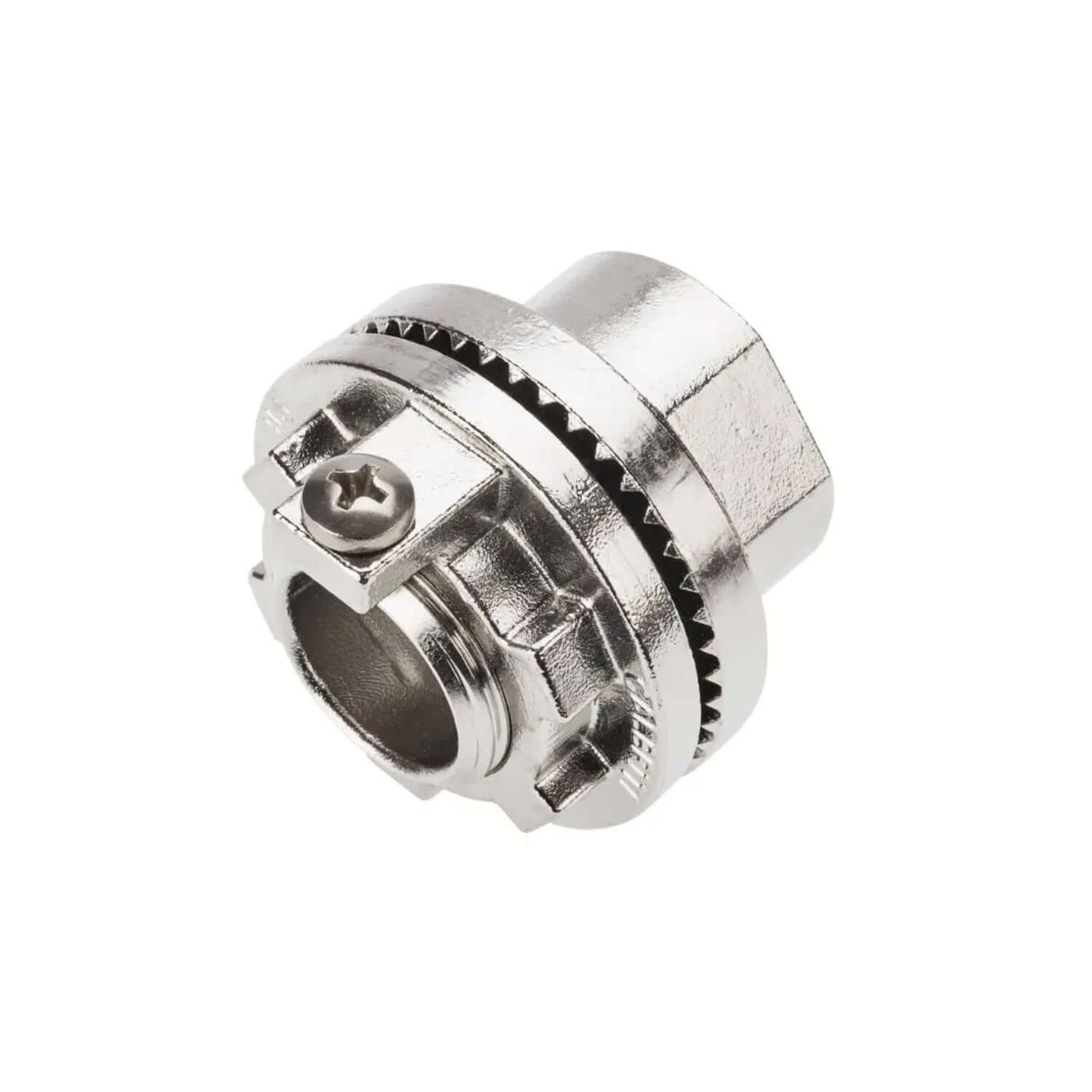

Stainless Steel Grounding Hubs provide a reliable and code-compliant solution for connecting threaded stainless conduit to threadless openings in electrical boxes or enclosures. Designed to ensure both mechanical integrity and electrical grounding, these hubs create a positive bond that meets safety standards in both indoor and outdoor installations.
Constructed from Type 316 stainless steel, these hubs deliver superior corrosion resistance and long-term strength. A neoprene O-ring ensures a watertight seal, while the included stainless steel grounding locknut provides secure and continuous grounding. The Polished Brite Finish offers a professional appearance suitable for industrial, commercial, and sanitary environments.
Key Features & Benefits
- Durable 316 Stainless Steel: Built for harsh environments where corrosion resistance and strength are essential.
- Weatherproof Design: Neoprene O-ring seal protects conduit connections from moisture, dust, and debris.
- Grounding Locknut Included: Ensures proper grounding continuity and system safety.
- Polished Brite Finish: Enhances appearance, hygiene, and resistance to surface corrosion.
Applications
- Electrical Enclosures: Grounded hub connection for conduit entering boxes and panels.
- Industrial & Marine: Suitable for corrosive or washdown environments.
- Sanitary Installations: Perfect for food processing, chemical, and pharmaceutical facilities.
Specifications
- Material: Type 316 Stainless Steel
- Finish: Polished Brite
- Seal: Neoprene O-Ring (Weatherproof)
- Includes: Stainless Steel Grounding Locknut
- Ratings: NSF/ANSI Certified
- Use: Indoor and Outdoor Applications

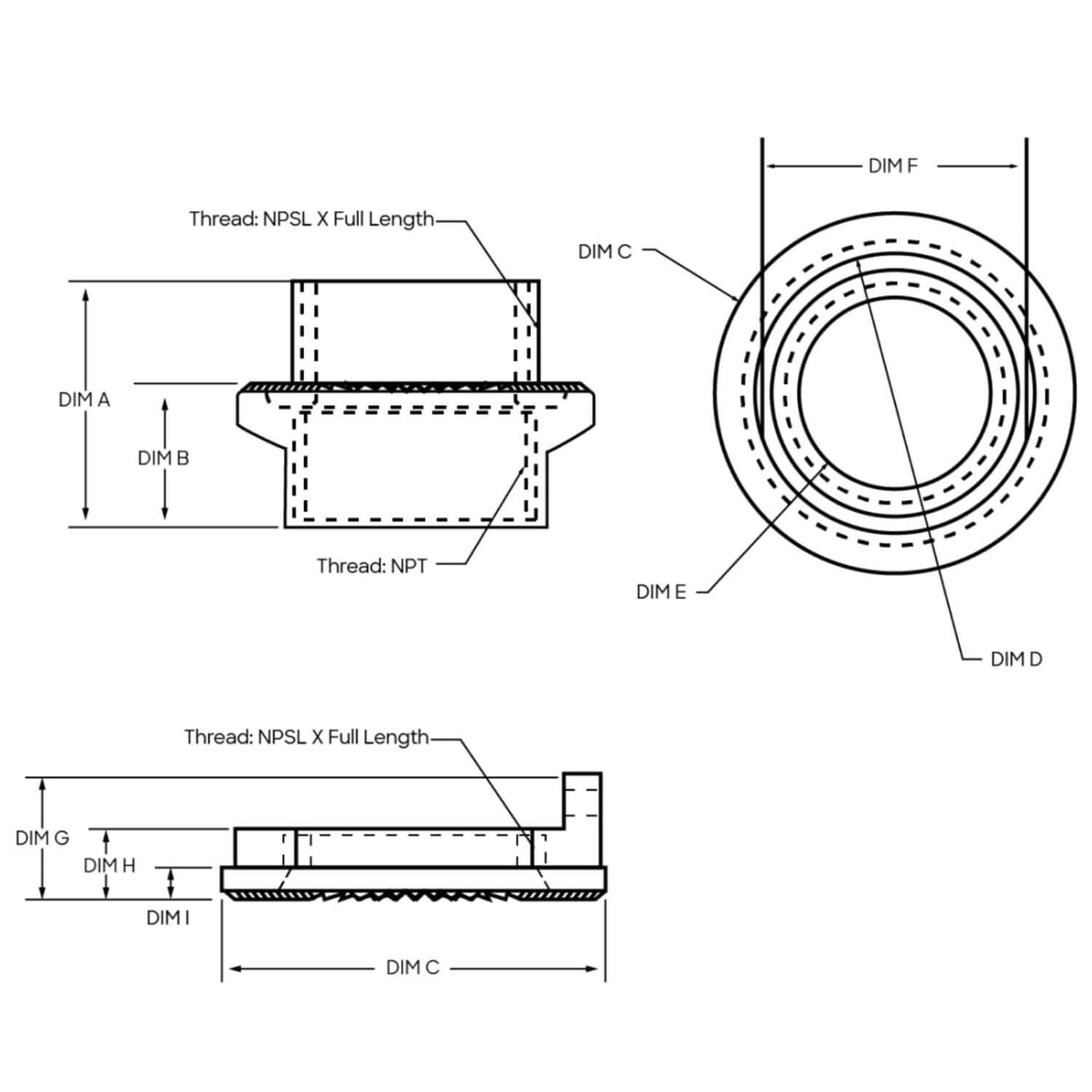

Dimensional Data
| Part Number | Trade Size (in) | A (in) | B (in) | Weight (lb/ea) | Package Qty (ea) | Package Weight (lb) |
|---|---|---|---|---|---|---|
| S60500LTV2 | ½ | 1.670 | 0.950 | 0.40 | 75 | 30.00 |
| S60700LTV2 | ¾ | 1.690 | 0.960 | 0.55 | 50 | 27.50 |
| S61000LTV2 | 1 | 2.040 | 1.120 | 0.78 | 35 | 27.30 |
| S61200LTV2 | 1¼ | 2.080 | 1.130 | 0.97 | 25 | 24.25 |
| S61500LTV2 | 1½ | 2.080 | 1.130 | 1.20 | 25 | 30.00 |
| S62000LTV2 | 2 | 2.110 | 1.140 | 1.65 | 25 | 41.25 |
| S62500LTV2 | 2½ | 2.990 | 1.520 | 2.77 | 8 | 22.16 |
| S63000LTV2 | 3 | 3.050 | 1.530 | 3.73 | 5 | 18.65 |
| S64000LTV2 | 4 | 3.150 | 1.530 | 5.25 | 2 | 10.50 |
