Stainless Steel IMC Conduit – Type 316 | Threaded & Non-Threaded | UL 1242 Listed
Stainless Steel IMC Conduit – Type 316 | Threaded & Non-Threaded | UL 1242 Listed
Stainless Steel IMC Conduit – Type 316 delivers superior performance and protection in harsh, corrosive environments such as food processing plants, chemical facilities, and marine applications. Manufactured from Type 316L stainless steel, this conduit combines lightweight handling with exceptional strength and corrosion resistance, ensuring reliable performance even in wash-down or salt-exposed settings.
The polished brite finish enhances both corrosion resistance and aesthetics, making it suitable for visible installations. Available in threaded and non-threaded configurations, this conduit provides installation flexibility and cost savings by reducing the need for additional fittings. Custom lengths up to 20 feet are available for tailored project requirements.
Key Features and Benefits
- Premium Type 316L Stainless Steel: Delivers unmatched corrosion resistance and durability for industrial, food-grade, and outdoor use.
- Threaded & Non-Threaded Options: Compatible with both compression and standard couplings for flexible installation.
- Lightweight and Cost-Efficient: Simplifies handling and reduces shipping and labor costs.
- Brite Polished Finish: Enhances appearance while increasing corrosion protection for sanitary and aesthetic applications.
- Custom Lengths Available: Offered in standard and custom-cut sections up to 20 feet for project-specific needs.
- Environmentally Friendly: Includes an Environmental Product Declaration (EPD) for sustainable construction projects.
Certifications and Compliance
- UL 1242 Listed – UL File E363502
- NSF/ANSI 169 Certified – Suitable for sanitary applications
- NEC Article 344 Compliant – ANSI/NFPA 70 approved
- EPD Available – Supports green building initiatives
Applications
- Food processing and wash-down areas
- Chemical and pharmaceutical plants
- Marine and coastal installations
- Industrial facilities requiring high corrosion resistance

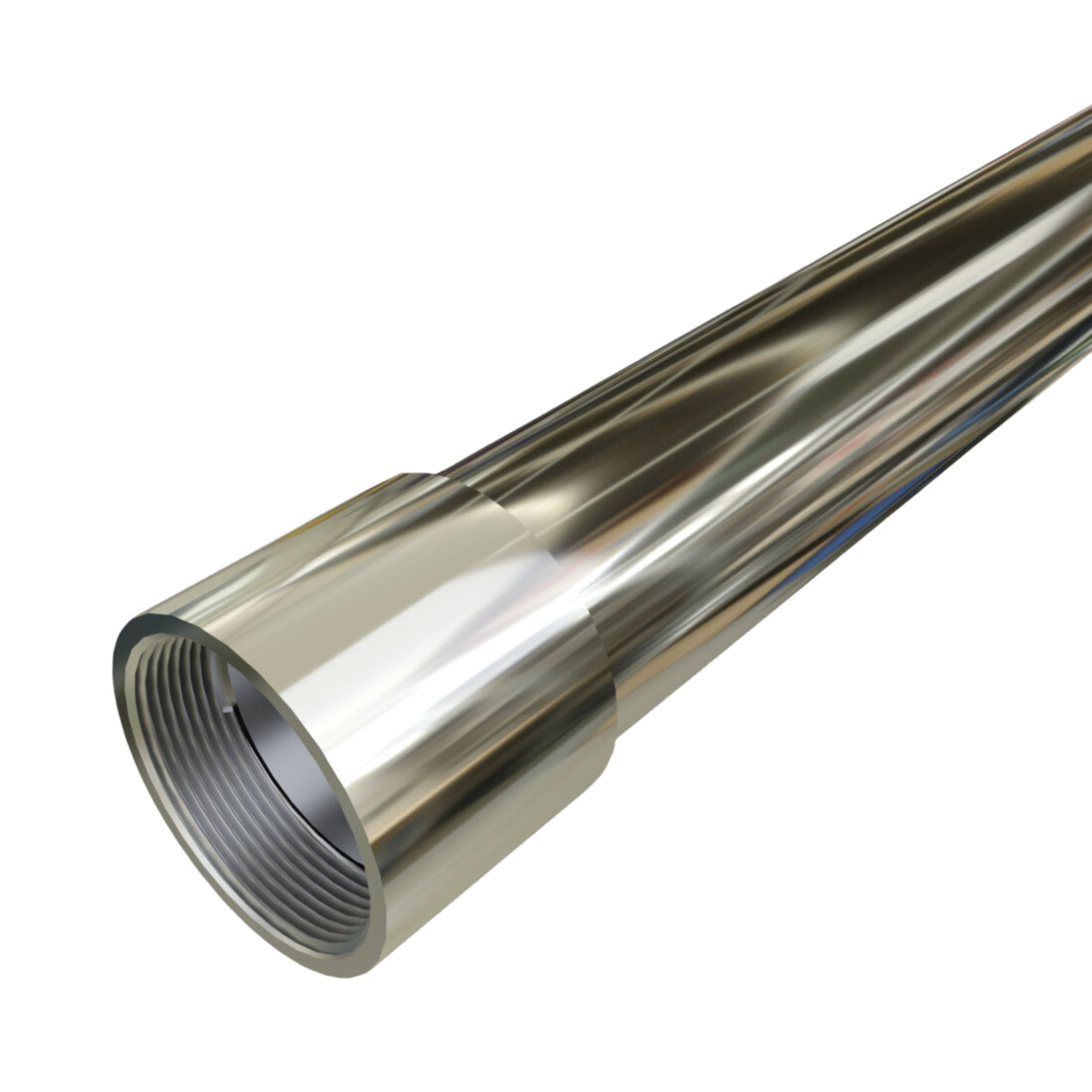

Threaded IMC Conduit

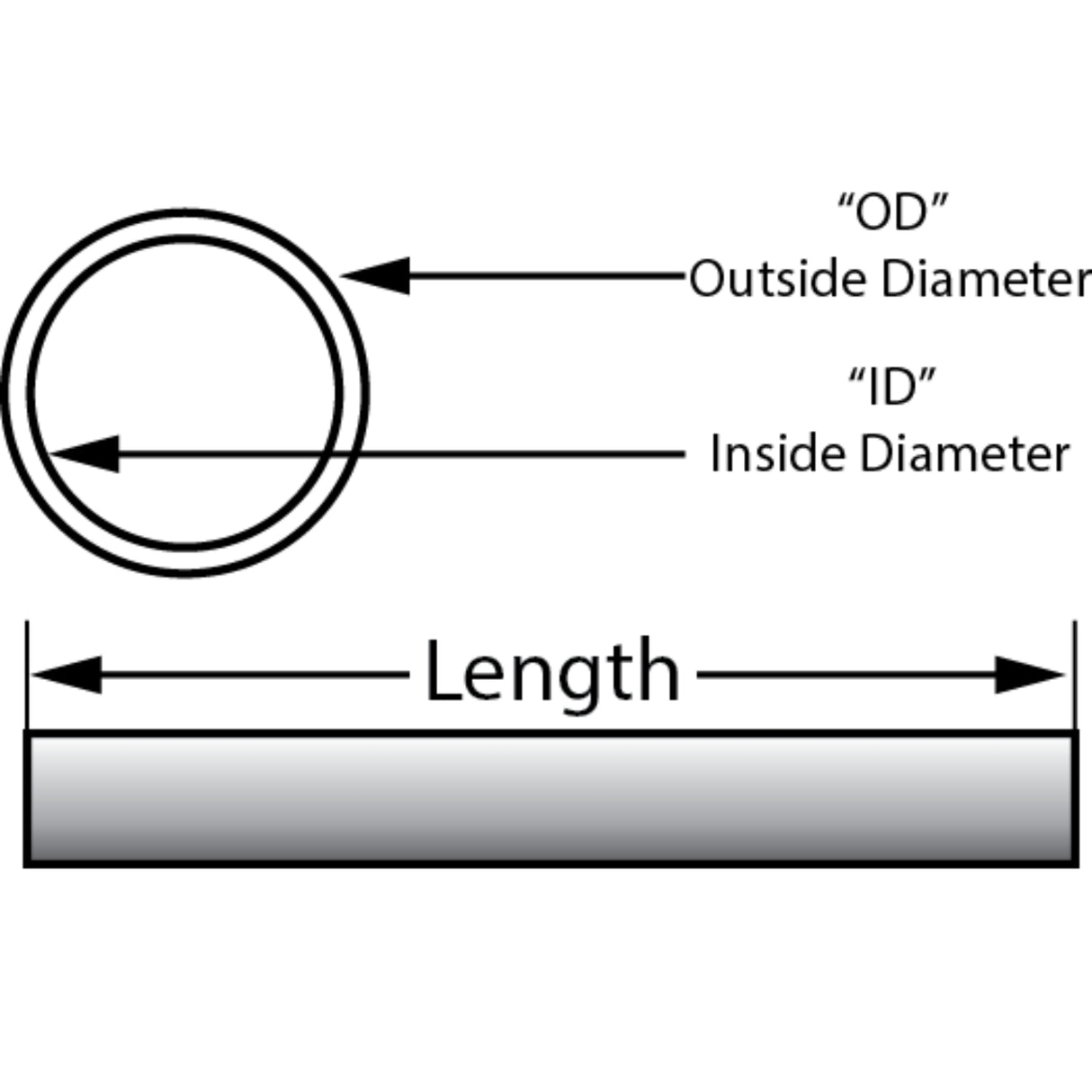

| Part Number | Trade Size (in) | Outside Diameter (in) | Inside Diameter (in) | Weight per Ft (lb) |
|---|---|---|---|---|
| S70510CTWT | ½ | 0.840 | 0.660 | 0.62 |
| S70710CTWT | ¾ | 1.050 | 0.864 | 0.84 |
| S71010CTWT | 1 | 1.315 | 1.120 | 1.19 |
| S71210CTWT | 1¼ | 1.660 | 1.442 | 1.81 |
| S71510CTWT | 1½ | 1.900 | 1.703 | 1.94 |
| S72010CTWT | 2 | 2.375 | 2.170 | 2.39 |

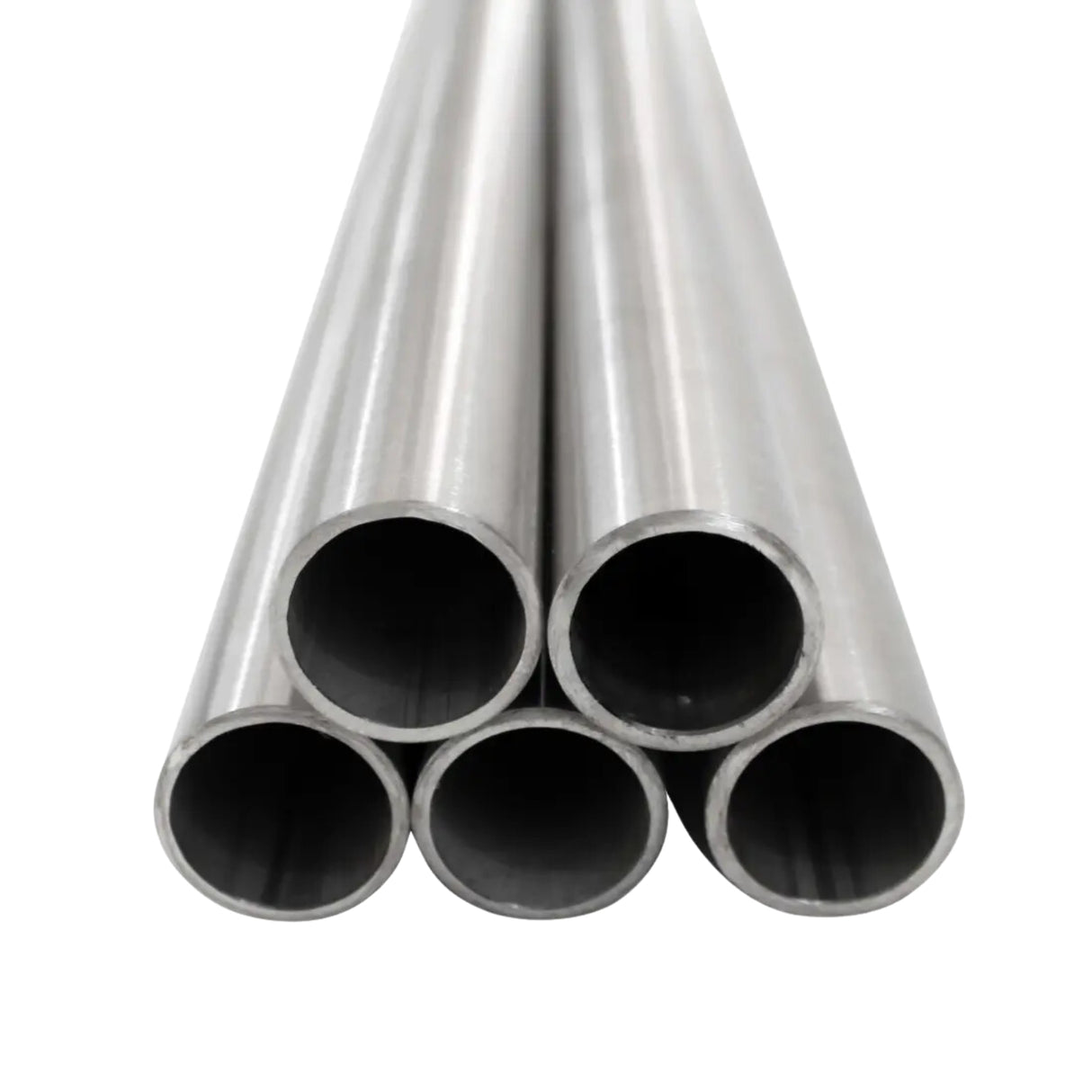

Non-Threaded IMC Conduit
| Part Number | Trade Size (in) | Outside Diameter (in) | Inside Diameter (in) | Weight per Ft (lb) |
|---|---|---|---|---|
| S70510CT00 | ½ | 0.840 | 0.660 | 0.64 |
| S70710CT00 | ¾ | 1.050 | 0.864 | 0.88 |
| S71010CT00 | 1 | 1.315 | 1.120 | 1.35 |
| S71210CT00 | 1¼ | 1.660 | 1.442 | 1.90 |
| S71510CT00 | 1½ | 1.900 | 1.703 | 2.02 |
| S72010CT00 | 2 | 2.375 | 2.170 | 2.56 |
Brand Availability
- Calbrite
