Stainless Steel Swing Check Valve | 884 Series | FNPT × FNPT | 200# WOG
$24.40
Unit price
/
Select Option

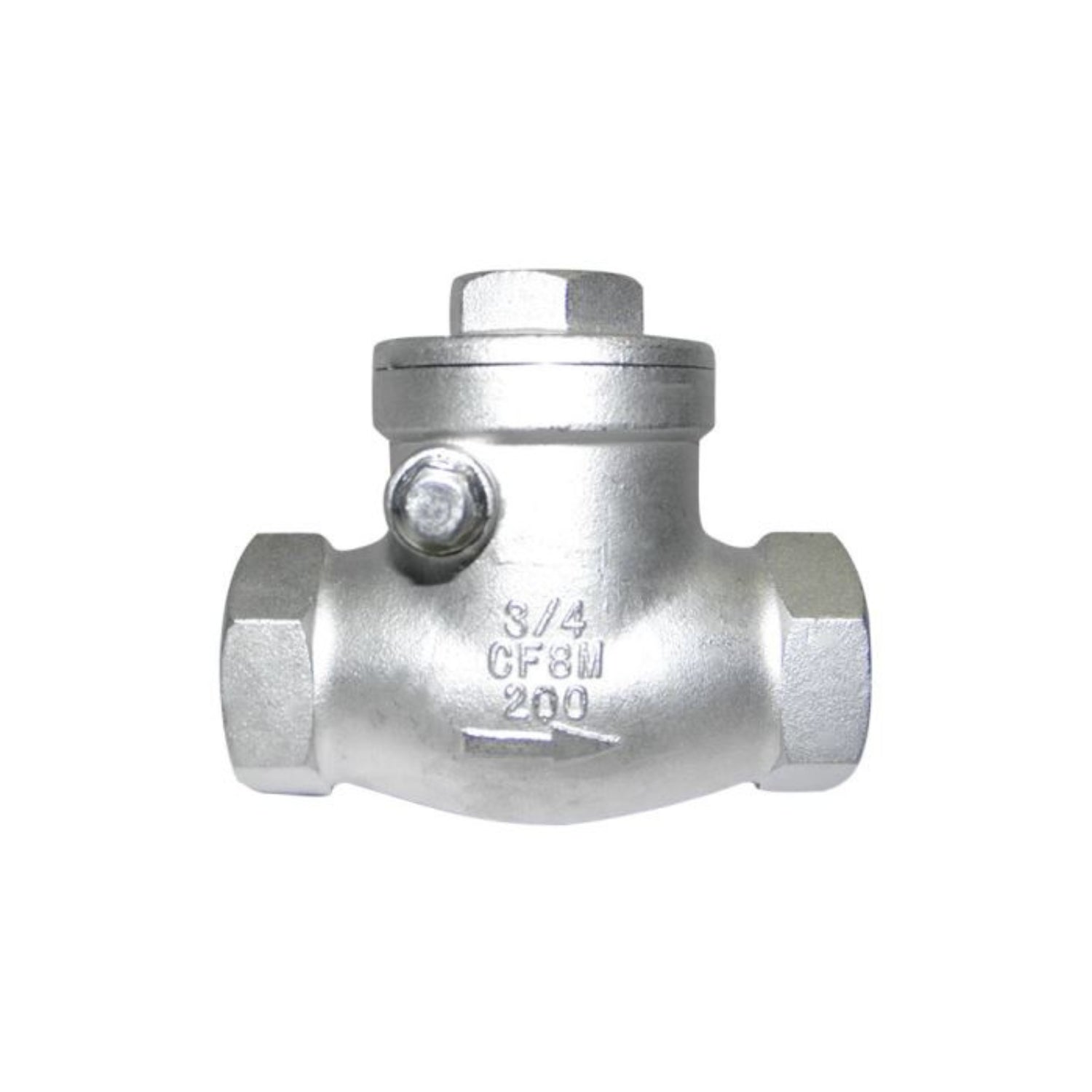

Stainless Steel Swing Check Valve | 884 Series | FNPT × FNPT | 200# WOG
884 Series Stainless Steel Swing Check Valves provide reliable backflow prevention in both residential and industrial piping systems. Constructed from A351 CF8M stainless steel, this valve ensures exceptional corrosion resistance, strength, and long-term performance under demanding service conditions.
Key Features & Benefits
- Durable Stainless Steel Construction — A351 CF8M body, cap, and disc deliver superior corrosion resistance and mechanical strength for long service life.
- Precision Components — A276-316 stainless steel plug and pin ensure dependable alignment and smooth swing operation.
- Reliable Sealing — Equipped with PTFE gaskets that provide excellent chemical resistance and leak-free performance.
- Pressure & Temperature Rated — Designed for 200# WSP / WOG service and capable of withstanding temperatures up to 350°F.
- FNPT × FNPT Ends — Standard female NPT threaded ends for simple installation and secure fit in existing systems.
Dimensions, Weights (inches-lbs.) & Valve Data
| Size | H [in] | L [in] | Weight [lb] |
|---|---|---|---|
| 1/2" | 1.73 | 2.60 | 0.60 |
| 3/4" | 2.00 | 3.15 | 1.00 |
| 1" | 2.79 | 3.55 | 1.50 |
| 1-1/4" | 2.84 | 4.14 | 2.26 |
| 1-1/2" | 2.88 | 4.73 | 3.48 |
| 2" | 3.00 | 5.56 | 5.00 |
Pressure / Temperature Rating
| Pressure | Temperature Range |
|---|---|
| 200# WSP / WOG | Up to 350°F |
Material Construction
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Stainless Steel | A351 CF8M |
| 2 | Cap | Stainless Steel | A351 CF8M |
| 3 | Disc | Stainless Steel | A351 CF8M |
| 4 | Plug | Stainless Steel | A276-316 |
| 5 | Pin | Stainless Steel | A276-316 |
| 6 | Gasket | PTFE | — |
| 7 | Gasket | PTFE | — |
Compliance: Manufactured in accordance with MSS-SP-80 standards.
Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
