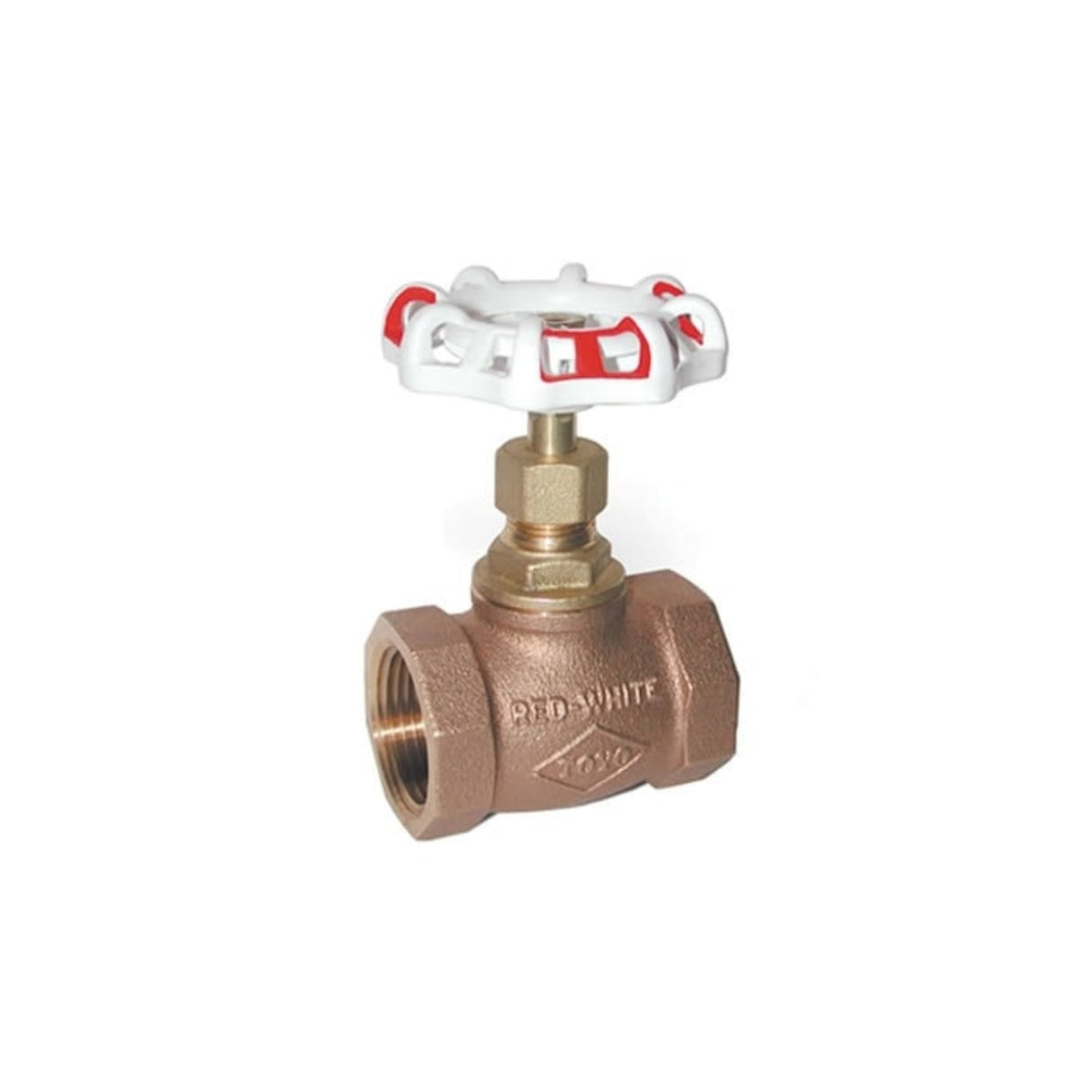

Bronze Threaded Globe Valve | 210 Series | 100 SWP / 150 WOG
$10.50
Unit price
/
Select Option
Bronze Threaded Globe Valve | 210 Series | FNPT × FNPT | 100# WSP / 150# WOG
Red-White Valve’s 210 Bronze Threaded Globe Valve provides reliable throttling and flow regulation for residential, commercial, and light industrial applications. Built from cast bronze (B62-C83600) with a swivel-type disc and precision-machined brass stem, this valve delivers consistent sealing, smooth operation, and corrosion resistance. Ideal for use in hydronic, HVAC, and water systems requiring long service life and easy installation.
Key Features & Benefits
- Pressure Rating — 100 PSI Steam (WSP) and 150 PSI Water, Oil & Gas (WOG) for dependable operation across systems.
- Cast Bronze Body & Bonnet — Manufactured from B62-C83600 bronze for superior corrosion resistance and strength.
- Swivel-Type Disc — Provides smooth shutoff, minimizing seat wear and extending service life.
- Threaded FNPT Connections — Compatible with standard ASME B1.20.1 pipe threads for quick, leak-free installation.
- DR Alloy Brass Stem — Ensures precise control and long-lasting durability under repeated use.
- Compact Design — Space-efficient profile ideal for hydronic heating, plumbing, and general-purpose systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Pressure Rating | 100# WSP / 150# WOG |
| Body & Bonnet | Cast Bronze (B62-C83600) |
| Stem | Brass (DR Alloy) |
| Disc | Brass (DR Alloy) / Bronze (B62-C83600 for 2½″ & 3″) |
| Connection Type | FNPT × FNPT (ASME B1.20.1) |
| Disc Type | Swivel Type |
| Compliance | RWV Manufacturing Standard |
Dimensions / Weights (inches-lbs.)
| Size | D | d₁ | H | L | S | Cv | Wt. [lb] |
|---|---|---|---|---|---|---|---|
| ⅜″ | 1.89 | 0.39 | 2.64 | 1.65 | 0.95 | 2 | 0.42 |
| ½″ | 2.17 | 0.47 | 2.91 | 1.89 | 1.10 | 3 | 0.53 |
| ¾″ | 2.17 | 0.59 | 3.03 | 2.09 | 1.34 | 4.5 | 0.68 |
| 1″ | 2.48 | 0.79 | 3.50 | 2.48 | 1.61 | 8.5 | 0.97 |
| 1¼″ | 2.76 | 0.98 | 4.33 | 2.87 | 1.97 | 16 | 1.61 |
| 1½″ | 3.15 | 1.26 | 5.16 | 3.23 | 2.24 | 23 | 2.36 |
| 2″ | 3.54 | 1.58 | 5.67 | 3.86 | 2.76 | 38 | 3.55 |
| 2½″ | 3.94 | 1.97 | 6.73 | 4.53 | 3.39 | 64 | 5.45 |
| 3″ | 4.92 | 2.56 | 8.11 | 5.32 | 3.94 | 93 | 9.04 |
Material Construction
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Cast Bronze | B62-C83600 |
| 2 | Bonnet | Bronze (¾″–3″) / Brass (¼″–½″) | B62-C83600 / B283-C37700 |
| 3 | Stem | Brass | DR Alloy |
| 4 | Disc | Bronze (2½″–3″) / Brass (¼″–2″) | B62-C83600 / DR Alloy |
| 5 | Lock Nut | Brass | B16-C36000 |
| 6 | Packing Nut | Brass | B283-C37700 |
| 7 | Gland | Brass | B124-C37700 |
| 8 | Gland Packing | Plastic/Graphite | T#2996NA |
| 9 | Handwheel | Aluminum Alloy (1″–3″) / Zinc Alloy (¼″–¾″) | B85-SC114A / B86-AG40A |
| 10 | Wheel Nut | Zinc Plated Steel | A36 |
| 11 | Name Plate | Aluminum | B209-1100 |
Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
