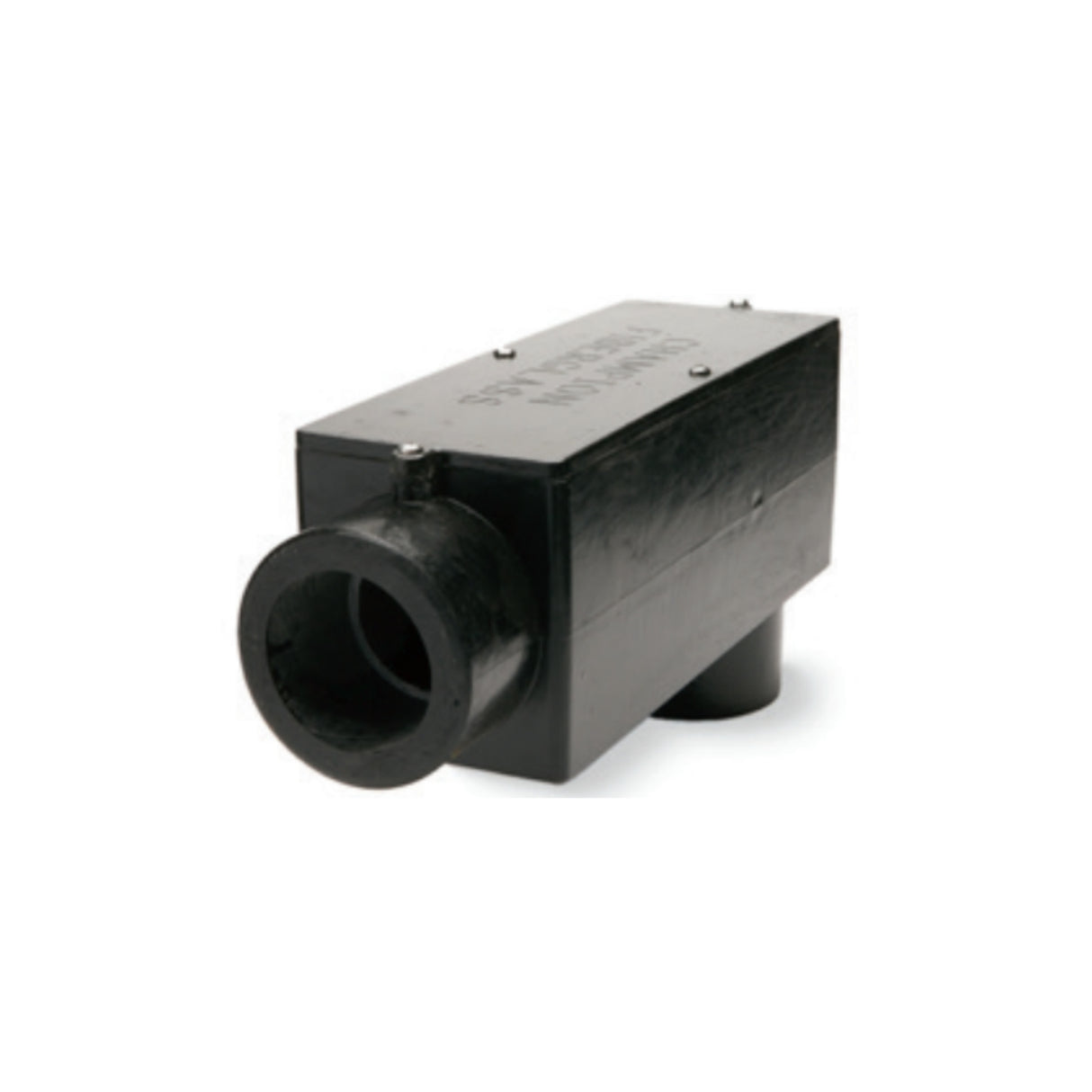

Fiberglass TYPE LB Conduit Bodies (ID) for Electrical Systems
$2,004.26
Unit price
/
Select Option
Introducing the Fiberglass TYPE LB Conduit Bodies (ID), specifically designed for electrical systems. These high-quality fiberglass conduit bodies provide a reliable and efficient solution for wiring and cable management, offering superior durability for various commercial and industrial applications.
Key Features:
- Durable Fiberglass Construction: Made from high-quality fiberglass materials, these conduit bodies are built to withstand demanding environmental conditions, ensuring long-lasting performance and reliability in any installation.
- Ease of Installation: The fiberglass LB conduit bodies are precisely designed to facilitate smooth wire pulling, allowing for easier access and maintenance, reducing installation time and labor costs.
- Various Sizes Available: Offered in sizes ranging from 2" to 4" to accommodate different conduit needs and configurations, ensuring a perfect fit for any project requirement.
-
Standardized Dimensions:
- Socket Depth: Consistent 3" socket depth across all sizes for compatibility with standard conduits.
- Nominal Sizes: Available in nominal sizes of 2", 2-1/2", 3", 3-1/2", and 4", with corresponding ID item numbers for easy identification.

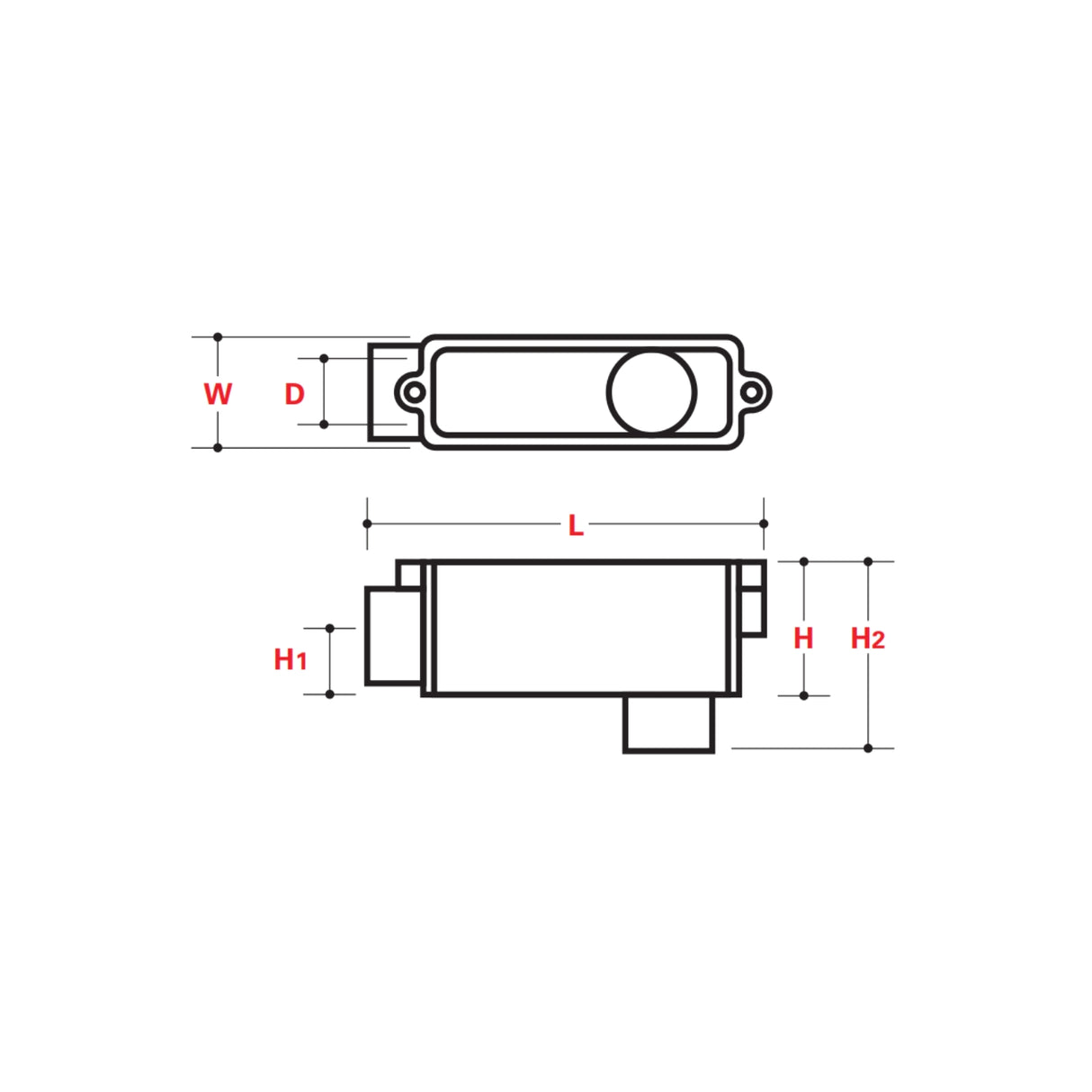

- Dimension Details: Each size comes with precise length (L), height (H), width (W), depth (D), and volume specifications for streamlined planning and installation.
Technical Specifications:
- Size & Compatibility: Ranging from 2" to 4" conduit options to accommodate varying installation needs.
- Volume Capacity: Available volumes range from 70.75 cubic inches (1,160 cm³) for smaller sizes to 425.00 cubic inches (6,964 cm³) for larger options, allowing for optimal cable space.
- Weight Considerations: Lightweight yet durable, with weights ranging from 2.50 lbs (1.13 kg) to 4.24 lbs (1.92 kg), making handling and installation easier while maintaining strength and stability.
These Fiberglass TYPE LB Conduit Bodies (ID) are ideal for directing conduit in right-angle bends while providing access points for easy cable pulling, making them a perfect choice for any electrical system. Add efficiency, durability, and convenience to your electrical projects with this versatile fiberglass conduit body option.
| SIZE | TYPE | ID ITEM NO ABOVE GROUND | L | H | W | H1 | H2 | D | VOLUME | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|
| INCH (MM) | INCH (MM) | INCH (MM) | INCH (MM) | INCH (MM) | INCH (MM) | CU IN (CM³) | LBS (KG) | |||
| 2" | SW | 20D-SW-LB | 11.75" (298) | 3.5625" (90) | 3.125" (79) | 1.75" (44) | 6.6875" (170) | 2.165" (55) | 70.75" (1,160) | 2.50 (1.13) |
| 2-1/2" | SW | 25D-SW-LB | 16.625" (422) | 4.6875" (119) | 4.6875" (119) | 2.25" (57) | 8.0625" (205) | 2.665" (68) | 70.75" (1,160) | 2.50 (1.13) |
| 3" | SW | 30D-SW-LB | 16.625" (422) | 4.6875" (119) | 4.6875" (119) | 2.25" (57) | 8.0625" (205) | 3.165" (80) | 425.00" (6,964) | 4.24 (1.92) |
| 3-1/2" | SW | 35D-SW-LB | 19.375" (492) | 5.5" (140) | 5.875" (149) | 3" (76) | 8.0625" (205) | 3.665" (93) | 425.00" (6,964) | 4.24 (1.92) |
| 4" | SW | 40D-SW-LB | 19.375" (492) | 5.5" (140) | 5.875" (149) | 3" (76) | 8.0625" (205) | 4.165" (106) | 425.00" (6,964) | 4.24 (1.92) |
