Underground Fiber Optic Cable Sheave | 24" Aluminum | Dual Tie-Off Arm — Product Overview

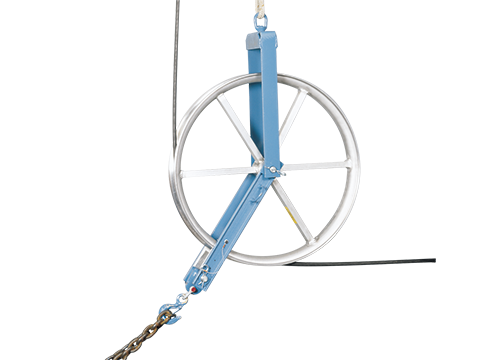

Underground Fiber Optic Cable Sheaves are precision-engineered tools designed to support safe, efficient handling of fiber optic cable during underground installation and pulling operations. Featuring a 24" (610 mm) aluminum sheave and a dual tie-off arm design, this unit helps maintain smooth cable transitions while minimizing stress on sensitive fiber lines.

Built from lightweight yet durable aluminum, this sheave is easy to handle in the field while providing long-term strength. A removable hanger arm allows fast mid-span cable loading and consistent control throughout the pull.

Key Features & Benefits

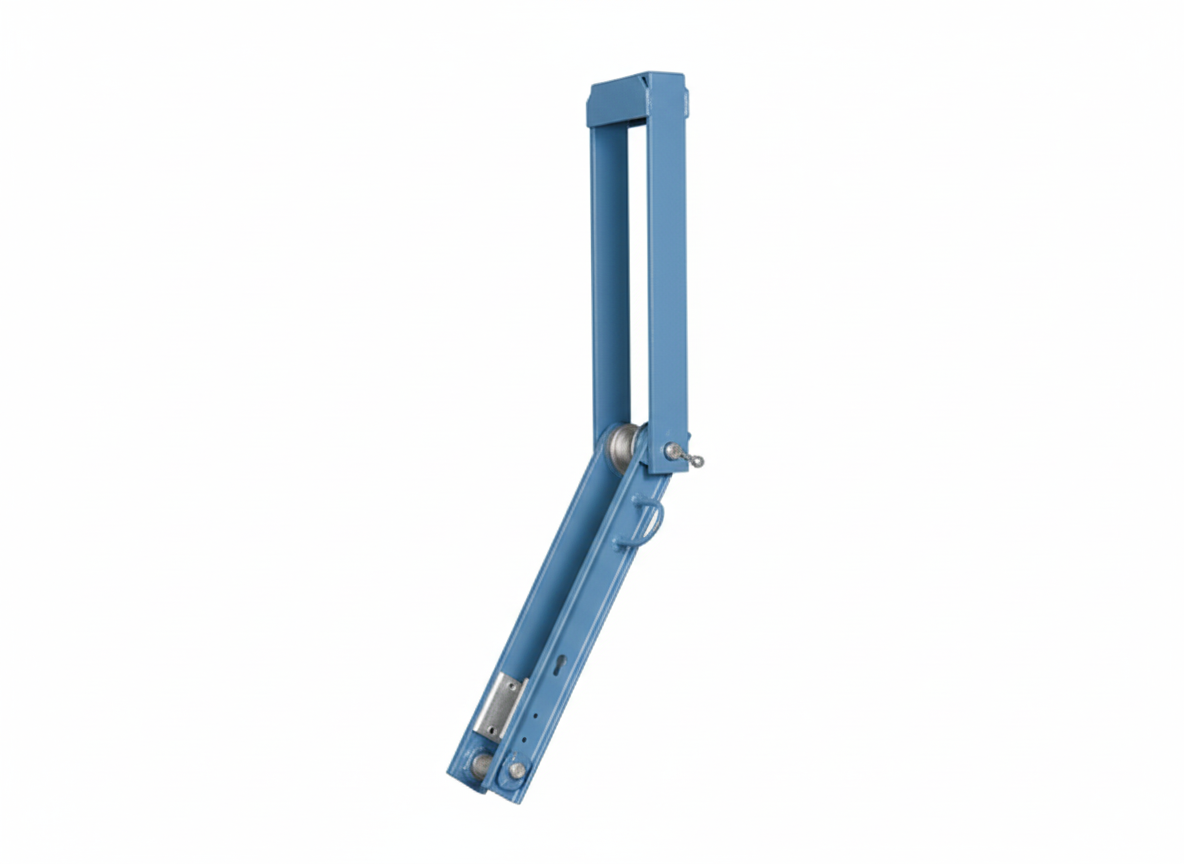

• Dual Tie-Off Arm Design – Provides an additional secure tie-off point for increased stability during underground cable pulls.
• Removable Hanger Arm – Allows quick mid-span cable insertion and removal to reduce setup time.
• Gentle Cable Arc – 24" (610 mm) sheave diameter delivers a wide bend radius to help protect fiber optic cable integrity.
• Durable Aluminum Construction – Lightweight yet rugged frame designed for repeated use in demanding jobsite conditions.
• High Load Capacity – Rated to handle up to 1,500 lbs (6,672 N) of cable tension.
• Serviceable Design – Replacement sheaves and tie-off arms are available to extend product life.

Applications

• Underground fiber optic cable pulling and routing
• Utility, telecom, and broadband installation projects
• Situations requiring controlled cable direction and reduced bend stress
