V CHECK Capacitive Voltage Detector Testing Unit | Battery Powered

V CHECK Capacitive Voltage Detector Testing Unit | Battery Powered — Product Overview

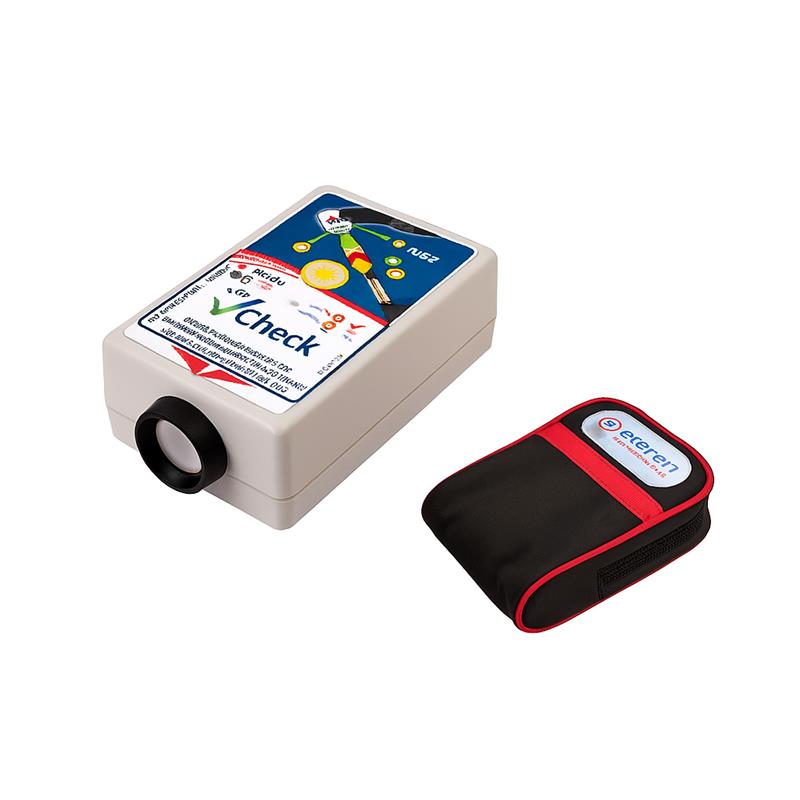

The V CHECK Capacitive Voltage Detector Testing Unit is a compact, battery-powered tool designed to verify the functionality of most capacitive voltage detectors that comply with IEC61243-1. Ideal for use before and after site operations, this device ensures your voltage detectors are working properly, even when no "known real voltage" is available.

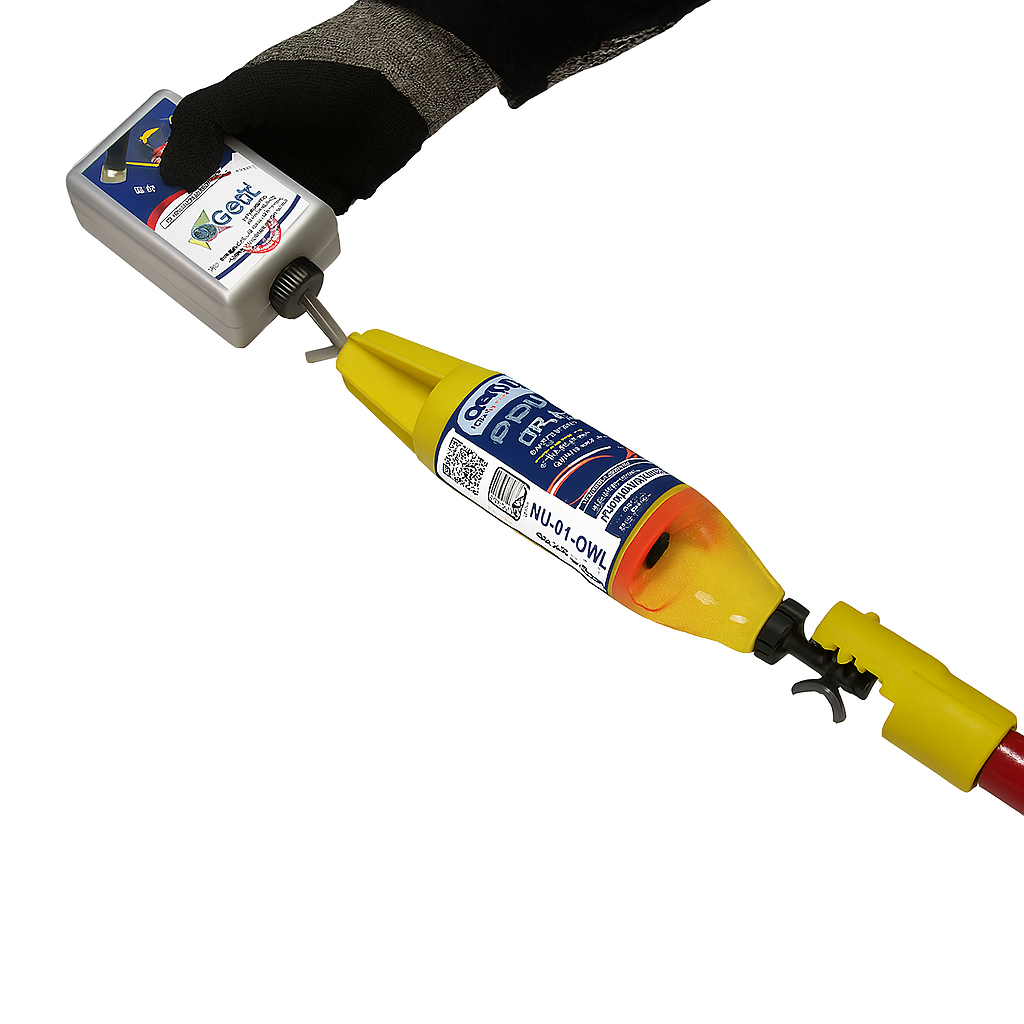

With V CHECK, you can easily confirm the performance of your MVD voltage detector or other capacitive detectors, ensuring that safety standards are met before use. Simply touch the detector’s contact electrode to V CHECK's contact point and press the button to initiate the test. The device generates high-voltage signals to test capacitive voltage detectors, providing quick and reliable results.

Key Features:

• IEC 61243-1 Compliance – Compatible with most capacitive voltage detectors.
• Easy to Use – Simple operation with touch and test functionality.
• Compact & Lightweight – Small size for easy portability and use in the field.
• Battery-Powered – Powered by 1 x 9V alkaline battery, with up to 1000 tests per charge.
• Visual Alerts – Red LED warning during tests; orange LED indicates low battery.
• Temperature Range – Functional in environments from -13°F to +130°F.
• Portable & Durable – Weighs only 0.5 lbs, making it easy to carry and use on-site.

Technical Specifications:

• Power: 1 x 9V alkaline battery
• Dimensions: 4.8" x 2.8" x 1.9"
• Weight: 0.5 lbs (without battery)
• Test Signal: High-voltage signals for accurate testing of capacitive detectors
• Temperature Range: -13°F to +130°F

Ensure the reliability of your capacitive voltage detectors with V CHECK, the perfect tool for safety checks and ongoing maintenance. V CHECK is your go-to solution for on-site and periodic testing, offering peace of mind while ensuring your equipment works properly.

V Check Chart
