DOUBLE EXPANSION JOINT WITH O-RINGS (XW) - ABOVE GROUND
$0.00
Unit price
/
Select Option
$50 minimum order required

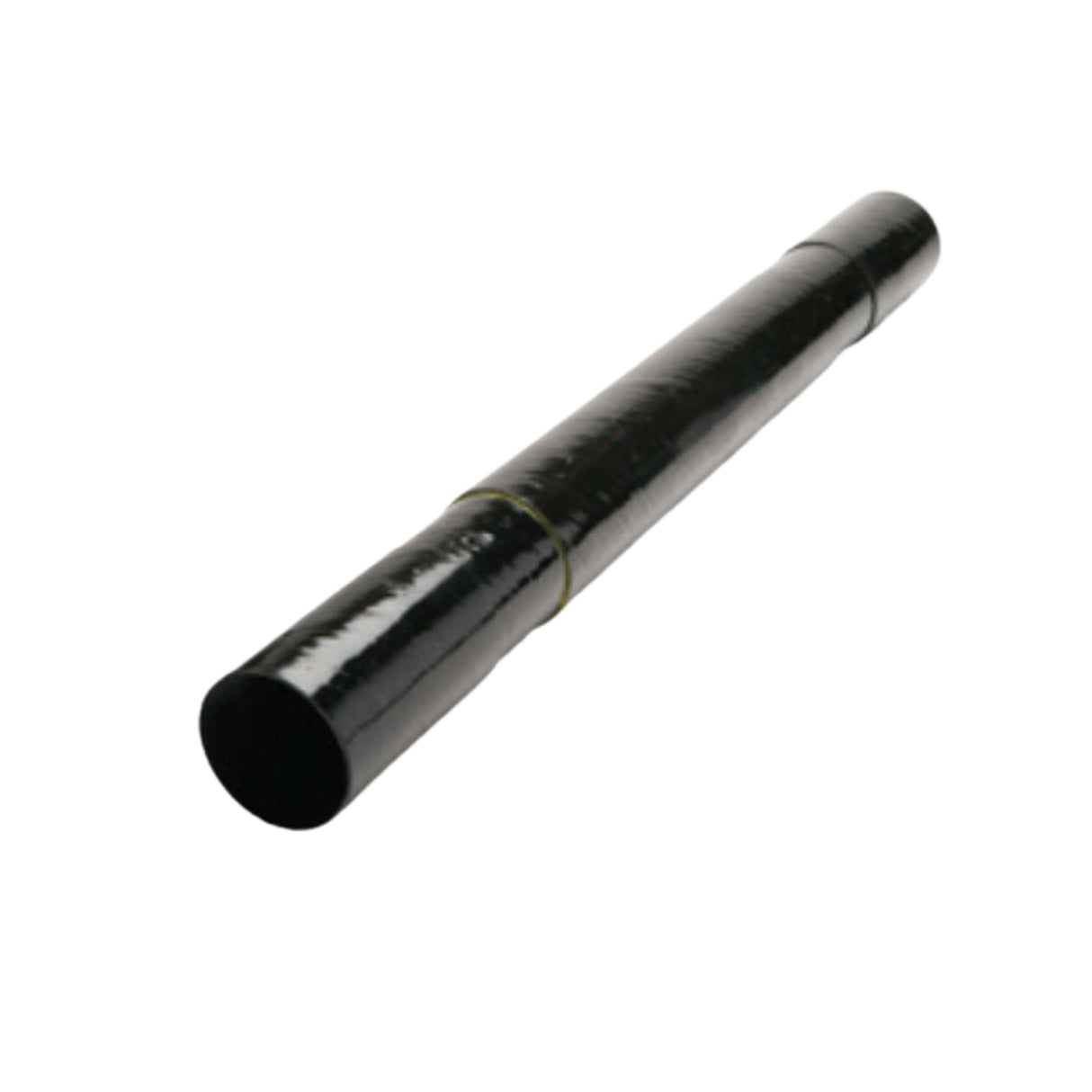

The XW Double Expansion Joint with O-Rings, also known as a "back-to-back" expansion joint, is engineered for above-ground conduit systems that require enhanced movement management. This joint provides superior expansion capabilities with the added assurance of O-rings for a secure seal, making it an essential component for conduit runs exposed to fluctuating temperatures and environmental conditions.
Applications:
- Above-Ground Conduit Installations: Ideal for outdoor or exposed conduit systems where thermal expansion must be managed effectively.
- Industrial and Utility Projects: Suitable for installations protecting fiber-optic cables and other utilities in demanding environments.
- Hazardous Locations: Effective in Class I, Division 2 settings that require impact-resistant and secure conduit solutions.
Key Features:
- Double Expansion Design: Allows for significant movement accommodation, preventing stress and damage to conduit systems.
- Integrated O-Rings: Ensures a tight, reliable seal to protect against moisture, debris, and environmental hazards.
- Heavy Wall Construction: Built with XW’s .250" thick wall for extreme durability and resistance to impact and corrosion.
- Back-to-Back Configuration: Offers flexibility to manage large-scale thermal expansion effectively.
Benefits:
- Reliable Thermal Movement Management: Safeguards conduit installations from damage caused by temperature variations.
- Enhanced Sealing with O-Rings: Provides additional protection, reducing potential leakage or infiltration and extending system lifespan.
- Long-Lasting Performance: The Extra Heavy Wall construction ensures a robust solution capable of withstanding severe conditions.
-
Versatile Use in Utility Protection: Perfect for utility companies and industrial setups aiming to protect vital infrastructure.
(ABOVE GROUND)

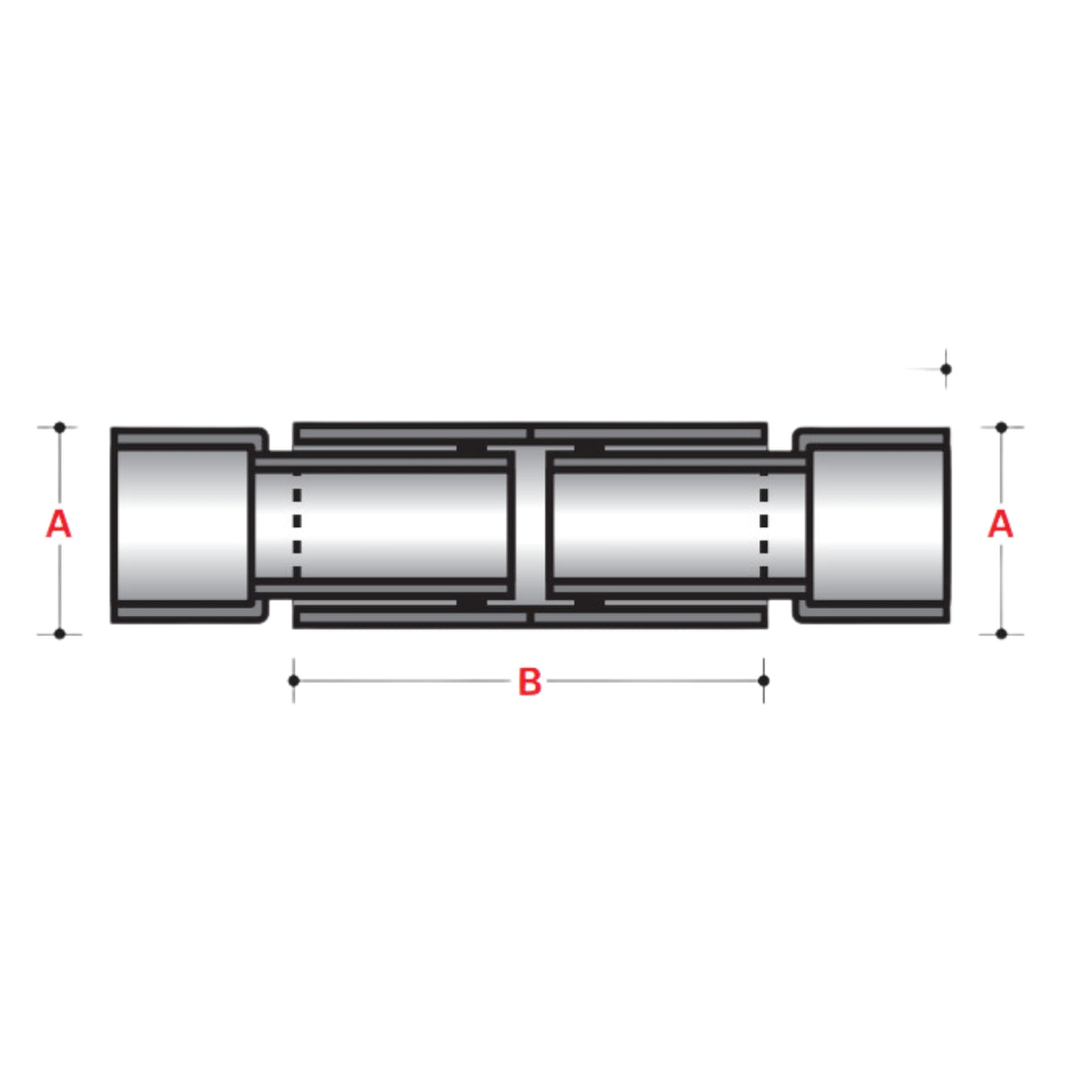

| Nominal Size | Type | Item No (ABOVE GROUND) | A | B | L - Min | L - Max | Weight (lbs) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 3/4" | XW | 07C-XW-39 | 1.935" (49) | 17" (432) | 29" (737) | 41" (1,041) | 3.01 | 1.37 |
| 1-1/4" | XW | 12C-XW-39 | 2.545" (65) | 17" (432) | 29" (737) | 41" (1,041) | 4.06 | 1.84 |
| 1-1/2" | XW | 15C-XW-39 | 2.785" (71) | 17" (432) | 29" (737) | 41" (1,041) | 5.83 | 2.65 |
| 2" | XW | 20D-XW-39 | 3.025" (77) | 17" (432) | 29" (737) | 41" (1,041) | 6.24 | 2.83 |
| 2-1/2" | XW | 25D-XW-39 | 3.525" (90) | 17" (432) | 29" (737) | 41" (1,041) | 7.63 | 3.46 |
| 3" | XW | 30D-XW-39 | 4.025" (102) | 17" (432) | 29" (737) | 41" (1,041) | 9.01 | 4.09 |
| 3-1/2" | XW | 35D-XW-39 | 4.525" (115) | 17" (432) | 29" (737) | 41" (1,041) | 10.42 | 4.72 |
| 4" | XW | 40D-XW-39 | 5.025" (128) | 17" (432) | 29" (737) | 41" (1,041) | 11.78 | 5.35 |
| 5" | XW | 50D-XW-39 | 6.025" (153) | 17" (432) | 29" (737) | 41" (1,041) | 14.55 | 6.61 |
| 6" | XW | 60D-XW-39 | 7.025" (178) | 17" (432) | 29" (737) | 41" (1,041) | 19.25 | 8.74 |
| 8" | XW | 80C-XW-39 | 9.425" (239) | 17" (432) | 29" (737) | 41" (1,041) | 26.66 | 11.63 |
