Fiberglass Socket Type End Bells for Box Termination - Smooth Cable Pulling Surface (XW)
$2,004.26
Unit price
/
Select Option

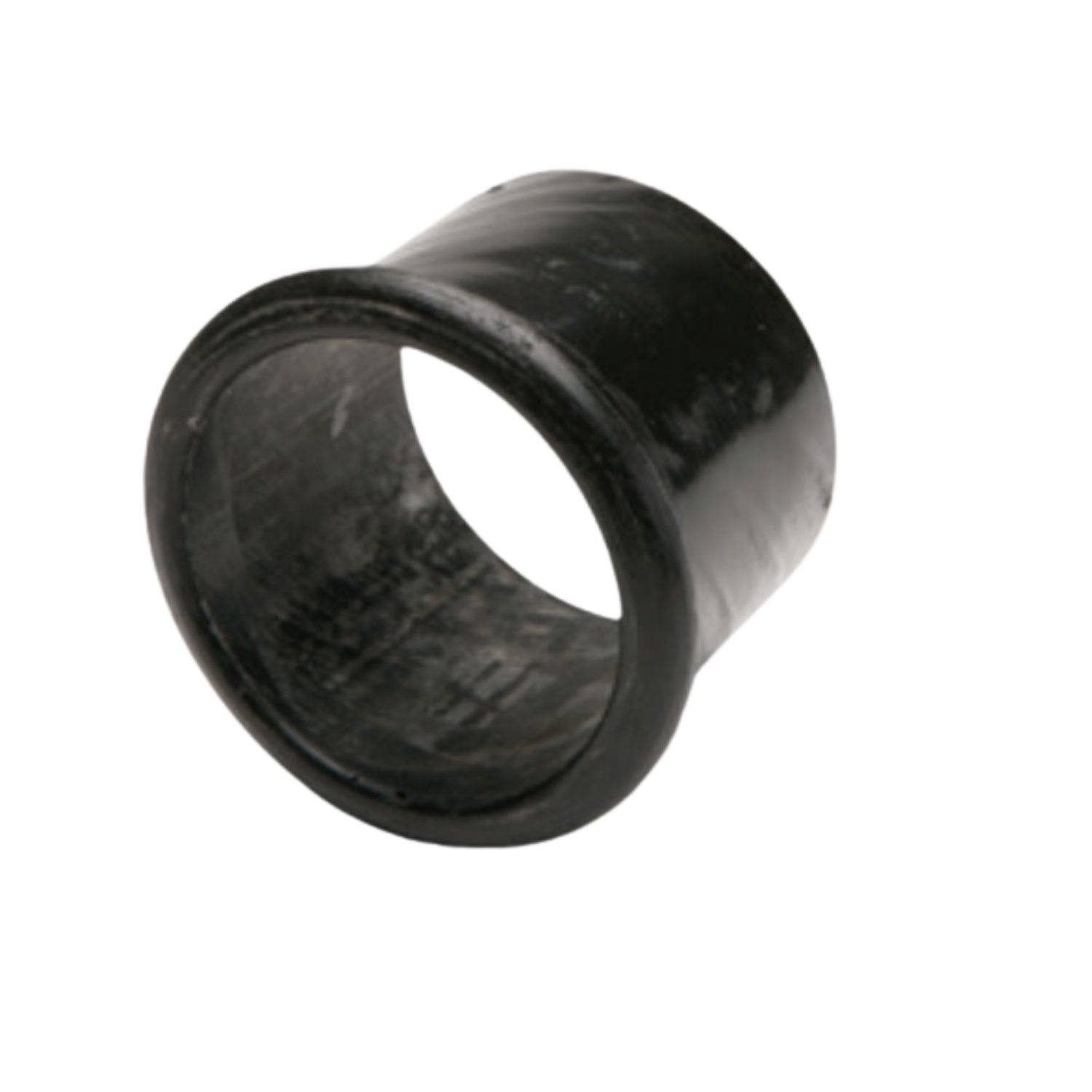

The Fiberglass XW Socket Type End Bells for Box Termination are designed to provide a secure, efficient cable termination solution for above-ground fiberglass conduit systems. These end bells feature a smooth, easy-pull surface, making them the perfect choice for creating permanent terminations into boxes, while reducing friction and wear on cables. Built to withstand high-performance environments, these end bells are paired with XW (Extra Heavy Wall) fiberglass conduit to offer robust protection and reliable performance.
Applications:
- Class I, Division 2 Hazardous Locations: Ideal for environments with potential explosive hazards, offering a safe and compliant fiberglass termination solution.
- Wastewater Treatment Plants: Provides exceptional corrosion resistance, making it suitable for harsh industrial environments exposed to fiberglass.
- Utility Applications: Protects critical fiber-optic cables in both above-ground and under-bridge installations using fiberglass conduit.
- Damage-Prone Areas: Meets NEC Article 355.10F standards, offering a fiberglass solution for areas exposed to damage and wear.
Key Features:
- Smooth Cable Pulling Surface: Minimizes friction and wear on cables, facilitating easy cable installation within fiberglass conduit systems.
- Durable Construction: Made from XW (Extra Heavy Wall) fiberglass conduit material with a .250" wall thickness for superior impact resistance.
- Straight Socket Connection: Ensures compatibility with all XW fiberglass conduit sizes for quick, reliable connections without the need for additional tools.
- Impact-Proof Design: Proven to stop a .45 caliber bullet at 20 feet, showcasing the exceptional strength and durability of fiberglass material.
Benefits:
- Long-Lasting Durability: Ideal for high-impact and hazardous environments, ensuring a long lifespan with minimal maintenance in fiberglass conduit systems.
- Safety & Compliance: Meets the rigorous standards for Class I, Division 2 hazardous locations, ensuring safe operations in critical fiberglass installations.
- Corrosion-Resistant: Ideal for environments exposed to corrosive elements, such as wastewater treatment plants, when using fiberglass conduit.
- Efficient Installation: The smooth surface design reduces installation time and cable damage, improving the efficiency of fiberglass conduit installations.
The Fiberglass XW Socket Type End Bells offer an excellent termination solution for high-performance applications, providing security, durability, and safety for critical cable systems in challenging environments.

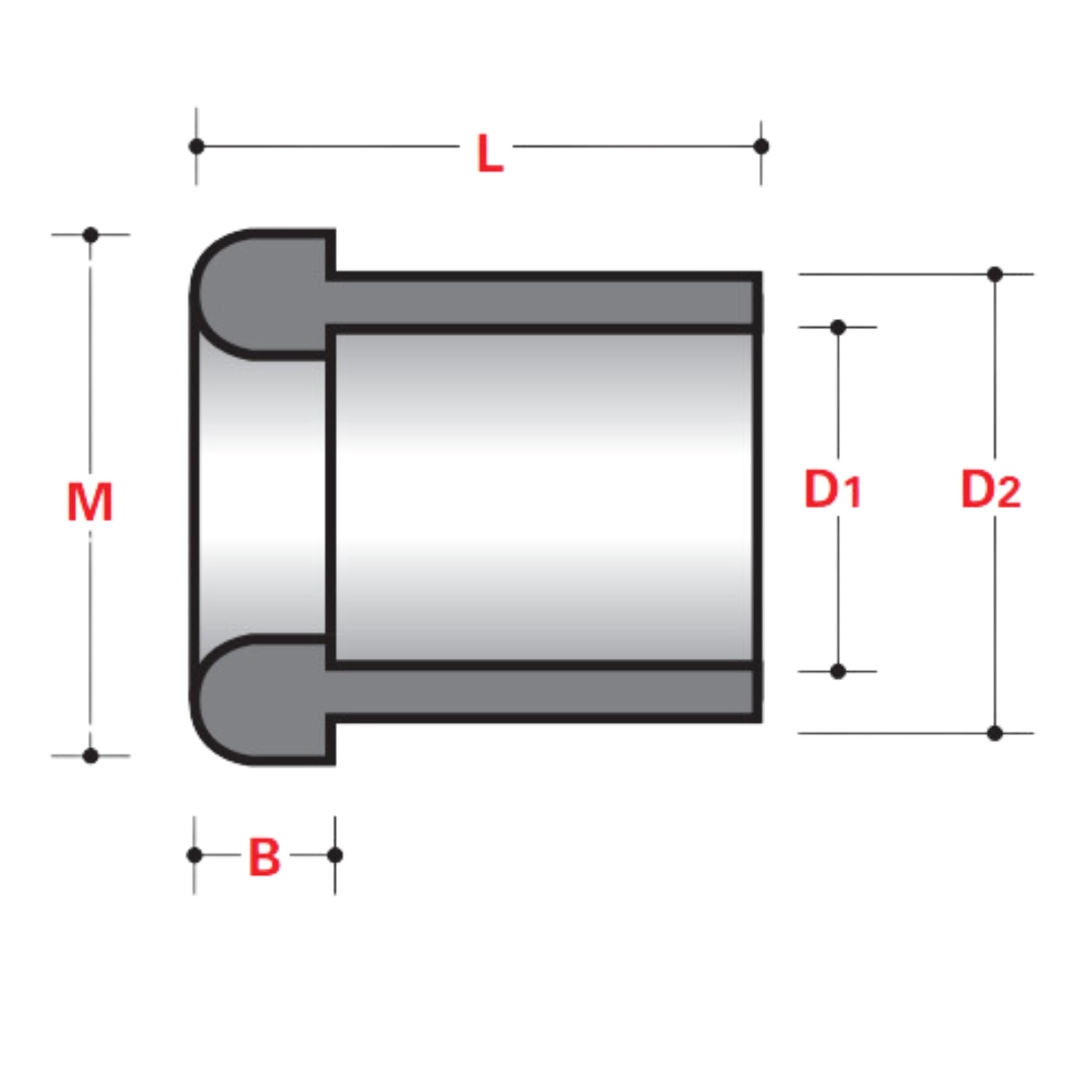

| NOMINAL SIZE | XW ITEM NO ( ABOVE GROUND) | D1 | D2 | L | M | B | WEIGHT (LBS) | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|
| 3/4" XW | 07C-XW-29 | 1.435" (36) | 1.935" (49) | 3.00" (76) | 2.48" (63) | 0.31" (8) | 0.63 | 0.28 |
| 1" XW | 10C-XW-29 | 1.700" (43) | 2.200" (56) | 3.00" (76) | 2.70" (68) | 0.31" (8) | 0.70 | 0.32 |
| 1-1/4" XW | 12C-XW-29 | 2.045" (52) | 2.545" (65) | 3.00" (76) | 3.11" (79) | 0.31" (8) | 0.85 | 0.38 |
| 1-1/2" XW | 15C-XW-29 | 2.285" (58) | 2.785" (71) | 3.00" (76) | 3.35" (85) | 0.31" (8) | 1.22 | 0.55 |
| 2" XW | 20D-XW-29 | 2.525" (64) | 3.025" (77) | 3.00" (76) | 3.62" (92) | 0.31" (8) | 1.30 | 0.59 |
| 2-1/2" XW | 25D-XW-29 | 3.025" (77) | 3.525" (90) | 3.00" (76) | 4.22" (107) | 0.31" (8) | 1.59 | 0.72 |
| 3" XW | 30D-XW-29 | 3.525" (90) | 4.025" (102) | 3.00" (76) | 4.62" (117) | 0.31" (8) | 1.90 | 0.86 |
| 3-1/2" XW | 35D-XW-29 | 4.025" (102) | 4.525" (115) | 3.00" (76) | 5.48" (139) | 0.31" (8) | 2.17 | 0.98 |
| 4" XW | 40D-XW-29 | 4.525" (115) | 5.025" (128) | 3.00" (76) | 5.62" (143) | 0.31" (8) | 2.40 | 1.09 |
| 5" XW | 50D-XW-29 | 5.525" (140) | 6.025" (153) | 3.00" (76) | 6.62" (168) | 0.31" (8) | 2.42 | 1.10 |
| 6" XW | 60D-XW-29 | 6.525" (166) | 7.025" (178) | 3.00" (76) | 7.62" (194) | 0.31" (8) | 2.50 | 1.13 |
| 8" XW | 80C-XW-29 | 8.925" (227) | 9.425" (239) | 5.00" (127) | 9.40" (239) | 0.31" (8) | - | - |
