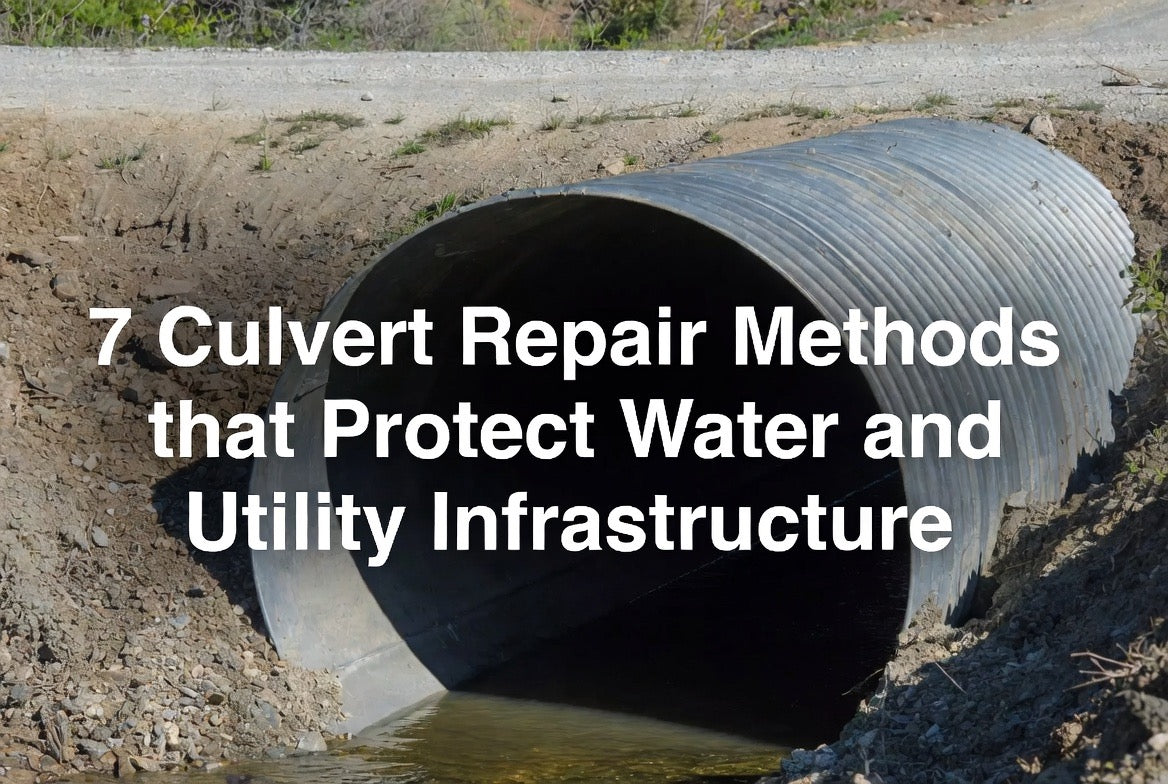

7 Culvert Repair Methods that Protect Water and Utility Infrastructure

A single failing culvert can do far more damage than most people expect. When a corrugated metal pipe corrodes through its invert or a concrete culvert joint separates under a roadway, the consequences extend well beyond poor drainage. Soil migrates through the breach, voids form around the structure, and the embankment supporting nearby utility conduit, gas lines, water mains, and sewer laterals begins to shift.

The American Society of Civil Engineers gave stormwater infrastructure a "D" grade in its 2025 Report Card, tying it with transit for the lowest rating of any sector evaluated. The EPA's 2024 wastewater infrastructure needs assessment estimated $630 billion in required investment over 20 years, a 45% increase from its 2016 estimate. Many of the culverts carrying stormwater under roads and rail lines across the country were installed 50 to 75 years ago and are approaching or past their intended service life.

The good news is that most deteriorating culverts can be rehabilitated rather than fully replaced. Culvert repair methods have advanced significantly, and many trenchless options reduce cost, traffic disruption, and risk to adjacent utilities. This guide covers seven proven methods and explains how each one protects the broader underground infrastructure surrounding the culvert.

Why Failing Culverts Threaten More Than Drainage

Underground utility corridors are crowded. Water mains, sewer lines, gas pipes, electrical conduit, and telecommunications cable often run within a few feet of stormwater culverts beneath roadways. When a culvert fails, the damage rarely stays contained.

Joint separations allow water to infiltrate the surrounding soil, washing fine particles into the culvert and leaving voids behind. These voids undermine the support for adjacent utility lines, causing settlement, joint stress, and potential breaks. A corroded invert allows flow to erode the bedding material beneath the culvert, which can propagate laterally and destabilize utility trenches running parallel to the crossing.

Road washouts caused by catastrophic culvert failure expose buried utilities to traffic loads, weather, and mechanical damage they were never designed to withstand. Even partial failures create sinkholes that disrupt utility service and require emergency excavation, often in conditions where accurate utility location is difficult.

The repair method you choose should account for not only the culvert itself but also the condition of the surrounding soil and the proximity of other buried infrastructure.

How to Assess a Culvert Before Choosing a Repair Method

Every culvert repair project starts with a thorough inspection. The condition of the structure determines which methods are viable and which are not.

Visual inspection of the inlet, outlet, and any accessible interior sections identifies obvious problems: corrosion, joint separation, invert loss, deflection, cracking, and sediment accumulation. For culverts too small or too long for safe entry, closed-circuit television (CCTV) inspection provides detailed footage of interior conditions.

Condition ratings typically fall into three categories of deficiency. Structural problems include wall perforation, loss of cross-section, excessive deflection, and collapse. Hydraulic problems involve inadequate capacity, scour at inlets and outlets, and flow obstruction. Joint problems include separation, offset, and infiltration that leads to soil migration.

The inspection determines whether the culvert is a candidate for rehabilitation or requires full replacement. As a general rule, if the culvert retains its basic shape and at least 50% of its wall section, rehabilitation is usually feasible. If the structure has collapsed, lost its shape entirely, or lacks the hydraulic capacity to handle current flow demands, replacement is the better path.

Method 1: Sliplining

Sliplining is the most widely used trenchless culvert repair method among state and county DOTs. The process involves inserting a new, smaller-diameter pipe into the existing culvert and grouting the annular space between the two pipes.

Liner materials include HDPE, PVC, fiberglass reinforced plastic (FRP), corrugated metal, and smooth-wall steel. HDPE is the most common choice for its chemical resistance, flexibility, and smooth interior surface. The smooth walls of an HDPE slipliner often compensate for the reduced diameter by improving hydraulic efficiency compared to the original corrugated pipe.

Slipliners can be installed as continuous lengths fused above ground and pulled through the host pipe, or as segmented sections that snap or bolt together inside the culvert one piece at a time. Segmental sliplining works well where access is limited or the culvert alignment includes curves.

Low-density cellular concrete is the preferred grout for filling the annular space, though flowable fill is used in some applications. The grout locks the liner in place and transfers loads from the host pipe to the new structure.

Design life for a properly installed slipliner is typically 50 to 100 years, depending on material selection and installation quality. The method is cost-effective, minimally disruptive to traffic, and keeps the host pipe in place, which protects surrounding soil and adjacent utilities from disturbance.

Method 2: Cured-in-Place Pipe (CIPP) Lining

CIPP lining creates a jointless, structural pipe within the existing culvert. A flexible tube saturated with thermoset resin (typically polyester, vinyl ester, or epoxy) is inserted into the culvert, inflated against the interior walls, and cured using hot water, steam, or ultraviolet light.

Once cured, the liner forms a tight-fitting pipe that seals all joints, cracks, and perforations in a single installation. Because CIPP conforms closely to the host pipe, it preserves more of the original diameter than sliplining. No annular space grouting is required.

CIPP is well suited for culverts with bends, varying cross-sections, or conditions where minimizing diameter reduction is critical for hydraulic performance. It works on pipe diameters from 4 inches to over 100 inches.

There are important environmental considerations with CIPP installations. Research from Virginia DOT and others has documented that uncured resin and curing byproducts can cause aquatic toxicity if released into waterways. Proper containment of curing water and condensate is essential, and many agencies now require environmental protection plans as part of CIPP specifications. Workers entering culverts during CIPP preparation must follow confined space protocols and should have access to proper safety equipment, including manhole guard rails with safety shields at entry points.

Method 3: Invert Paving and Patching

When deterioration is limited to the bottom of the culvert and the upper walls and crown remain structurally sound, invert paving offers a cost-effective partial repair. This method is most common in corrugated metal culverts where the invert has corroded while the rest of the structure is intact.

The process begins with diverting flow and cleaning loose debris and corrosion products from the invert. A layer of welded wire fabric or steel reinforcement mesh is placed in the invert and secured to the existing culvert bottom. Concrete is then placed over the corrugation crests to a typical thickness of 2 to 4 inches. The surface is troweled smooth to match the geometry of the original invert, and the edges are sealed with mastic or asphalt emulsion.

Invert paving is generally limited to culverts 36 inches in diameter or larger, since workers need physical access to place reinforcement and finish concrete. The method does not address wall or crown deterioration, so it is strictly a targeted repair for bottom-only damage.

For smaller spot repairs on culvert walls, patch-and-coat methods use high-strength repair mortar or epoxy compounds to fill localized cracks, spalls, and perforations. The damaged area is cleaned, a bonding agent is applied, and the repair material is placed and finished. Fiber-reinforced concrete or polymer-modified mortars provide additional durability in aggressive environments.

Method 4: Joint Sealing and Internal Banding

Joint separation is one of the most common problems in precast concrete culverts. Freeze-thaw cycles, embankment settlement, heavy traffic loads on low-fill installations, and faulty original installation all cause pipe sections to pull apart over time. Once a joint opens, soil migrates into the culvert, voids develop behind the pipe, and the road surface above begins to settle.

Internal banding addresses this problem without excavation. Galvanized steel bands are placed in overlapping halves at the separated joint and expanded outward using bolts. A sealing material, typically an EPDM rubber gasket, is compressed between the band and the concrete pipe to create a watertight seal.

This method is low-cost, does not disturb pavement or traffic, and can be performed by an agency's own maintenance crew. It stops soil infiltration immediately and prevents the progressive void formation that threatens adjacent utility lines.

For conduit and pipe connections near culvert joint repairs, Polywater segmented EPDM Mec Seals provide reliable watertight sealing where utility conduit penetrates structures or transitions between environments. Maintaining seal integrity at every connection point reduces the risk of water migration that undermines both the culvert and the utilities around it.

Method 5: Spray-Applied and Spin-Cast Linings

Spray-applied and spin-cast linings restore the interior surface of deteriorated culverts using cementitious grout, mortar, or polymer coatings. These methods provide corrosion protection, seal minor cracks and joint gaps, and add structural capacity to the existing pipe wall.

Spin casting uses a precisely controlled rotary applicator that is inserted into the culvert and withdrawn at a calculated speed. The process deposits thin, uniform layers of high-strength cementitious material that bond tightly to the original substrate. Pipes from 30 inches to 120 inches in diameter can be lined this way, making spin casting particularly effective for large-diameter culverts where CIPP material costs become significant.

Spray-applied polyurethane and epoxy coatings are used for smaller culverts or situations where chemical resistance is more important than structural reinforcement. These coatings seal the pipe surface against infiltration and provide a barrier against further corrosion but offer limited structural contribution.

Both methods preserve nearly all of the original hydraulic capacity since the lining thickness is minimal compared to sliplining or CIPP.

Method 6: Void Filling and Soil Stabilization

When culvert leaks have already caused soil erosion and void formation behind the pipe walls, repairing the culvert alone is not enough. The voids must be filled and the surrounding soil stabilized to restore embankment integrity and protect adjacent utilities.

Pressure grouting using low-viscosity polyurethane foam, cementitious grout, or controlled-density fill is injected through ports drilled through the culvert wall or from the surface above. The material fills existing voids, densifies loose soil, and creates a stable envelope around the culvert that prevents further settlement.

This method is particularly important where utility conduit runs parallel to or crosses over the culvert. Voids beneath a roadway can undermine the bedding support for electrical conduit, water lines, and gas pipes, causing joint stress and eventual failure. Stabilizing the soil around a deteriorating culvert protects these adjacent systems from collateral damage.

Void filling is often performed as a preparatory step before sliplining or CIPP installation, since the host pipe needs stable bedding support to carry loads properly after rehabilitation.

Method 7: Full Replacement with Proper Utility Protection

When a culvert has collapsed, lost its shape, or lacks the hydraulic capacity for current demands, full replacement is the only viable option. Replacement can be performed by open-cut excavation or by trenchless methods such as pipe jacking or microtunneling.

Open-cut replacement requires excavating down to the culvert, removing the failed structure, preparing new bedding, installing the replacement pipe, and backfilling. This method disrupts traffic, exposes adjacent utilities, and requires careful coordination with utility owners to avoid damage during excavation. Calling 811 before digging is mandatory, but field verification of utility locations is equally important since not all installations are documented accurately.

Trenchless replacement methods reduce surface disruption and minimize risk to adjacent utilities. Pipe bursting, which fractures the old pipe while pulling a new one into place, works well for smaller culverts but is generally not recommended for corrugated metal pipes due to the difficulty of breaking corrugated walls and the risk of displacing fragments into surrounding soil near utility lines.

Regardless of the replacement method, the new installation should use durable materials appropriate for the soil and water chemistry at the site. PVC rigid conduit and aluminum rigid conduit protect electrical and communications lines running near culvert crossings. 316 stainless steel compression connectors maintain joint integrity in corrosive underground environments where standard fittings degrade. Fiberglass end caps with gaskets seal conduit openings against water and soil intrusion during and after construction, and stainless steel conduit clamps secure conduit runs against movement from backfill settlement or vibration.

Comparing Culvert Repair Methods

How Material Selection Supports Long-Term Culvert Performance

The materials used in both the culvert rehabilitation and the utility conduit systems surrounding it determine how long the repair holds up. Corrosion, chemical attack, abrasion, and UV exposure all degrade materials over time, and selecting the wrong product for the environment accelerates failure.

For culvert liners, HDPE offers excellent chemical resistance and a service life exceeding 50 years in most soil and water conditions. Fiberglass reinforced plastic (FRP) handles high-temperature and chemically aggressive environments. Steel liners provide maximum structural capacity but require protective coatings in corrosive soils.

For the utility conduit and fittings installed near culvert crossings, material selection is equally important. Type 316 stainless steel resists the chloride exposure common in roadway environments where deicing salts are used. PVC Schedule 40 conduit provides a durable, corrosion-proof raceway for electrical conductors in direct-burial applications. Proper sealing at every joint and termination prevents the water infiltration that accelerates deterioration of both the conduit system and the surrounding soil.

About Utility Pipe Supply

Utility Pipe Supply has served contractors, utilities, and engineering firms since 1997 with a full inventory of conduit, fittings, sealing products, safety equipment, and installation tools for underground infrastructure projects. As a certified WBE/DBE/FBE, the company delivers reliable products and responsive service to keep projects safe, compliant, and on schedule.

Frequently Asked Questions

Is it cheaper to repair a culvert or replace it?

Rehabilitation is typically 30% to 50% less expensive than full replacement for culverts that retain their basic shape and structural capacity. Sliplining and CIPP avoid the excavation, paving, and traffic control costs that drive up replacement budgets. However, if the culvert has collapsed or needs a capacity upgrade, replacement is the more cost-effective long-term investment.

How long does a culvert repair last?

Service life depends on the method and materials. Sliplining with HDPE is typically designed for a 50- to 100-year service life. CIPP liners are designed for a minimum of 50 years when properly installed. Invert paving and spray-applied coatings generally last 20 to 40 years depending on flow conditions and water chemistry. Joint sealing with internal bands provides 15 to 25 years of effective service before resealing may be needed.

Can culverts be repaired without digging?

Yes. Sliplining, CIPP lining, spray-applied coatings, spin casting, joint banding, and void filling are all trenchless or minimally invasive methods that do not require excavation of the culvert itself. These methods are particularly valuable in locations where excavation would disrupt traffic or risk damage to adjacent buried utilities.

How do culvert repairs protect nearby utility lines?

Culvert rehabilitation stops the water infiltration and soil migration that create voids around buried infrastructure. When soil washes into a failing culvert, the resulting voids undermine the bedding support for nearby water mains, sewer laterals, gas lines, and electrical conduit. Sealing the culvert and stabilizing the surrounding soil prevents this chain of collateral damage.

How often should culverts be inspected?

Most DOTs follow a 3- to 5-year inspection cycle for culverts in good or fair condition. Culverts rated in poor condition should be inspected annually. Any culvert showing signs of joint separation, significant corrosion, or pavement distress above the structure should be inspected promptly regardless of the regular schedule.

What culvert materials last the longest?

Reinforced concrete pipe has a design life of approximately 100 years in non-aggressive soil and water conditions. HDPE and PVC culverts offer 75- to 100-year service life with strong resistance to corrosion and chemical attack. Corrugated metal pipe typically lasts 25 to 75 years depending on gauge, coating, and environmental exposure, with thinner gauges and uncoated steel at the lower end of that range.
