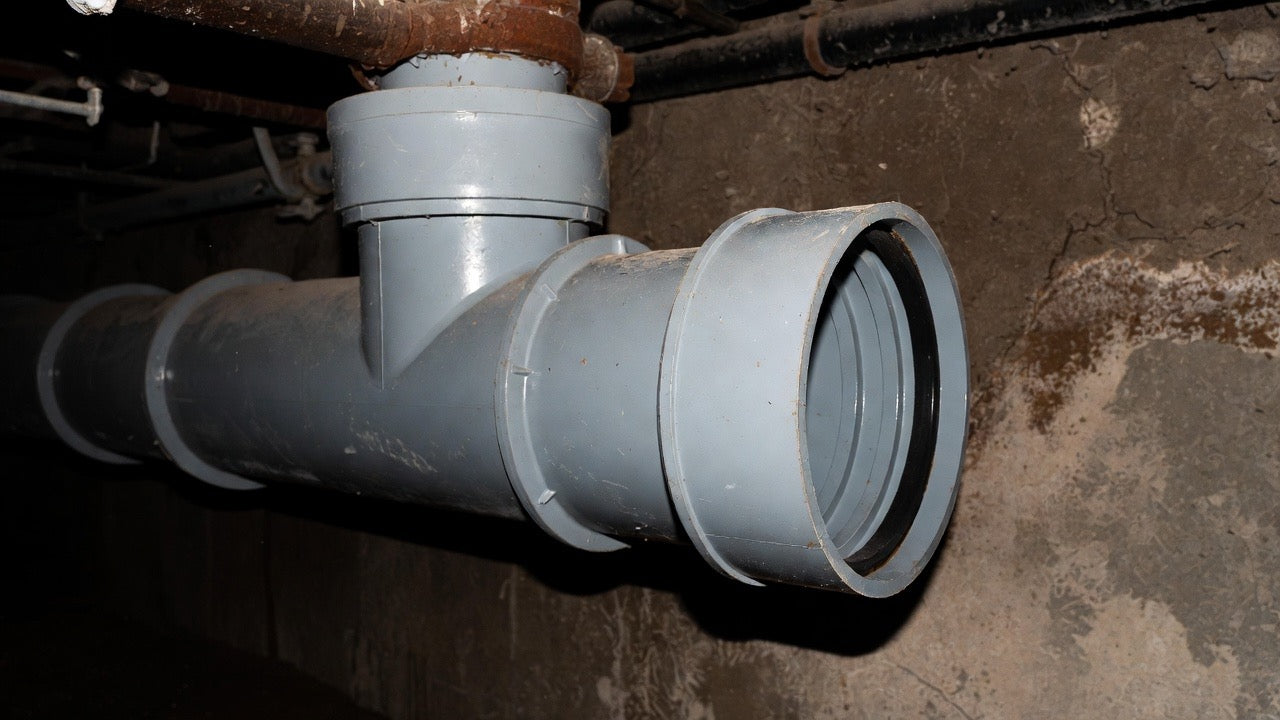

What Is the Use of DWV Pipe in Municipal Sewer and Utility Construction Projects?

Drain, waste, and vent (DWV) pipe is a category of piping designed specifically for drain, waste, and vent systems. While most people associate DWV pipe with residential plumbing, it plays an equally critical role in municipal sewer infrastructure, commercial construction, and utility corridor projects where drainage, wastewater removal, and proper venting must meet strict code requirements.

In municipal and utility construction, DWV pipe connects buildings to public sewer mains, carries stormwater through underground drainage networks, and provides the venting that keeps gravity-flow systems functioning. Understanding the materials, sizes, standards, and installation requirements for DWV pipe is essential for contractors, engineers, and utility crews working on projects where these systems run alongside electrical conduit, water mains, and gas lines.

This guide covers what DWV pipe is, how it differs from standard sewer pipe, which materials and sizes apply to municipal and utility construction, and what installation standards govern underground applications.

What Is a DWV System and How Does It Work?

A drain, waste, and vent system is the network of pipes and fittings that captures wastewater and sewage from plumbing fixtures and routes it by gravity to either a municipal sewer main or a septic system. The system serves three distinct functions, and each one is reflected in the name.

Drain pipes collect used water from sinks, showers, tubs, and floor drains and move it downward through the system. Waste pipes carry sewage from toilets and urinals to the building sewer. Vent pipes allow air into the system to maintain neutral pressure, which prevents traps from losing their water seal and allows waste to flow freely without creating vacuums or pressure surges in the piping.

Every plumbing fixture connected to a DWV system is protected by a trap, typically a P-trap, that holds a small volume of water to block sewer gases from entering occupied spaces. Without proper venting, the passage of waste through drain pipes creates negative pressure that can siphon water out of these traps, allowing methane and hydrogen sulfide to enter the building. Vent stacks extend through the roof to the exterior, providing both the air supply and the gas exhaust path the system needs.

All drain and waste piping must maintain a consistent downward slope so gravity can move liquids and solids toward the building sewer. The International Plumbing Code (IPC) and Uniform Plumbing Code (UPC) both specify minimum slope requirements based on pipe diameter, typically 1/4 inch per foot for pipes 3 inches and smaller and 1/8 inch per foot for 4-inch and larger pipes.

DWV Pipe Materials and Their Applications

DWV systems can be built from several materials, each with specific advantages depending on the project type, location, and code jurisdiction.

• PVC (polyvinyl chloride) is the most widely used DWV pipe material in new construction. It is lightweight, resistant to corrosion and chemical attack, and joined using a two-step solvent welding process with primer and cement. PVC DWV pipe is manufactured in Schedule 40 wall thickness and conforms to ASTM D2665 for DWV applications and ASTM D1785 for pressure-rated applications. Most sizes from 1-1/4 inch through 24 inches are dual-rated to both standards. PVC is rated for systems where operating temperatures do not exceed 140 degrees Fahrenheit.

• ABS (acrylonitrile butadiene styrene) is the second most common plastic DWV pipe. It is black in color, slightly more impact-resistant than PVC in cold temperatures, and does not require a separate primer step during solvent welding. ABS DWV pipe conforms to ASTM D2661 and is manufactured in Schedule 40 wall thickness. Some regions, particularly in the western United States and Canada, favor ABS over PVC for residential and light commercial DWV work. ABS and PVC cannot be solvent-welded to each other and require mechanical transition couplings where the two materials meet.

• Cast iron remains the standard for high-rise commercial buildings, hospitals, and institutional facilities where sound attenuation and fire resistance are priorities. Hub-and-spigot and no-hub cast iron soil pipe conforms to ASTM A74 and CISPI 301, respectively. Cast iron is significantly heavier and more expensive than plastic alternatives but has a long track record in demanding commercial applications. It is considered a rigid conduit material, meaning it carries earth and live loads on its own structural strength rather than relying on surrounding soil support.

• CPVC (chlorinated polyvinyl chloride) handles higher temperatures than standard PVC and resists a broader range of chemical solvents. It is used primarily in laboratory, pharmaceutical, and industrial DWV applications where chemical waste streams would degrade PVC or ABS. CPVC is more expensive and less common in standard municipal construction.

DWV Pipe Sizes and ASTM Standards for Construction Projects

DWV pipe sizes follow Iron Pipe Size (IPS) dimensions. The most common sizes in municipal and commercial construction range from 1-1/2 inches for individual fixture drains up to 6 inches or larger for building sewers and main stacks.

Standard sizing by application includes 1-1/2 to 2 inches for sinks, lavatories, and floor drains; 3 inches for shower drains and horizontal branch lines; 4 inches for toilet connections, main stacks, and building drains; and 6 inches or larger for building sewers connecting to the municipal main. Pipe is typically manufactured in 10-foot and 20-foot lengths.

The primary ASTM standards governing DWV pipe include ASTM D2665 for PVC DWV pipe and fittings, ASTM D1785 for PVC pressure pipe (which shares the same Schedule 40 dimensions as D2665 for sizes 1-1/4 inch and larger), ASTM D2661 for ABS DWV pipe and fittings, and ASTM A74 and CISPI 301 for cast iron soil pipe. All DWV pipe and fittings used in plumbing systems must also conform to NSF International Standard 14.

For underground sewer piping outside of buildings, code often requires PVC pipe classified by Standard Dimension Ratio (SDR) rather than schedule. SDR 35 pipe, conforming to ASTM D3034, is the most common for municipal sewer mains and storm drainage. SDR 26 is required for underground piping within buildings in many jurisdictions. The distinction between Schedule 40 DWV pipe and SDR-rated sewer pipe is an important one that affects material selection on every project.

How DWV Pipe Is Used in Municipal Sewer Construction

In municipal sewer projects, DWV pipe appears most often in building sewer laterals, which are the pipes that connect a building's internal DWV system to the public sewer main in the street. The building sewer begins at the building drain cleanout and extends to the point of connection at the municipal main.

Building sewer laterals are typically 4-inch or 6-inch PVC, with SDR 35 (ASTM D3034) being the standard material for the underground portion outside the building footprint. Schedule 40 PVC DWV pipe may be used for the transition section near the building, depending on local code requirements. Gasketed joints are standard for SDR 35 pipe to accommodate thermal expansion and minor ground movement without leaking.

Cleanouts are required at regular intervals throughout the sewer system, with most codes specifying a maximum distance of 100 feet between cleanouts on horizontal runs. Cleanout fittings provide access for maintenance crews to rod, jet, or camera the sewer line when blockages or damage occur. Where cleanouts are located in traffic areas or at grade, cast iron frames and covers protect the access point from vehicle loads.

Manholes serve as the primary access and inspection points on municipal sewer mains. Crews entering manholes for inspection, maintenance, or lateral connections must follow confined space entry protocols under OSHA Part 1910 and Part 1926. Proper safety equipment at entry points, including manhole guard rails, protects workers from falls and provides a secure barrier around the opening during operations.

DWV Pipe vs. Sewer Pipe: Key Differences

The terms "DWV pipe" and "sewer pipe" are sometimes used interchangeably, but they refer to different products with different ratings and code applications.

DWV pipe, typically Schedule 40 PVC conforming to ASTM D2665, is designed for use inside and immediately outside buildings in drain, waste, and vent applications. It has a heavier wall thickness relative to its diameter and is joined by solvent welding. DWV pipe is not pressure-rated for water supply but is rated for the structural loads encountered in above-ground and shallow underground building plumbing.

Sewer pipe, typically SDR 35 PVC conforming to ASTM D3034, is designed for underground gravity-flow applications outside of buildings. It has a thinner wall thickness relative to its diameter than Schedule 40 pipe and uses gasketed bell-and-spigot joints rather than solvent welding. SDR 35 pipe is less expensive per foot than Schedule 40 but is not approved for use inside buildings or for vent piping.

The critical difference comes down to where the pipe is installed and what loads it must handle. Inside a building, Schedule 40 DWV pipe provides the wall thickness and joint integrity needed for vertical stacks, horizontal branches, and vent piping. Outside the building, SDR 35 sewer pipe provides adequate strength for direct burial at standard cover depths while offering a cost advantage on long lateral runs.

Underground Installation Requirements for DWV Pipe

Underground installation of PVC DWV pipe must follow ASTM D2321, the Standard Practice for Underground Installation of Thermoplastic Pipe for Sewers and Other Gravity-Flow Applications. Unlike cast iron, which is a rigid material that supports loads through its own wall strength, PVC and ABS are flexible materials that depend on proper bedding and side-fill compaction to resist earth and live loads.

The trench must be wider than the pipe to allow room for placing and compacting bedding material around the pipe haunch, which is the area from the trench bottom to the spring line (horizontal centerline) of the pipe. Class I or Class II granular material is preferred for bedding and initial backfill. Material must be placed in lifts and compacted to the density specified by the project engineer, typically 90% to 95% Standard Proctor per ASTM D698.

Minimum cover depth varies by jurisdiction but is generally 12 to 18 inches for residential areas and 24 inches or more where pipe runs under driveways, parking lots, or roadways subject to vehicular traffic. Where less than code-minimum cover is available, the pipe may need to be encased in concrete or upgraded to a heavier wall thickness such as Schedule 80.

Foam core PVC, while acceptable for many above-ground DWV applications, is generally not recommended for underground burial in commercial projects. Solid wall PVC provides more consistent load-bearing performance when surrounded by compacted soil.

Comparing DWV Pipe Materials

Common DWV Fittings Used in Municipal Construction

DWV fittings direct flow, connect branches, provide access for maintenance, and transition between pipe materials and sizes. The most frequently specified fittings in municipal and commercial DWV work include sanitary tees for connecting horizontal branch drains to vertical stacks, wye fittings for joining branch lines at 45-degree angles that promote smooth flow, long-radius elbows in 22.5, 45, and 90 degrees for changes in direction, cleanout adapters with threaded plugs for maintenance access, reducing bushings for transitioning between pipe sizes, and transition couplings for connecting PVC to cast iron or ABS where different materials meet.

All DWV fittings must be approved for the specific pipe material and application. PVC DWV fittings conforming to ASTM D2665 use hub (socket) connections designed for solvent welding. The fitting pattern is directional, meaning sanitary tees and wyes are designed so waste flows through the curve of the fitting rather than against it, which prevents blockages and turbulence.

How Utility Conduit and DWV Systems Coexist Underground

Municipal construction projects frequently place DWV sewer lines in the same trench corridors as electrical conduit, telecommunications duct, water mains, and gas lines. Utility separation standards exist to prevent cross-contamination, physical damage, and interference between these systems.

Most codes require a minimum horizontal separation of 10 feet between water mains and sewer lines, though this can be reduced to as little as 18 inches with appropriate protective measures. Vertical separation at crossings typically requires the water line to pass at least 18 inches above the sewer line. Where separation cannot be maintained, the sewer pipe may need to be upgraded to pressure-rated material or encased in a protective sleeve.

Electrical conduit running in joint trench configurations near DWV sewer lines requires careful separation and protection. PVC rigid conduit and aluminum rigid conduit protect power and communications cables from the moisture, soil chemicals, and mechanical stresses present in utility corridors. 316 stainless steel compression connectors maintain joint integrity where conduit runs through corrosive underground environments near sewer infrastructure.

Sealing conduit openings prevents water migration between the sewer trench and the electrical system. Fiberglass end caps with watertight gaskets close off unused conduit ends during and after construction, while Polywater segmented EPDM Mec Seals provide watertight sealing at conduit penetrations into manholes, handholes, and equipment enclosures. Stainless steel conduit clamps secure conduit runs against displacement from backfill settlement or vibration caused by nearby sewer construction.

Proper separation and sealing at every point in the utility corridor protects both the DWV system and the electrical infrastructure from the failures that occur when water, soil movement, or chemical exposure crosses from one system to another.

Conclusion

DWV pipe is far more than a residential plumbing product. In municipal sewer construction and utility infrastructure projects, it forms the backbone of gravity-flow drainage systems that must perform reliably for decades underground. Selecting the right material, matching pipe specifications to code requirements, following ASTM D2321 installation standards, and protecting adjacent utility systems are all essential to a successful project.

Whether the scope involves a building sewer lateral connecting to a municipal main or a joint trench installation where sewer, water, and electrical systems share the same corridor, the materials and fittings used at every connection point determine how well the system holds up over time.

About Utility Pipe Supply

Utility Pipe Supply has provided contractors, engineers, and municipal agencies with conduit, fittings, sealing products, safety equipment, and installation tools for underground infrastructure projects since 1997. As a certified WBE/DBE/FBE, the company delivers dependable products and responsive service that keep projects compliant, safe, and on schedule.

Frequently Asked Questions

What does DWV stand for in pipe?

DWV stands for drain, waste, and vent. It refers to the piping system that removes wastewater from plumbing fixtures by gravity and provides ventilation to maintain neutral air pressure throughout the drainage network. The drain component carries used water from sinks and showers, the waste component handles sewage from toilets, and the vent component allows air into the system while exhausting sewer gases through the roof.

What is the difference between DWV pipe and Schedule 40 PVC?

DWV pipe conforming to ASTM D2665 and Schedule 40 PVC conforming to ASTM D1785 share the same dimensions for sizes 1-1/4 inch and larger. The primary difference is that Schedule 40 PVC is also pressure-rated for water supply applications, while DWV pipe is rated only for non-pressure drain, waste, and vent use. Most manufacturers dual-rate their Schedule 40 pipe to both ASTM D1785 and D2665, making the same pipe suitable for either application.

Can DWV pipe be used underground?

Yes, but it must be installed according to ASTM D2321 standards for underground thermoplastic pipe. This includes proper trench preparation, granular bedding, side-fill compaction to the pipe spring line, and adequate cover depth. Solid wall PVC is preferred over cellular core PVC for underground commercial applications. Outside of buildings, many codes require SDR 35 (ASTM D3034) sewer pipe rather than Schedule 40 DWV pipe.

What size DWV pipe is used for a building sewer?

Building sewers are typically 4-inch or 6-inch diameter, with 4-inch being the minimum for residential connections and 6-inch being common for commercial buildings with higher fixture counts. The pipe material for the underground portion outside the building is usually SDR 35 PVC (ASTM D3034) with gasketed joints, while the transition section near the building may use Schedule 40 PVC DWV pipe depending on local code.

Is ABS or PVC better for DWV systems?

Both materials perform well in DWV applications. PVC is more widely used nationally and offers slightly better chemical resistance. ABS is more impact-resistant in cold temperatures and does not require a primer step during solvent welding, which can speed up installation in cold weather. Local code determines which material is permitted, and some jurisdictions allow only one or the other. The two materials cannot be solvent-welded together and require mechanical transition couplings where they meet.

What ASTM standards apply to DWV pipe?

The primary standards are ASTM D2665 for PVC DWV pipe and fittings, ASTM D1785 for PVC pressure pipe (dual-rated with DWV for Schedule 40), ASTM D2661 for ABS DWV pipe and fittings, ASTM D3034 for PVC SDR sewer pipe, and CISPI 301 for no-hub cast iron soil pipe. Underground installation of plastic DWV pipe is governed by ASTM D2321. All pipe and fittings must also conform to NSF International Standard 14.
