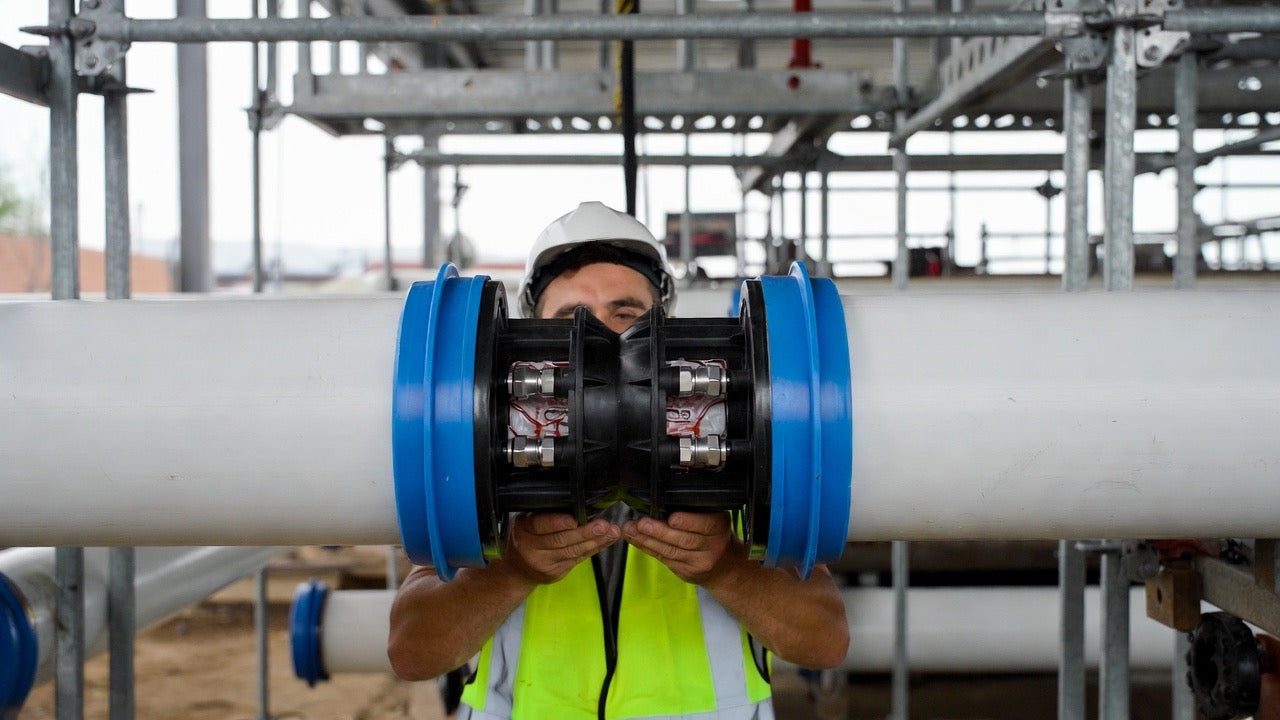

Why is Electrofusion the Go-To Method for HDPE Utility Pipelines?

Electrofusion has become the preferred joining method for HDPE utility pipelines in applications where butt fusion equipment cannot fit, where repairs must be made on active systems, or where the job demands a level of joint traceability that manual fusion methods cannot provide. From municipal water distribution to gas networks and telecommunications conduit systems, electrofusion creates strong, leak-proof connections using fittings with embedded heating elements that fuse the polyethylene at a molecular level.

The electrofusion fittings market reflects this growing reliance. Industry projections estimate the market will reach $817 million by 2031, driven by global demand for reliable water and gas distribution infrastructure. For contractors and utility crews working in tight utility corridors, congested urban environments, or deep trench conditions, electrofusion offers a combination of joint strength, process control, and field adaptability that other joining methods struggle to match.

This guide explains how electrofusion works, where it outperforms butt fusion, what standards and equipment are involved, and how HDPE electrofusion fits into broader utility construction projects.

How the Electrofusion Process Works

Electrofusion joins HDPE pipes using prefabricated fittings that contain a resistive heating coil embedded in the inner wall of the fitting. The process relies on controlled electrical energy to melt the polyethylene surfaces of both the fitting and the pipe, creating a single monolithic joint as the material cools and recrystallizes.

The process follows a defined sequence. First, the pipe ends are cut square and the outer surface is scraped or peeled to a depth of approximately 0.2 mm using a rotary peeling tool or hand scraper. This step removes any oxidized, contaminated, or UV-degraded material from the surface that would prevent a proper molecular bond. The pipe ends are then cleaned with a lint-free cloth to remove dust and debris.

Next, the pipes are inserted into the electrofusion fitting and secured in alignment clamps that hold the assembly stationary throughout the fusion and cooling cycle. If the pipes have taken on an oval shape from storage or transport, rerounding clamps may be needed to restore circularity before the fitting can slide into position.

The electrofusion control unit (ECU) reads a barcode printed on the fitting that contains the specific fusion parameters for that product, including voltage, heating time, and cooling time. The operator connects the ECU leads to the fitting terminals and initiates the fusion cycle. Current flows through the embedded coil, heating the surrounding polyethylene until it melts and expands outward. The molten material reaches cold zones within the fitting that act as barriers, containing the melt pool and building internal pressure. This pressure forces the melted surfaces of the pipe and fitting together.

After the heating phase completes, the assembly enters a defined cooling period during which the molten polyethylene recrystallizes into a continuous structure. The joint must remain completely stationary during cooling because any movement while the material is still soft can compromise the bond. Cooling times vary by fitting size and ambient temperature but typically range from several minutes for small-diameter fittings to over 30 minutes for large-diameter couplings.

Why Electrofusion Outperforms Other Methods in Utility Work

Electrofusion is not always the fastest or least expensive joining method for HDPE pipe. For long, straight pipeline installations in open terrain, butt fusion is typically more efficient and has a lower cost per joint. But utility construction rarely involves long, straight runs in open terrain. It involves tight trenches, congested underground corridors, repair work on live systems, and connections in locations where large equipment cannot operate.

In these conditions, electrofusion offers several decisive advantages. The equipment is compact and portable. An electrofusion control unit and a set of alignment clamps can be carried to the joint location by one or two workers, while a butt fusion machine for the same pipe diameter may weigh hundreds of pounds and require a crane or excavator to position in the trench.

Electrofusion is the standard method for adding branch connections, tees, elbows, reducers, and tapping saddles to existing HDPE pipelines. Butt fusion is limited to end-to-end pipe connections and cannot create the complex joint geometries that utility networks demand. When a new service lateral must tie into an existing main, or when a valve or transition fitting must be added at a specific location, electrofusion is the only practical heat fusion option.

The barcode-controlled process reduces operator-dependent variation. In butt fusion, joint quality depends heavily on the operator's ability to manage heating temperature, alignment pressure, and timing manually. In electrofusion, the ECU reads the fitting barcode and controls the fusion parameters automatically. This consistency is particularly valuable on large projects where dozens or hundreds of joints must meet the same quality standard.

Every electrofusion joint produces a digital record that includes the fitting barcode data, fusion voltage, heating time, cooling time, and ambient conditions. This documentation satisfies the traceability requirements that many municipal agencies and gas utilities now mandate on HDPE pipeline projects. Butt fusion can also be documented using data loggers, but the process requires additional equipment and is less standardized.

Electrofusion vs. Butt Fusion: A Field Comparison

Both electrofusion and butt fusion produce joints that are as strong as the pipe itself when performed correctly. The choice between them depends on project conditions, pipe diameter, and the type of connection being made.

In practice, most HDPE utility pipeline projects use both methods. Butt fusion handles the mainline pipe assembly, and electrofusion handles the fittings, connections, and repair joints where butt fusion equipment cannot reach.

Types of Electrofusion Fittings

Electrofusion fittings are manufactured from PE100 HDPE material and contain embedded resistance wire coils that produce the heat required for fusion. Each fitting type serves a specific function in the pipeline system.

• Couplings join two pipe ends in a straight line. They are the most common electrofusion fitting and are used for both new construction and repair work. When a section of damaged pipe must be cut out and replaced, two electrofusion couplings complete the repair without the need for a butt fusion machine in the trench.

• Elbows change the direction of the pipeline at standard angles, typically 45 or 90 degrees. Electrofusion elbows eliminate the need for fabricated mitered bends and provide a factory-controlled joint geometry.

• Tees create branch connections from the main pipeline. Standard tees accept the same diameter pipe on all three ports, while reducing tees step down to a smaller branch diameter. For HDPE conduit systems, the 523 Series reducing transition tee provides HDPE-to-threaded transitions that simplify connections to other piping materials.

• Reducers transition between two different pipe diameters within the same pipeline, allowing the system to step up or down as flow requirements change.

• Tapping saddles mount to the outside of an existing pipe to create a new branch connection without shutting down the line. The saddle is electrofused to the pipe surface, and a cutter assembly drills through the pipe wall under pressure to establish the new connection.

• End caps seal the terminal end of a pipeline, providing a permanent pressure-rated closure.

All electrofusion fittings used on municipal and utility projects must conform to ASTM F1055, the Standard Specification for Electrofusion Type Polyethylene Fittings for Outside Diameter Controlled Polyethylene Pipe and Tubing. Fittings must carry a pressure rating equal to or greater than the pipe to which they are joined.

Standards and Certifications for Electrofusion Work

Electrofusion on HDPE utility pipelines is governed by a framework of ASTM standards, Plastics Pipe Institute (PPI) technical notes, and agency-specific requirements.

ASTM F1055 covers the material, dimensional, and performance requirements for electrofusion fittings. ASTM F2620 provides the standard practice for heat fusion joining of polyethylene pipe and fittings, including electrofusion procedures. ASTM F3190 addresses qualification of fusion technicians through evidence of training within the past two years on the specific equipment being used on the project.

The Plastics Pipe Institute publishes MAB-1, a generic electrofusion procedure for field joining of 12-inch and smaller PE pipe, and MAB-2, which extends the procedure to 14-inch through 30-inch pipe. These documents supplement the manufacturer-specific instructions that accompany each fitting.

Many municipal water authorities and gas utilities require that all fusion joints be documented using digital records. For electrofusion, the ECU automatically generates this data. For butt fusion, a separate data logger such as the McElroy DataLogger must be used to meet ASTM F3124 documentation requirements. This built-in traceability is one of the reasons utilities increasingly specify electrofusion for critical connections.

Operator qualification is a mandatory requirement on most utility projects. Technicians must demonstrate current training on the specific electrofusion equipment being used, and many project specifications require certification that is no more than two years old. Training programs are offered by equipment manufacturers, fitting suppliers, and organizations such as the Plastics Pipe Institute.

Critical Steps That Determine Electrofusion Joint Quality

The electrofusion process is highly automated once the ECU cycle begins, but the preparation steps that happen before fusion are entirely manual and have a direct impact on joint integrity.

Surface preparation is the single most important factor. The pipe surface must be scraped or peeled to remove the outer layer of oxidized and potentially contaminated material. A rotary peeling tool produces more consistent results than a hand scraper because it removes material to a uniform depth across the entire circumference. Skipping or shortening this step is the most common cause of electrofusion joint failure.

Pipe ovality must be corrected before the fitting is installed. If the pipe has deformed during storage, handling, or trenching, the gap between the pipe surface and the fitting bore will be uneven. Uneven gaps produce inconsistent fusion because the melt pool does not develop uniformly around the circumference. Rerounding clamps restore the pipe to its manufactured roundness before the fitting is slid into position.

Moisture and contamination must be eliminated from the joint area. Water, mud, oil, or any foreign material trapped between the pipe and fitting will vaporize during heating and create voids in the fusion zone. Joint preparation should be performed immediately before fusion, and the assembly should be protected from rain, blowing dust, and condensation.

Alignment clamps must hold the pipe and fitting stationary throughout the entire fusion and cooling cycle. Any movement during cooling disrupts the recrystallization process and weakens the bond. On sloped installations or pipelines with residual curvature, external support may be needed to prevent the weight of the pipe from loading the joint before it has fully cooled.

How HDPE Electrofusion Fits into Utility Construction Projects

HDPE pipelines joined by electrofusion operate alongside other underground utility systems including electrical conduit, telecommunications duct, gas lines, and water mains. The reliability of the HDPE system depends not only on the fusion joints themselves but also on the broader installation practices that protect every component in the utility corridor.

In telecommunications and fiber optic networks, HDPE serves as both the pipeline material and the conduit material. FuturePath 8-way HDPE microduct systems use HDPE pathways to route fiber cables underground, and Double E-Loc HDPE couplings provide tool-free mechanical connections for HDPE conduit runs where electrofusion is not required.

Where HDPE water or gas pipelines share trench corridors with electrical infrastructure, the conduit systems protecting power and communications cables must be equally reliable. PVC rigid conduit provides a durable raceway for underground electrical conductors, while stainless steel conduit clamps secure conduit runs against displacement from backfill settlement or pipeline testing vibration.

Sealing every penetration and termination in the utility corridor prevents moisture migration between systems. Fiberglass end caps with watertight gaskets close off unused conduit ends, and Polywater segmented EPDM Mec Seals seal conduit entries at manholes, handholes, and equipment enclosures where HDPE and electrical systems converge.

The same attention to joint integrity that makes electrofusion the preferred method for HDPE pipelines should extend to every connection, seal, and clamp in the surrounding utility infrastructure.

About Utility Pipe Supply

Utility Pipe Supply has served contractors, engineers, and utility agencies since 1997 with HDPE conduit, fittings, sealing products, safety equipment, and installation tools for underground infrastructure projects. As a certified WBE/DBE/FBE, the company delivers reliable products and responsive service to keep utility construction projects safe, compliant, and on schedule.

Frequently Asked Questions

What is the difference between electrofusion and butt fusion?

Electrofusion uses prefabricated fittings with embedded heating coils to melt and join HDPE pipe internally. Butt fusion heats the pipe ends directly using an external heating plate and presses them together under pressure. Electrofusion is better suited for confined spaces, branch connections, and repairs, while butt fusion is more efficient for long straight-line pipe assembly. Most HDPE pipeline projects use both methods depending on the type of joint being made.

What ASTM standard covers electrofusion fittings?

ASTM F1055 is the primary standard for electrofusion fittings used with polyethylene pipe. It covers material requirements, dimensional specifications, pressure ratings, and performance testing. Electrofusion procedures fall under ASTM F2620 for heat fusion joining, and operator qualification is addressed by ASTM F3190.

Can electrofusion be used on a large-diameter HDPE pipe?

Yes. Electrofusion fittings are available for HDPE pipe up to 30 inches in diameter. The Plastics Pipe Institute publishes MAB-2, a generic electrofusion procedure specifically for 14-inch through 30-inch PE pipe. Large-diameter electrofusion requires extended heating and cooling cycles and heavy-duty alignment clamps to maintain joint stability during the fusion process.

Why is surface preparation so important for electrofusion?

The outer surface of HDPE pipe develops an oxidized layer during manufacturing and storage that prevents the molecular bond needed for a strong fusion joint. Scraping or peeling removes this layer along with any dirt, oils, or UV degradation that would create weak spots or voids in the fusion zone. Using a rotary peeling tool rather than a hand scraper produces more consistent results across the full pipe circumference.

How long does an electrofusion joint take?

The total cycle time depends on the fitting size and ambient temperature. For small-diameter couplings (2 to 4 inches), the heating phase is typically 1 to 5 minutes with a cooling period of 10 to 20 minutes. For large-diameter fittings (12 inches and above), heating may take 10 to 20 minutes with cooling times of 30 minutes or more. The fitting barcode provides the exact parameters for each product.

Is electrofusion more expensive than butt fusion?

On a per-joint basis, electrofusion is typically more expensive because of the cost of the specialized fittings. However, the total installed cost can be lower in confined spaces, repair situations, and complex piping networks where butt fusion equipment cannot access the joint location. Electrofusion also reduces long-term costs by producing consistent, traceable joints that minimize the risk of leaks and costly repairs after installation.
