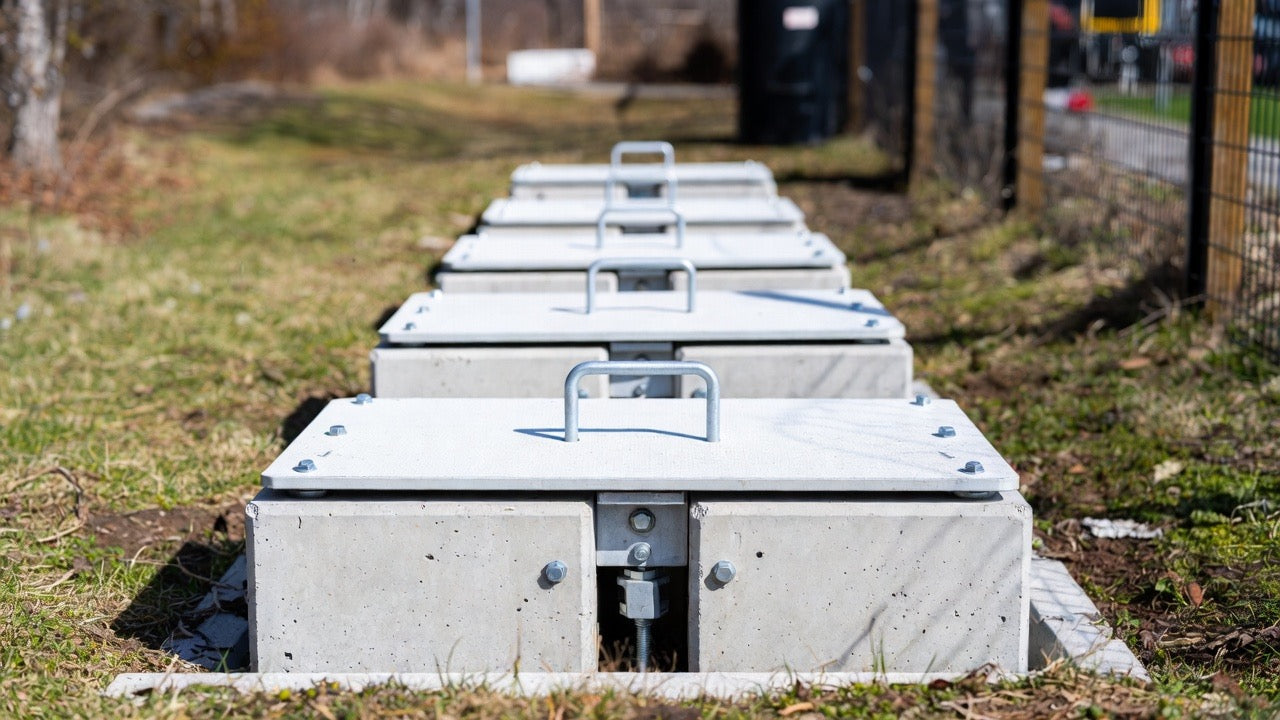

A pull box is an underground enclosure installed within a conduit system that provides access for pulling, routing, and managing conductors and cables. Pull boxes reduce the friction and tension that build up during long cable pulls, break complex conduit runs into manageable segments, and give maintenance crews a point of entry for future repairs, upgrades, and inspections.

In underground power distribution and fiber optic networks, pull boxes serve as the critical connection points between conduit sections. Without them, cable installation over distances greater than a few hundred feet or through conduit runs with multiple bends would be impractical or impossible. The National Electrical Code (NEC) limits the total number of bends between pull points to 360 degrees, and many project specifications require pull box placement at intervals of 200 to 500 feet on straight runs depending on conductor size and conduit configuration.

This guide covers how pull boxes function in underground utility installations, what sizing rules apply under NEC Article 314.28, what materials are available, and how pull box placement affects the overall performance of both power and fiber optic conduit systems.

What a Pull Box Does in an Underground Conduit System

Every conduit run generates friction between the cable jacket and the conduit wall as conductors are pulled through the system. This friction increases with distance, with each bend in the conduit, and with the number and weight of conductors being pulled simultaneously. If the cumulative tension exceeds the cable's rated pulling tension, the conductor insulation can stretch, crack, or separate from the conductor, creating a failure point that may not be discovered until the circuit is energized or the cable is tested.

A pull box breaks a long conduit run into shorter segments so that each cable pull starts and ends at a controlled access point. The crew feeds cable into the conduit from one pull box, pulls it to the next, and then repositions for the next section. This approach keeps the tension on each segment within the cable manufacturer's rated limits and prevents the cumulative friction buildup that damages conductors during a single long pull.

Pull boxes also provide space for managing cable slack, storing excess fiber for future splicing, changing the direction of a conduit run, and transitioning between different conduit sizes or materials. In fiber optic networks, pull boxes and handholes serve as splice points where individual fiber strands are terminated, connected to distribution cables, or redirected to branch conduit routes.

Unlike junction boxes, pull boxes do not contain permanent electrical connections or splices. Their primary purpose is access. A junction box houses wire terminations, splices, and connections. A pull box provides the physical space and access needed to install and maintain conductors within the conduit system. Some enclosures serve both functions depending on the project design, but the NEC treats sizing requirements differently for each application.

NEC Sizing Requirements for Pull Boxes

NEC Article 314.28 establishes minimum sizing requirements for pull boxes and junction boxes that contain conductors 4 AWG or larger. These rules exist to prevent conductor insulation damage during installation by ensuring the box provides enough room for cables to bend without exceeding their minimum bend radius.

For straight pulls, where conduit enters one side of the box and exits the opposite side, the minimum box length must be at least eight times the trade size of the largest conduit. A straight pull with a 4-inch conduit requires a box at least 32 inches long (4 inches multiplied by 8).

For angle pulls, U-pulls, and splices, where conduit enters one side and exits an adjacent side, the calculation is different. The distance from each conduit entry to the opposite wall must be at least six times the trade size of the largest conduit in that row, plus the sum of the trade sizes of all other conduit entries on the same wall. If a box contains conduit entries of 4 inches, 2 inches, and 2 inches on the same wall, the minimum distance to the opposite wall is 28 inches (6 multiplied by 4, plus 2, plus 2).

The distance between the entry and exit points of each individual circuit must also be at least six times the trade size of that circuit's conduit. This requirement prevents cables from being forced through tight turns that could damage their insulation.

In addition to dimensional requirements, NEC 314.28(B) requires that conductors in pull boxes with any dimension exceeding 6 feet be cabled or racked in an approved manner. This prevents loose conductors from tangling and becoming difficult to identify during future maintenance.

Pull Box Sizing for Common Conduit Configurations

Pull Type

NEC Rule

Formula

Example (4" Conduit)

Minimum Dimension

Straight Pull

314.28(A)(1)

8 x largest conduit

8 x 4"

32"

Angle Pull

314.28(A)(2)

6 x largest + sum of others

6 x 4" + 2" + 2"

28"

U-Pull

314.28(A)(2)

6 x largest + sum of others

6 x 4" + 4" (same conduit counted twice)

28"

Entry-to-Exit Spacing

314.28(A)(2)

6 x conduit for each circuit

6 x 4"

24"

These are minimum dimensions. Many contractors and engineers specify larger boxes to provide additional working room, accommodate future conduit additions, and reduce the difficulty of cable pulls in confined underground spaces.

Pull Box Materials and Construction Types

Underground pull boxes must withstand soil pressure, groundwater, freeze-thaw cycles, and traffic loads depending on their installation location. The three most common construction materials are polymer concrete, fiberglass composite, and precast traditional concrete.

  • Polymer concrete is the most widely specified material for underground pull boxes in utility and telecommunications work. It is manufactured from a blend of polymer resins and selectively graded mineral aggregates, reinforced with fiberglass. Polymer concrete boxes are lighter than traditional concrete, resistant to corrosion and chemical attack, non-conductive (eliminating the need to ground the box), and rated for service lives exceeding 50 years. They are available in standard sizes from 12 x 12 x 12 inches to 48 x 60 x 48 inches and larger.

  • Fiberglass composite boxes use a fiberglass body bonded to a polymer concrete cover and support ring. This combination reduces weight further while maintaining the traffic rating needed for installations in driveways, parking lots, and roadway shoulders. Fiberglass bodies can be drilled and modified in the field, which is useful when conduit entries must be added after the initial installation.

  • Precast concrete remains common in heavy-duty applications, particularly for large utility vaults and manholes that must support AASHTO H-20 traffic loads. Precast concrete boxes are heavier and require mechanical lifting equipment for installation but provide the structural mass needed for installations under active roadways.

Pull box covers and lids are rated by tier classifications that correspond to the traffic loads the installation must support. Light-duty covers handle pedestrian traffic only. Tier 5 and Tier 8 covers support sidewalk applications with occasional vehicular traffic. Tier 15 and Tier 22 covers handle parking lots and off-road traffic. AASHTO H-20 rated covers are required for installations under active vehicular traffic lanes.

How Pull Boxes Support Underground Power Installations

In underground power distribution, pull boxes serve as the access points that make conductor installation physically possible. A typical underground feeder circuit for a commercial development might run 1,000 feet or more from a transformer pad to a building service entrance, with multiple direction changes, road crossings, and elevation changes along the route.

Without pull boxes, the crew would need to pull the full length of cable through the entire conduit run in a single operation. The cumulative friction from bends, conduit length, and conductor weight would quickly exceed safe pulling tensions for most conductor sizes. By placing pull boxes at strategic intervals, the crew divides the run into manageable sections where the tension on each pull stays within rated limits.

Monitoring cable tension during pulls is essential for preventing damage. Amp-type tensiometers measure real-time pulling force and help crews stay within the manufacturer's maximum tension rating for each conductor type. This is particularly important at pull boxes located after multiple bends, where friction loads are highest.

The conduit entering and exiting each pull box must be properly supported and sealed. PVC rigid conduit is the standard raceway material for underground electrical installations, and directional changes in the conduit system should use long-radius sweeps rather than sharp elbows to minimize friction. DB-100 PVC sweeps provide the gradual bend radius needed at pull box entries and exits where conduit transitions from horizontal underground runs to vertical entries into the enclosure.

Conduit stubs entering pull boxes must be sealed to prevent water, soil, and debris from entering the system. Polywater segmented EPDM Mec Seals provide watertight sealing at conduit penetrations into pull boxes and handholes, while fiberglass end caps with watertight gaskets close off spare conduit stubs that are roughed in for future circuits.

How Pull Boxes Support Fiber Optic Installations

Fiber optic networks use pull boxes and handholes in a similar way to electrical systems, but with additional functions. In fiber installations, these enclosures serve as splice points, cable storage locations, distribution hubs, and access points for testing and troubleshooting.

The standard spacing for underground fiber optic enclosures is 500 to 1,000 feet between pull points, depending on the cable type, duct configuration, and network design. In campus environments, building complexes, and dense urban deployments, enclosures may be placed more frequently to accommodate branching, splicing, and service drops.

Inside each pull box, crews store a slack loop of excess fiber optic cable, typically 20 to 50 feet of coiled cable. This slack serves two purposes. First, it provides enough cable to bring the fiber up to a splicing work surface at grade level without pulling additional cable from the conduit. Second, it acts as a reserve in case the cable is damaged between enclosures and a new splice must be made at a point that requires additional cable length.

Fiber optic cables are more sensitive to pulling tension than power conductors because the glass fibers can fracture under excessive stress. Cable manufacturers specify maximum pulling tensions, typically measured in pounds, and minimum bend radii that must not be exceeded during installation. Fiber optic jamb skids protect cable from abrasion and sharp edges at conduit entry and exit points during pulls, reducing the risk of micro-bending damage that can increase signal attenuation.

In fiber-to-the-home (FTTH) and fiber-to-the-premises (FTTP) deployments, pull boxes at distribution points house splice closures where backbone fiber is connected to drop cables serving individual addresses. The enclosure must be large enough to accommodate the splice closure, the slack loops for both the distribution and drop cables, and the conduit entries for all routes converging at that location.

FuturePath 8-way HDPE microduct systems allow multiple fiber pathways to share a single conduit between pull boxes, with each microduct carrying an individual fiber cable that can be installed, upgraded, or replaced independently.

Pull Box Placement Strategy

Pull Box Placement Strategy

Effective pull box placement balances code compliance, cable pulling mechanics, future maintenance access, and project cost. While the NEC limits bends to 360 degrees between pull points and many specifications call for pull boxes every 200 to 500 feet on straight runs, the actual placement should consider the specific conditions of each project.

Place pull boxes before and after sections of the conduit run that have concentrated bends. A conduit route that includes two 90-degree turns within a 50-foot span creates more friction than a single 90-degree turn spread over 200 feet. Placing a pull box between the two bends allows the crew to complete each section as a separate pull with lower cumulative tension.

Position pull boxes where they will be accessible for future maintenance without disrupting traffic, landscaping, or building operations. Underground enclosures located under active traffic lanes require H-20 rated covers and create access challenges that increase the cost of every future maintenance visit. Where possible, place pull boxes in sidewalk margins, landscape strips, or parking areas where crews can work without traffic control.

Consider future capacity when sizing and placing pull boxes. Installing a box one size larger than the current requirement costs relatively little at the time of construction but can eliminate expensive excavation and replacement if the conduit system is later expanded. Similarly, stubbing in spare conduit runs to each pull box allows future circuits to be added without trenching.

Install a drainage layer of 12 inches of clean crushed stone or pea gravel beneath each pull box to facilitate water drainage and prevent the enclosure from sitting in standing water. Protect the drainage layer from contamination by dirt and construction debris during backfill operations. A compromised drainage layer leads to standing water inside the enclosure that accelerates corrosion on metallic components and creates safety hazards for maintenance crews.

Pull Box vs. Junction Box vs. Handhole vs. Manhole

Enclosure Type

Primary Function

Typical Size Range

Common Applications

Pull Box

Cable pulling access, tension relief

12"x12"x12" to 36"x48"x36"

Conduit runs, direction changes, cable management

Junction Box

Wire splices, terminations, connections

6"x6"x6" to 24"x24"x12"

Branch circuit connections, device wiring

Handhole

Cable access, splicing, slack storage

17"x30"x24" to 48"x60"x48"

Fiber optic networks, telecom, low-voltage systems

Manhole

Full worker entry, major equipment

4' x 6' and larger

Primary power distribution, major fiber trunk routes

In practice, the terms overlap. Fiber optic contractors frequently refer to handholes as pull boxes. Electrical contractors may use a single enclosure as both a pull box and a junction box depending on the project phase. The key distinction is function: pull boxes provide access for cable installation, while junction boxes house permanent electrical connections.

About Utility Pipe Supply

Utility Pipe Supply has served contractors, engineers, and municipal agencies since 1997 with conduit, fittings, cable pulling equipment, sealing products, and safety tools for underground utility construction. As a certified WBE/DBE/FBE, the company delivers reliable products and responsive service to keep power and fiber optic projects on schedule from first pull to final termination.

Frequently Asked Questions

What is the purpose of a pull box in underground conduit?

A pull box provides access to the conduit system so crews can pull conductors and cables in shorter, manageable segments rather than attempting a single pull over the full conduit run. This reduces friction and tension on the cable, prevents insulation damage, and allows crews to stay within the manufacturer's maximum pulling tension rating. Pull boxes also provide access for future maintenance, cable replacement, and system expansion.

How do you size a pull box per NEC code?

NEC Article 314.28 governs pull box sizing for conductors 4 AWG and larger. For straight pulls, the minimum box length is eight times the trade size of the largest conduit. For angle pulls, U-pulls, and splices, the distance from each conduit entry to the opposite wall must be at least six times the largest conduit plus the sum of all other conduit entries on the same wall. The entry-to-exit spacing for each circuit must be at least six times that circuit's conduit diameter.

What is the difference between a pull box and a junction box?

A pull box provides access for pulling and routing conductors within a conduit system but does not contain permanent electrical connections. A junction box houses wire splices, terminations, and connections where circuits branch or join. NEC sizing rules differ for each: pull boxes follow NEC 314.28 based on conduit size, while junction boxes follow NEC 314.16 based on conductor volume. Some enclosures serve both functions depending on the installation.

How far apart should pull boxes be placed underground?

The NEC does not specify a maximum distance between pull boxes on straight runs but does limit the total bends between pull points to 360 degrees (the equivalent of four 90-degree turns). Many project specifications require pull boxes every 200 to 500 feet depending on conductor size, conduit type, and site conditions. Fiber optic installations typically place enclosures every 500 to 1,000 feet.

What materials are used for underground pull boxes?

The most common materials are polymer concrete, fiberglass composite, and precast traditional concrete. Polymer concrete is the most widely specified for utility and telecommunications work because it is lighter than traditional concrete, corrosion-resistant, non-conductive, and rated for service lives exceeding 50 years. Traffic load ratings range from light-duty pedestrian covers through AASHTO H-20 for installations under active roadways.

Can pull boxes be used for fiber optic cable?

Yes. Pull boxes and handholes are essential components of underground fiber optic networks. They serve as splice points, slack storage locations, distribution hubs, and cable pulling access points. Fiber installations typically require enclosures every 500 to 1,000 feet, with enough interior space to store 20 to 50 feet of coiled slack cable and house splice closures where fibers are terminated or branched.
