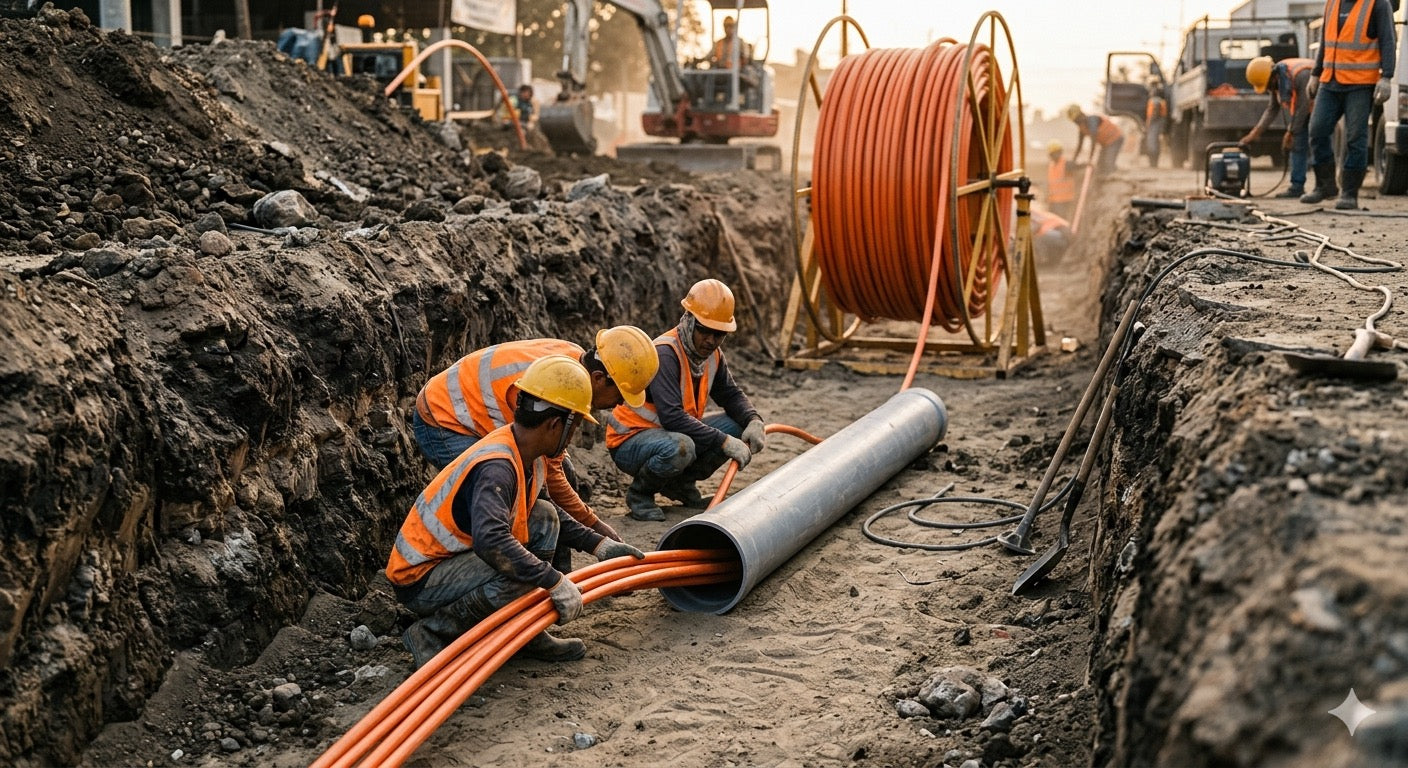

Fiber optic cable carries enormous amounts of data, but the glass or plastic fiber at its core is unforgiving of mechanical stress, moisture infiltration, and improper installation practices. Unlike copper cable, fiber does not tolerate being kinked, crushed, or over-tensioned during a pull. Protecting it starts well before the first reel is staged on a jobsite,it starts with selecting the right fiber optic conduit system and innerduct, specifying fill ratios, and planning every transition point.

This guide covers the essential protection practices for fiber optic conduit and innerduct installations, from material selection through sealing, pulling, and long-term pathway management. Whether you are building a duct bank for a municipal broadband project, pulling cable through an existing conduit system, or speccing an inside-plant pathway, these principles apply.

Key Takeaways

  • Material selection matters for the environment. HDPE is the right choice for most underground and outside-plant runs. PVC works well in duct banks and open trenches. Fiberglass is reserved for applications requiring exceptional compressive strength or chemical resistance.
  • Specify innerduct type for the installation method. Corrugated HDPE reduces pulling friction for runs inside existing conduit. Smoothwall HDPE is correct for direct burial, trenchless, and cable-blowing applications. Riser and plenum innerduct are interior-rated products and are not appropriate for outside-plant use.
  • 40% initial fill, 70% maximum. These are not conservative estimates, they are the thresholds that keep pulling tension manageable and preserve capacity for future cable additions. Design to 40% and you will rarely need to revisit the corridor.
  • Seal every open end, every day. A single night of rain or a week of open conduit during a project delay can introduce moisture and debris that compromises a system built to last decades. Temporary plugs cost cents; remediation costs orders of magnitude more.
  • Lubricant compatibility is non-negotiable. Water-based and gel-based products specifically listed for fiber optic cable are the only acceptable choices. Petroleum-based lubricants, silicone sprays, and liquid detergent all degrade polyethylene cable jackets and have no place in a fiber conduit system.
  • Plan the slack. Twenty to thirty feet of cable slack at each vault is not waste, it is the maintenance access that makes future splicing and repair possible without cutting the main run.
  • Mark the pathway before it disappears. Detectable marking tape placed 12 inches above the conduit at backfill is the last line of defense against accidental excavation damage. Do not skip it.

Why Protection Standards Matter for Fiber Optic Infrastructure

Fiber optic cable is sensitive to crush forces, tensile overload, and bend radius violations in ways that copper simply is not. Exceeding the minimum bend radius, typically 10 times the cable's outer diameter under load, and 20 times at rest, can cause microbend attenuation that degrades signal performance without any visible damage to the cable jacket. Damage may not show up immediately but will surface as insertion loss creep over time.

Moisture is equally destructive. Water infiltration into an unsealed conduit can attack the cable jacket, introduce freeze-thaw stress in cold climates, and transport contaminants into splice enclosures and distribution points. A conduit system that is not kept sealed between installation phases is effectively inviting failure into the network.

The conduit and innerduct system around fiber cable exists to absorb all of those threats so the cable itself does not have to. Getting the specification right at the design stage, and installing it correctly in the field, is the lowest-cost way to protect a fiber investment over a 20-to-40-year infrastructure lifecycle.

Choosing the Right Conduit Material for Fiber Applications

The conduit material sets the baseline for crush resistance, chemical compatibility, temperature performance, and installation method. Three materials dominate fiber optic conduit applications: HDPE, PVC, and fiberglass.

HDPE is the preferred material for most underground and outside-plant fiber installations. It handles temperature extremes without becoming brittle, resists UV exposure for aerial applications, and tolerates the petroleum compounds and salt environments common in underground utility corridors. HDPE conduit is compatible with directional boring, plowing, open trenching, and direct burial, making it the most versatile choice for outside-plant fiber runs. Browse the full range of fiber optic products including HDPE-based systems for outside-plant work.

PVC conduit is a cost-effective option for many underground applications and works well in duct banks encased in concrete. It is stiffer than HDPE, which makes it easier to maintain straight runs in open trenches, but it becomes brittle in sustained cold temperatures and is not recommended for trenchless installations that subject it to significant bending stress. Schedule 40 PVC is the standard for most utility conduit applications.

Fiberglass conduit is specified where extreme compressive strength or chemical resistance is required, power substation environments, petrochemical sites, and locations where prolonged direct exposure to UV or heat would degrade HDPE or PVC over time. It is heavier and more expensive than either alternative, so it is typically reserved for above-ground and specialty underground applications where those properties justify the cost.

Innerduct Types and When to Use Each

Innerduct subdivides existing conduit space to allow multiple independent cable pathways in a single duct, protect fiber from damage during future cable pulls in a shared conduit, and enable phased deployment where conduit is installed now but cable is pulled later. Selecting the wrong innerduct type for the environment is one of the most common specification errors in fiber network construction.

The table below summarizes the four primary innerduct types, their environments, and key characteristics.

Innerduct Type

Environment

Install Method

Typical Max Run

Friction Notes

Corrugated HDPE

Outside plant, underground in existing conduit

Pull, jet/blow

Up to 1,000 ft in conduit

Reduced contact area lowers pull friction; less memory than smoothwall

Smoothwall HDPE

Direct burial, underground, trenchless

Pull, jet/blow, plow, bore

Long runs (1,000+ ft)

Higher friction; pre-lubricated versions recommended for long pulls

Riser-Rated (PVC/HDPE)

Interior vertical runs between floors

Pull

Per building design

Corrugated construction; lower friction than smoothwall

Plenum-Rated

Air-handling spaces, raised floors, dropped ceilings

Pull

Per building design

Listed for air-handling environments; higher material cost

One practical note on corrugated HDPE innerduct: the corrugated profile reduces contact area between the cable and the innerduct wall, which meaningfully lowers pulling friction compared to smoothwall. This matters on long runs where tension accumulates. Smoothwall HDPE offers better crush resistance and pathway density, which is why it is preferred for direct burial and trenchless applications, but those gains come with higher friction that must be managed through lubrication or cable blowing rather than conventional pulling.

For cable blowing, also called jetting, smoothwall innerduct is the preferred substrate because the laminar flow of compressed air requires a consistent bore. Fiber blowers are commonly used with microduct and smoothwall systems to install cable over distances that would exceed safe pulling tensions for conventional methods.

Fill Ratio Requirements and Sizing Innerduct Correctly

Fill ratio is the relationship between the cross-sectional area occupied by the cable and the internal cross-sectional area of the innerduct or conduit. Getting it right protects the cable during installation, preserves airflow for thermal management, and leaves capacity for future cable additions without a new civil construction phase.

The standard initial fill ratio for telecommunications pathways is 40%, as referenced in NEC Article 770 and widely adopted in outside-plant specifications. The maximum fill ratio for a fully loaded pathway is 70%. Installing at or above 70% fill creates several compounding problems: pulling tension rises sharply, lubricant distribution becomes uneven, and any future cable addition requires either a new conduit run or removal of existing cable.

The reference table below provides maximum cable OD values for common innerduct sizes at both thresholds.

Innerduct ID

Innerduct Cross-Section Area (in²)

Max Cable OD at 40% Fill (in)

Max Cable OD at 70% Fill (in)

1.0"

0.785

0.63

0.83

1.25"

1.227

0.79

1.04

1.5"

1.767

0.95

1.25

2.0"

3.142

1.26

1.66

3.0"

7.069

1.90

2.49

These values are based on single-cable installations. When multiple cables share an innerduct, the calculation must account for total cable cross-sectional area, not just the largest cable. When three or more cables share a path, random stacking reduces effective fill density, so most engineers apply a packing factor of 1.0 for a single cable and recalculate manually for multi-cable configurations rather than simply summing individual cable areas.

Sizing for future growth also means considering not just cable diameter but cable count. A pathway initially built for a 24-fiber cable may need to accommodate a 96-fiber or 288-fiber cable within five years as bandwidth demand grows. Specifying the next size up in innerduct at installation is almost always less expensive than returning to the corridor later.

Conduit Sealing: Plugs, Caps, and Seal-Offs

Unsealed conduit is one of the most preventable sources of long-term fiber network failure. Moisture, insects, rodent nesting, and soil gases can all enter through an open conduit end and migrate through the system to sensitive equipment locations. Industry practice requires that all conduit and innerduct ends be sealed at the end of each work day, after each cable pull, and permanently after installation is complete.

The right sealing product depends on whether the conduit is occupied or empty, whether the seal is temporary or permanent, and the pressure environment of the installation. Conduit caps and plugs cover the full range of these scenarios, from poly plugs used as temporary end-of-day protection during active construction to fiber optic simplex plugs that seal occupied innerduct ends with a thermoplastic elastomer gasket that creates a watertight and airtight barrier around the cable.

For multi-port applications where several innerducts exit a single conduit opening, common at manholes, handholes, and building entry points, entry seal systems with simplex, triplex, and quadplex port configurations provide organized sealing while accommodating cables of varying outer diameters. These seal assemblies also control the entry of pressurized air in systems using compressed air monitoring for conduit integrity.

Conduit seals and gaskets are the appropriate specification for junction points and transitions where mechanical coupling meets the sealing requirement. At manhole entries, the conduit-to-structure transition must be sealed against groundwater infiltration, not just capped at the open end of the innerduct.

A practical field rule: any innerduct or conduit end that will not have cable pulled through it within 24 hours gets a plug. Any conduit or innerduct that has been pulled and terminated gets a permanent seal rated for the operating environment.

Cable Pulling Practices That Protect the Conduit System

The conduit and innerduct protect the cable, but improper pulling technique can damage both the cable and the pathway at the same time. Pulling tension limits, bend radius compliance, and lubricant selection are the three primary variables that determine whether a pull goes cleanly or results in damaged cable that has to be replaced before the project is complete.

Maximum pulling tension for fiber optic cable varies by cable construction and manufacturer specification, but typical limits range from 100 lbf for small-count distribution cables to 600 lbf for stranded loose-tube outside-plant cables. Never pull on the fiber itself, tension must be applied to the cable's strength member, which is the Kevlar aramid yarn or fiberglass rod inside the jacket. Use a properly rated pulling eye or grip that engages the strength member and includes a swivel to prevent the cable from taking on twist during the pull.

Lubricant selection is frequently underspecified. Petroleum-based lubricants and silicone sprays are incompatible with polyethylene cable jackets, they can cause swelling, stress cracking, and jacket degradation over time. The correct products are water-based or gel-based conduit lubricants specifically listed for use with fiber optic cable and the conduit material in the pathway. Apply lubricant at the conduit entry and at intermediate access points on longer runs, do not rely on a single application at the start of the pull.

Bend radius management at transition points, conduit to pull box, conduit exit at vaults, and building entries, is where most bend radius violations occur. The minimum inside radius for conduit bends with fiber cable is 10 times the cable OD under tension and 20 times at rest. Elbow fittings must be checked against this requirement before installation. Where geometry forces a tight transition, flexible conduit sections or conduit sweep elbows provide the radius control that standard 90-degree fittings do not.

On long runs, consider pulling from the center out to both ends rather than end-to-end. This keeps maximum tension below the cable's rated limit even when total run length exceeds what a single end-to-end pull could safely handle. Intermediate assist equipment or cable blowing via fiber blowers is the preferred method when tension calculations show that a conventional pull would approach the cable's rated limit.

Spacers, Couplings, and Transition Fittings

Duct banks, multiple conduits encased in concrete or buried in parallel, require duct and conduit spacers to maintain consistent separation between conduits during concrete pour or backfill. Without spacers, conduits can shift position during encasement, creating uneven wall coverage that reduces crush protection and makes future hydrojet cleaning more difficult. Base spacers anchor the first layer to the trench floor; intermediate spacers maintain inter-conduit spacing at the design separation.

At joints, transitions, and repair points, conduit couplings must maintain the full inside diameter of the conduit system to prevent cable snagging during pulls. Transition couplings are required where two different conduit materials meet, HDPE to PVC, for example, because the materials have different OD dimensions and wall thickness profiles even at the same nominal pipe size. Using a standard coupling at a material transition typically results in a misaligned bore that creates a catch point inside the duct.

At manholes and handholes, slack management is a critical and frequently overlooked element of the conduit system design. Allow a minimum of 20 to 30 feet of cable slack at each vault location. This slack provides the working length needed for future splicing or repair without having to cut into the main cable run. Innerduct should be secured to manhole racks with the cable's minimum bend radius maintained, do not pull innerduct drum-tight against a rack bracket.

Marking, Identification, and Future-Proofing the Installation

A fiber optic conduit system that cannot be identified in the field will eventually be cut by accident. Marking tape placed 12 inches above the conduit during backfill alerts excavation crews before a blade reaches the duct. Detectable marking tape, which includes a metallic foil that responds to ground-penetrating locators, is the correct specification for buried fiber conduit, not generic warning tape.

Innerduct color coding provides identification at vaults, pull boxes, and building entry points without requiring labels that can degrade over time. Orange is the standard color for fiber innerduct, but using multiple colors within a duct bank is a practical way to distinguish different network segments, ownership boundaries, or fiber types in the same physical pathway. Select innerduct colors at the design stage and document the color-to-circuit mapping in as-built drawings.

Pull tape and mule tape installed in conduit sections that are not yet occupied makes future cable additions simple, the pull tape eliminates the rodding step and allows the next pull to begin immediately. Sequentially marked pull tape that shows footage as it exits the conduit provides an ongoing record of pull length without requiring separate measurement, which is useful both during installation and for post-installation documentation of run lengths.

Some innerduct products are supplied with pull tape preinstalled at the factory. For long runs where installing pull tape separately would add cost and time, specifying preinstalled pull tape eliminates a separate operation and ensures the tape is installed cleanly without kinking. Consult the fiber optic cable protection guide for additional context on how duct and innerduct work together across the full fiber protection system.

Frequently Asked Questions

What is the difference between conduit and innerduct for fiber optic installations?

Conduit is the primary outer pathway, the pipe buried in the ground or routed through a structure that contains and protects everything inside it. Innerduct is a secondary tubing placed inside the conduit to subdivide the available space into multiple independent cable pathways. A single 4-inch conduit, for example, can hold three or more innerducts, each capable of carrying a separate fiber cable or cable bundle. Conduit provides the structural protection against excavation damage, crush, and moisture; innerduct provides cable-level organization, reduced friction, and the ability to pull additional cables in the future without disturbing existing installations.

Can fiber optic cable be pulled directly through conduit without innerduct?

Yes, fiber optic cable can be pulled directly through conduit without innerduct, and this is common practice in single-cable runs where future cable additions are not anticipated. However, direct-fill installation means any future cable pull in the same conduit has to work around the existing cable, which can entangle or damage it. When there is any possibility of future cable additions, which is almost always the case in backbone and outside-plant infrastructure, installing innerduct during the initial conduit installation costs very little and avoids a significantly more expensive retrofit later.

What fill ratio should I use when specifying innerduct for a new fiber run?

Plan for a 40% initial fill ratio. This provides enough clearance between the cable and the innerduct wall to allow the cable to pull and flex through bends without binding, leaves room for thermal expansion, and preserves capacity for a future cable addition within the same innerduct. The NEC and most outside-plant standards set 70% as the maximum fill ratio. Installing close to 70% at the outset eliminates future capacity and increases pulling tension substantially, so it is not a recommended starting point except in constrained retrofit situations where no other option is practical.

What lubricant is safe to use with fiber optic cable in HDPE innerduct?

Use water-based or gel-based cable pulling lubricants specifically listed for fiber optic cable and the conduit or innerduct material in use. Polywater FTT and similar products are widely used and compatible with both polyethylene cable jackets and HDPE innerduct. Avoid petroleum-based products, silicone sprays, and general-purpose oils, all of these are chemically incompatible with polyethylene jacket materials and can cause stress cracking or jacket swelling that degrades the cable over time. Never use liquid detergent as a substitute; it promotes stress cracking in polyethylene at the molecular level even if it appears harmless during the pull.

How often should I seal conduit and innerduct during an active project?

Seal all conduit and innerduct ends at the end of every work day, even if the project will resume the next morning. Moisture, insects, and soil gases can infiltrate quickly through open conduit ends, and a single night of rain is enough to introduce water into a conduit system that took days to install. Temporary poly plugs or end caps serve this function during active construction. Once a cable has been pulled and the installation is permanent, replace temporary seals with the appropriate permanent plug or seal assembly rated for the operating environment and any pressure requirements of the system.

How do I prevent the innerduct from twisting during installation?

Innerduct twist, sometimes called helixing, occurs when the innerduct is allowed to rotate on the reel or when it binds against the duct wall at a bend and corkscrew-winds into the remaining run. Twisting dramatically increases pulling tension because the effective length of the innerduct's bore increases with each revolution of twist. Corrugated innerduct has less rotational memory than smoothwall and tends to lay flatter in the duct, which helps reduce twist. Control twist by keeping the innerduct reel on a proper stand that allows free rotation, maintaining steady pulling speed, and monitoring for changes in pulling resistance that indicate the innerduct is binding. If twisting occurs, allow slack to relax out of the innerduct at a manhole or access point before continuing the pull.

What is the minimum bend radius for fiber optic conduit?

For conduit bends, the installed radius should be at least 10 times the outer diameter of the fiber optic cable that will be pulled through it, measured at the inside of the bend and calculated under tension during the pull. At rest, the cable should not be forced against a bend tighter than 20 times its OD. These values apply to the cable, not just the conduit, the conduit bend must be large enough to accommodate the cable's own bend radius requirements within the bore. Standard 90-degree elbow fittings frequently fail this test for larger fiber cables, which is why sweep elbows and flexible conduit transitions are specified at turns in fiber pathways.
