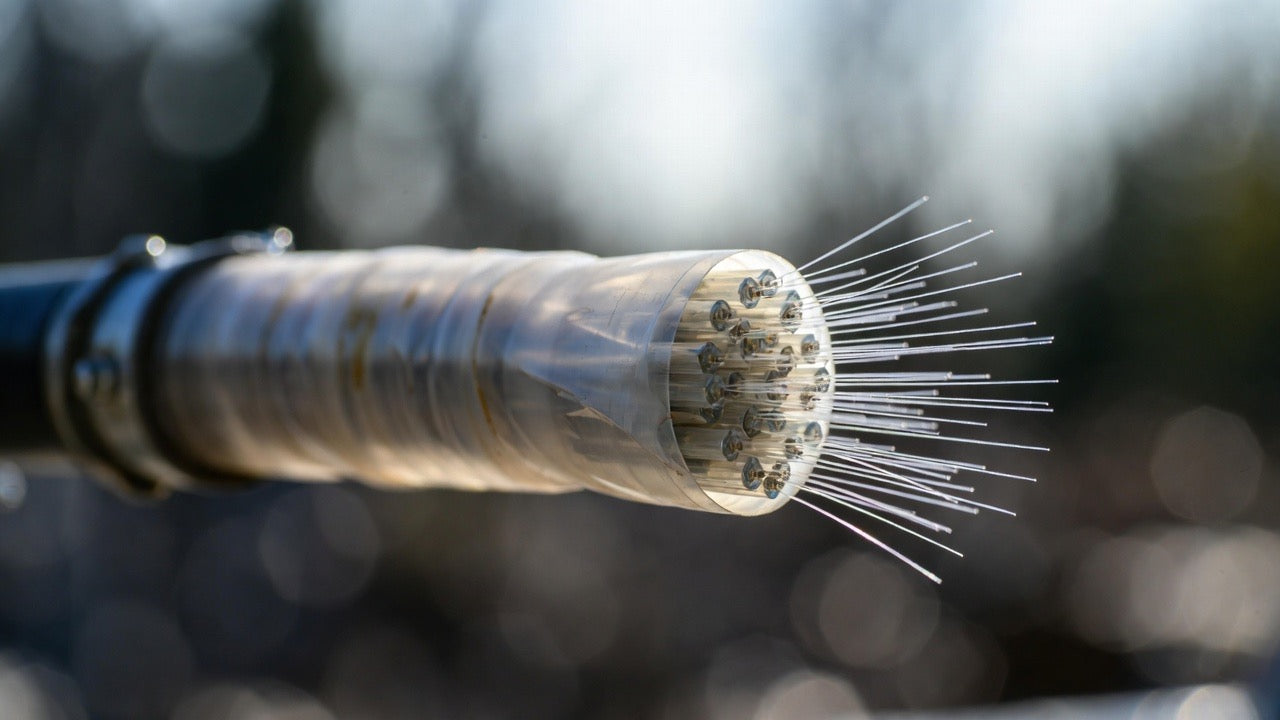

What Are Fiber Optics and the Best Practices for Cable Protection with Duct and Innerduct

Fiber optic cable carries the vast majority of the world's internet traffic, telephone calls, and streaming data. Yet the glass strands inside that cable are thinner than a human hair and extremely sensitive to crushing, bending, and moisture. The duct and innerduct systems that surround fiber cable underground are not secondary components. They are the primary reason a fiber network lasts 25 years instead of failing in the first 5.

For contractors and engineers who install and maintain underground telecommunications infrastructure, understanding what fiber optics are (and what destroys them) is the foundation for selecting the right conduit, innerduct, and installation methods. This guide covers the basics of fiber optic technology, the threats that damage cable in the field, and the duct and innerduct best practices that prevent those failures.

What Are Fiber Optics?

Fiber optics is a technology that transmits data as pulses of light through thin strands of glass or plastic called optical fibers. Each fiber strand consists of three layers: a core, a cladding, and a protective coating.

The core is the innermost layer, made of ultra-pure glass (silica). It serves as the pathway for light. Core diameters range from about 8 to 9 microns for single-mode fiber up to 50 or 62.5 microns for multimode fiber. For reference, a human hair is roughly 70 microns thick.

The cladding surrounds the core and is also made of glass, but with a slightly lower refractive index. This difference in refractive index creates a boundary that reflects light back into the core through a principle called total internal reflection. Light entering the core at the correct angle bounces continuously off the cladding and travels the length of the fiber without escaping.

The coating (also called a buffer) is a protective plastic layer that shields the glass from physical damage and moisture. Outside of the individual fiber, cable manufacturers add strength members (aramid yarn or fiberglass rods), gel or dry water-blocking materials, and an outer jacket to form the completed fiber optic cable.

Single-Mode vs. Multimode Fiber

Fiber optic cable comes in two primary types, each designed for different distances and applications.

Single-mode fiber has a small core (8 to 10 microns) that allows only one path of light to travel through it. Because the light follows a single, direct route, signal distortion stays extremely low, and data can travel 60 miles or more before it needs to be regenerated. Single-mode fiber uses laser light sources operating at 1310 nm or 1550 nm wavelengths. It is the standard for long-haul telecommunications, internet backbone networks, and FTTH (fiber-to-the-home) deployments.

Multimode fiber has a larger core (50 or 62.5 microns) that allows multiple paths of light to travel simultaneously. This creates higher bandwidth over short distances but introduces modal dispersion, where different light paths arrive at the receiver at slightly different times. That dispersion limits both distance and data rate. Multimode fiber typically uses LED or VCSEL light sources at 850 nm and is classified into grades (OM1 through OM5) based on bandwidth performance. It is commonly used inside data centers, campus networks, and building LANs where cable runs stay under 300 to 550 meters.

Why Fiber Optic Cable Needs Physical Protection

Fiber optic cable is engineered to carry data at the speed of light, but the glass core that makes this possible is fragile. Two categories of damage threaten fiber performance in the field: macrobending and microbending.

Macrobending occurs when cable bends beyond its minimum bend radius. Industry standards (TIA/EIA-568-B.3) specify a bend radius multiplier of 20 times the cable outer diameter during pulling and 10 times at rest. A 12-fiber cable with a 6 mm outer diameter, for example, needs a minimum bend radius of 120 mm (about 4.7 inches) during installation. Bends tighter than this allow light to escape the core, causing measurable signal loss and, in severe cases, permanent fiber breakage.

Microbending results from localized pressure on the cable jacket, creating tiny invisible deformations at the core-cladding boundary. Rocks in backfill, improperly secured cable in trays, or crushing force around tight bends all cause microbending. Unlike macrobending, microbending is difficult to detect visually and often shows up only during OTDR (optical time-domain reflectometer) testing after installation.

Beyond bending, fiber cable faces additional threats underground: moisture infiltration that degrades the glass over time, rodent damage from gnawing through unprotected jackets, dig-in damage from future excavation, and thermal stress from soil temperature swings. Duct and innerduct systems address all of these threats by creating a controlled, protective pathway between the cable and the surrounding environment.

Duct Systems for Underground Fiber

The outer duct (also called conduit) forms the primary protective structure for underground fiber runs. Three materials dominate fiber optic duct applications.

HDPE (high-density polyethylene) is the most widely used duct material for outside plant fiber installations. HDPE is weatherproof, chemical-resistant, flexible enough to handle ground movement and freeze/thaw cycles, and available in continuous coils that minimize the number of field joints on long runs. It meets ASTM D3350 and ASTM F2160 standards. HDPE is the only practical option for directional boring (HDD), where the conduit must withstand pulling forces exceeding 600 pounds and lateral compression during the bore. PVC would crack under the same conditions.

PVC conduit telephone duct (Type C, bell end) is a standard choice for open-trench fiber installations, particularly in duct bank configurations where conduits are arranged in rows and encased in concrete. PVC offers good crush resistance at a lower material cost than HDPE, and the bell-end design simplifies joint assembly with solvent cement. PVC duct for telecom applications is manufactured to NEMA TC-6 and TC-8 standards.

Fiberglass (RTRC) duct is specified for high-temperature, corrosive, or chemically aggressive environments where both PVC and HDPE would degrade. Industrial facilities, coastal installations, and areas with contaminated soils are common applications.

Regardless of material, duct systems provide the same core benefits for fiber: mechanical protection from soil loads and surface traffic, a smooth pathway for cable pulling or blowing, isolation from moisture and ground contaminants, and the ability to replace or add cable in the future without re-excavating the route.

Innerduct: Subdividing and Protecting the Pathway

Innerduct is a smaller-diameter conduit installed inside the outer duct. It serves two critical functions: it subdivides the available space inside a larger conduit so that multiple cable runs can share the same pathway, and it adds a second layer of mechanical protection around each individual cable.

HDPE is the standard material for innerduct used in outside plant environments. It is weather-resistant, UV-stable, and manufactured with low-friction interior surfaces (or pre-lubricated linings like SILICORE) that reduce cable-pulling tension significantly.

Innerduct comes in several wall profiles, each designed for different installation conditions.

Smoothwall HDPE innerduct has higher tensile strength and provides the best protection for direct burial and directional boring applications. Its rigid structure holds up under soil pressure and installation forces. However, it creates more friction during cable pulling than corrugated alternatives, which is why pre-lubricated or ribbed versions are often specified for longer runs.

Corrugated HDPE innerduct is lighter, more flexible, and produces less friction during cable pulls. The corrugated surface reduces contact area between the cable jacket and the innerduct wall. It works well for shorter runs (under 1,000 feet) inside existing conduit but is not rated for direct burial because it lacks the crush resistance of smoothwall designs.

Ribbed innerduct features internal longitudinal ridges that reduce the coefficient of friction below 0.12 (well under the Telcordia GRE-3155 standard of 0.15). This design supports longer cable pulls without exceeding the cable manufacturer's maximum pulling tension, which is typically 600 lbf (2,700 N) for standard outside plant fiber.

Microduct Systems for Scalable Fiber Networks

Microduct is a miniaturized version of innerduct, typically ranging from 5 mm to 16 mm in diameter. Microducts can be bundled together under a single oversheath and installed in a single trench, providing multiple independent pathways for fiber cable in the same footprint as a single traditional conduit.

FuturePath 8-way microduct bundles eight separate HDPE pathways with SILICORE lining into one package. Each individual pathway can house a separate fiber cable, and cables can be added incrementally as network demand grows. There is no need to dig again or secure additional permits to expand capacity.

Microduct systems are designed for air-blown cable installation rather than traditional pulling. Compressed air propels the cable through the duct at speeds that can cover over a mile in a single continuous run. This method virtually eliminates pulling tension on the cable, which is a major advantage for protecting the glass fibers during placement. Micro duct installation kits provide the connectors, seals, and coupling hardware needed for clean, airtight joints that maintain blowing efficiency across the full run.

Microduct connections must be airtight and properly aligned to maintain blowing pressure. A clear-lock microduct coupler provides a transparent, tool-free connection that lets installers visually confirm full insertion and alignment before proceeding with the cable blow.

Best Practices for Protecting Fiber Cable in Duct and Innerduct

Proper duct and innerduct selection is only part of the equation. How the system is installed and maintained determines whether the fiber cable inside it survives for decades or fails within years.

• Maintain fill ratios. The NEC and industry guidelines recommend no more than 40% fill for the initial cable installation to allow room for future additions. Maximum fill should not exceed 70%. For innerduct, the inside diameter should be at least twice the cable's outer diameter when pulling cable. For air-blown installations, the cable should be only slightly smaller than the duct to maximize airflow efficiency.

• Respect minimum bend radius. Every direction change in the duct route must maintain the cable manufacturer's specified bend radius, both during and after installation. Standard practice is 20 times the cable OD under tension and 10 times at rest. Use sweep elbows or large-radius bends rather than sharp fittings. A fiber optic jamb skid protects cable from abrasion and crushing at manhole and handhole entry points where the duct route changes direction and sidewall pressure is highest.

• Seal all duct openings. Unsealed duct ends allow water, mud, insects, and debris to enter the pathway. Even before cable is installed, open conduit can fill with enough sediment to block future cable placement. Vinyl end caps seal duct ends during and after construction. For permanent installations, EPDM mechanical seals provide a watertight barrier around the cable where it enters manholes or handholes.

• Control pulling tension. Outside plant fiber cable is rated for a maximum installation tension of 600 lbf (2,700 N). Exceeding this limit causes microbending that may not be visible but will degrade signal quality over time. Use a tensiometer to monitor pulling force in real time, apply cable lubricant on all pulls, and add pull boxes or intermediate access points on runs exceeding 400 feet or with more than two 90-degree bends.

• Support cable at access points. Inside manholes, handholes, and vaults, fiber cable should be supported on Soft-Tuff cable racks that cradle the cable without creating pressure points. Hard edges, metal brackets without padding, and zip ties cinched too tightly all cause microbending that accumulates into measurable attenuation over the life of the cable.

• Test after installation. Every fiber run should be tested with an OTDR after placement to verify attenuation, identify reflective events (indicating bad splices or connectors), and confirm that no macrobends or microbends exceed acceptable limits. Catching problems before the duct is backfilled saves thousands of dollars compared to diagnosing failures after the route is buried and paved.

Choosing Between Direct Burial and Conduit-Protected Fiber

Some fiber optic cables are engineered for direct burial with armored jackets (corrugated steel or dielectric armor) rated to resist crushing forces up to 1,000 N/cm. Direct burial eliminates the cost of duct material and simplifies installation. However, it also eliminates the ability to replace or add cable without re-excavating the entire route.

Conduit-protected installations cost more up front but provide long-term advantages that direct burial cannot match: easier future cable replacement, the ability to add capacity by pulling or blowing additional cables, shallower burial depths (12 to 24 inches vs. 24 to 48 inches for direct burial), and significantly better protection against dig-in damage, rodents, and ground movement. For most commercial and municipal fiber projects, the added cost of duct and innerduct pays for itself the first time a cable needs to be replaced or the network needs to expand.

About Utility Pipe Supply

Utility Pipe Supply is a certified Woman-Owned Business Enterprise (WBE) headquartered in Illinois, supplying conduit, duct, innerduct, microduct, and installation accessories to telecommunications and electrical contractors across the country. With in-stock inventory across HDPE, PVC, and fiberglass systems, we help crews build the underground infrastructure that keeps fiber networks running.

Frequently Asked Questions

What are fiber optics used for?

Fiber optics carry data as pulses of light through glass or plastic strands. They are used for internet backbone networks, telephone systems, cable television, FTTH (fiber-to-the-home) connections, data center interconnects, and industrial sensing applications. Fiber has largely replaced copper for long-distance and high-bandwidth data transmission because it offers higher speeds, lower signal loss, and immunity to electromagnetic interference.

What is the difference between single-mode and multimode fiber?

Single-mode fiber has a small core (8 to 10 microns) that carries one light path, allowing data to travel 60+ miles with minimal signal loss. Multimode fiber has a larger core (50 or 62.5 microns) that carries multiple light paths, supporting higher bandwidth over short distances (up to about 550 meters). Single-mode is standard for telecommunications and FTTH. Multimode is common in data centers and campus LANs.

What is innerduct and why is it used with fiber optic cable?

Innerduct is a smaller-diameter conduit installed inside a larger outer duct. It subdivides the available space so multiple fiber cables can share a single pathway, and it adds a second layer of mechanical protection around each cable. HDPE is the standard innerduct material for outside plant installations because of its durability, flexibility, and low friction during cable placement.

What is the minimum bend radius for fiber optic cable?

Industry standards specify a minimum bend radius of 20 times the cable outer diameter during installation (when the cable is under tension) and 10 times the cable outer diameter at rest. Bending tighter than these limits causes light to escape the core, resulting in signal loss, and in extreme cases, permanent fiber breakage.

How deep should an underground fiber optic duct be buried?

Burial depth depends on local codes, the type of conduit, and the installation environment. Typical depths range from 18 to 36 inches for conduit-protected fiber. Areas with vehicular traffic, highway crossings, or stream crossings may require 48 to 60 inches. Always verify local AHJ (authority having jurisdiction) requirements before trenching.

What is the advantage of microduct over traditional innerduct?

Microduct bundles multiple small pathways (typically 5 to 16 mm diameter) into a single package, allowing incremental fiber deployment without re-excavation. Fiber is installed using air-blowing rather than pulling, which virtually eliminates mechanical stress on the cable. Microduct systems like FuturePath provide 8 or more independent pathways in the footprint of a single traditional conduit.

Can fiber optic cable be installed without conduit?

Yes. Armored direct-burial fiber cables are designed for installation without conduit at depths of 24 to 48 inches. However, direct burial eliminates the ability to replace or add cable without digging up the entire route. For most commercial and municipal projects, conduit-protected installations provide better long-term value through easier maintenance, future expandability, and reduced repair costs.
