Trenchless Technology in Telecom Projects with Directional Drilling and Duct Banks

Every mile of new fiber optic network needs a pathway underground. The question for telecom contractors is not whether to put conduit in the ground, but how to get it there with the least disruption, the lowest restoration cost, and the fastest timeline.

Trenchless technology answers that question. By installing conduit beneath roads, sidewalks, driveways, and landscaping without cutting them open, trenchless methods have become the standard for telecom construction in urban and suburban environments. When paired with properly designed duct bank systems at termination and access points, trenchless installations create conduit networks that protect fiber cable and support future expansion for decades.

This guide covers the trenchless methods used in telecom conduit installation, the duct bank configurations that tie those runs together, and the material and design decisions that determine whether a conduit system performs for 5 years or 50.

What Is Trenchless Technology?

Trenchless technology is a category of construction methods that install, replace, or repair underground infrastructure with minimal excavation from the surface. Instead of digging a continuous open trench along the full length of a conduit route, trenchless methods create a bore path beneath the surface using specialized drilling, boring, or ramming equipment.

The concept has been in use since the 1930s, when horizontal auger boring was first used to push steel casings under railroad crossings. Modern trenchless technology has expanded into a range of steerable, GPS-guided methods capable of installing conduit over distances of several thousand feet in a single bore.

For telecom projects specifically, trenchless methods offer four primary advantages over open trenching: reduced surface disruption (no cutting and replacing pavement, curbing, or landscaping), faster installation speeds (an experienced HDD crew can install up to 600 feet of conduit per day compared to roughly 100 feet per day for open-cut), lower total project cost when restoration expenses are factored in, and significantly less environmental impact in sensitive areas near waterways, wetlands, and protected habitats.

Trenchless Methods Used in Telecom Construction

Several trenchless technologies are available for conduit installation, but not all are equally suited to telecom applications. The method a contractor selects depends on bore length, conduit diameter, soil conditions, depth requirements, and site access. The three most common methods for telecom work are horizontal directional drilling, horizontal auger boring, and microtrenching.

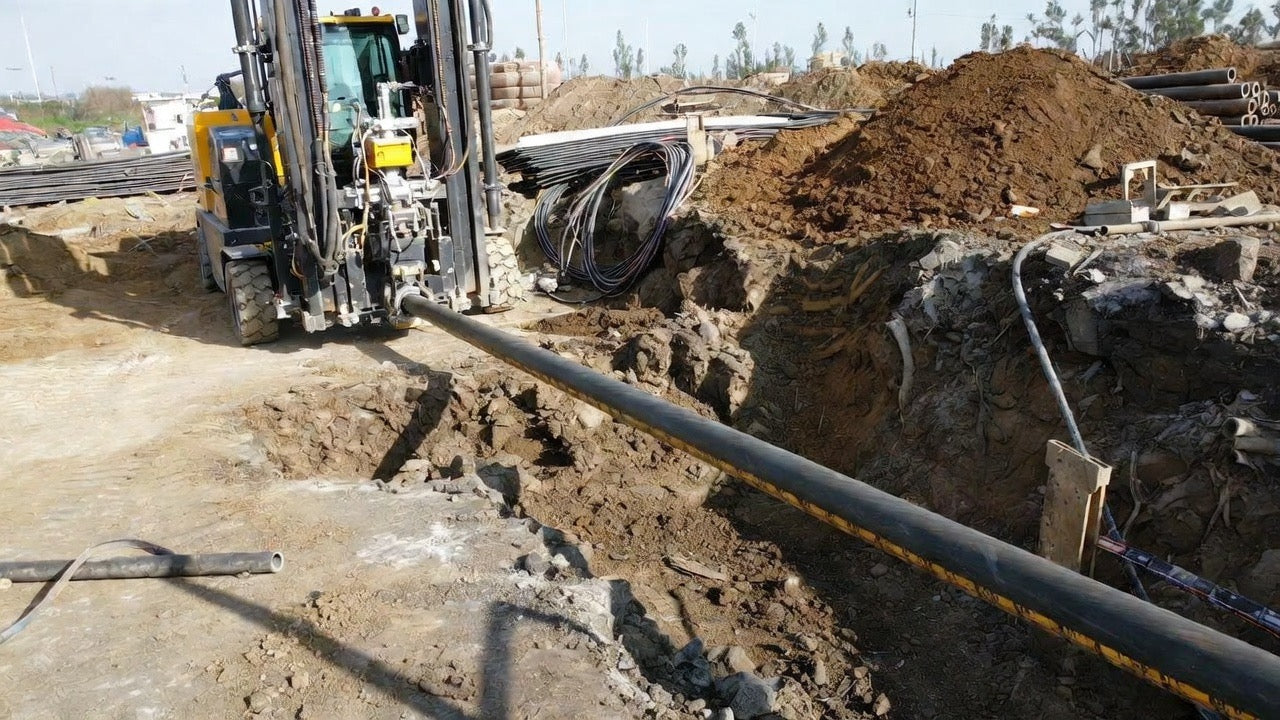

Horizontal Directional Drilling (HDD)

Horizontal directional drilling is the most widely used trenchless method for telecom conduit installation. HDD uses a surface-launched drilling rig that creates a steerable pilot bore along a predetermined underground path. After the pilot bore reaches the exit point, a back reamer widens the hole to accommodate the conduit, which is then pulled back through the enlarged bore from the exit side.

HDD operates in three phases. During the pilot bore, the drill head follows a planned alignment using a sonde (transmitter) inside the housing and a walkover or wireline locating receiver above ground. The operator can adjust steering in real time to navigate around existing utilities and maintain the correct depth. During the ream phase, one or more passes with progressively larger reamers open the bore to the required diameter. Bentonite drilling fluid is pumped into the bore during both phases to stabilize the hole, reduce friction, and carry soil cuttings to the surface. During the pullback phase, the conduit is attached to the reamer or a pulling head and drawn back through the bore to the entry point.

HDD is effective for bore lengths from 300 feet up to 10,000 feet and works in a wide range of soil types including clay, silt, sand, and soft rock. It requires only small entry and exit pits, which makes it particularly suited to congested urban environments where road closures and surface restoration are expensive. The primary conduit material for HDD installations is HDPE because it can withstand the pulling forces (often exceeding 600 pounds) and lateral compression that occur during the pullback. PVC is not suitable for HDD because it fractures under these same stresses.

For telecom projects requiring multiple pathways in a single bore, FuturePath 8-way microduct bundles eight SILICORE-lined HDPE microducts into one package. This allows a single HDD bore to provide eight independent fiber pathways, each of which can be lit with cable on its own schedule as network demand grows.

Horizontal Auger Boring (Jack and Bore)

Horizontal auger boring, commonly called jack and bore, uses a rotating auger inside a steel casing that is jacked horizontally through the soil from a launch pit to a receiving pit. The auger removes soil as the casing advances, and the process installs both the protective casing and the bore simultaneously. After the casing is in place, the telecom conduit is pushed through inside it, separated from the casing wall by plastic spacers.

Jack and bore is best suited for shorter, straight-line crossings of 20 to 500 feet, typically under roads, railroad tracks, driveways, or other structures that cannot be disturbed. It works well in stable soils like clay and stiff sand and does not require drilling fluid. The method is also less expensive than HDD for short distances because the equipment is simpler and more widely available among utility contractors.

The main limitation is that jack and bore is not steerable. The casing follows a straight line between the launch and receiving pits, so it cannot navigate around subsurface obstacles the way HDD can. It also requires two full-size excavation pits, which increases surface disruption compared to the small entry and exit points used in HDD.

Microtrenching

Microtrenching is a newer method that cuts a narrow slot (1 to 2 inches wide and 12 to 24 inches deep) along curb lines or sidewalk edges using a diamond-blade saw. Microduct is placed into the slot and backfilled with a grout or restoration material. Fiber is then blown into the microduct using compressed air.

This method is gaining traction for last-mile FTTH (fiber-to-the-home) deployment in urban areas because it is extremely fast and creates almost no surface disruption. A microtrenching crew can install several thousand feet of microduct per day. However, the shallow burial depth limits its use to areas without heavy vehicular loading, and the narrow trench width means it is restricted to small-diameter microduct rather than standard 2-inch or 4-inch conduit.

Trenchless Method Comparison for Telecom Projects

Why HDPE Is the Standard for Trenchless Conduit

HDPE (high-density polyethylene) dominates trenchless telecom installations for reasons that go beyond tradition. The material properties of HDPE align directly with the forces conduit experiences during and after trenchless installation.

HDPE is flexible enough to bend around underground obstacles and absorb ground movement from freeze/thaw cycles without cracking. It has a low coefficient of friction that reduces pulling tension during the pullback phase of HDD installations. It is chemically resistant to the bentonite drilling fluids used in HDD and to the corrosive elements in most soil types. And it is available in continuous coil lengths (up to several thousand feet on a single reel), which means fewer field joints along the bore path.

HDPE conduit for trenchless applications is manufactured to ASTM D3350 (material specification) and ASTM F2160 (product specification for coilable conduit). Wall thickness is measured as SDR (standard dimension ratio), and the appropriate SDR depends on the installation method and soil conditions. SDR 11 (thicker wall) is specified for directional boring and plowing where the conduit faces higher compressive forces. SDR 13.5 (thinner wall) is acceptable for less demanding installations.

For connection points along HDPE runs, a double E-Loc coupling provides a tool-free mechanical joint that maintains a watertight seal without heat fusion equipment. This speeds up assembly at manholes, handholes, and transition points where HDPE conduit enters or exits duct bank structures.

Duct Bank Construction: Where Trenchless Meets Structure

Trenchless methods install conduit along the horizontal route, but at every termination point, intersection, and access location, the conduit enters a duct bank. A duct bank is an assembly of multiple conduits arranged in rows and columns, held in alignment by plastic spacers, and typically encased in concrete. Duct banks connect trenchless conduit runs to manholes, handholes, building entries, and equipment pads.

Telecom duct banks commonly use 4-inch PVC rigid conduit Schedule 40 as the industry-standard conduit size. PVC is the preferred material for concrete-encased duct banks (rather than HDPE) because its rigid structure holds alignment during the concrete pour without floating or shifting. PVC conduit for duct bank applications is specified as Type DB (duct bank grade), rated for 90-degree Celsius cable temperatures when encased in concrete, and manufactured to UL 651 and NEMA TC-6/TC-8 standards.

Duct Bank Configurations

Duct bank layouts depend on the number of conduits required, the available trench width, and the capacity of the manholes or handholes at each end. Common telecom configurations include:

A 2x2 configuration (4 conduits) provides a compact layout for branch routes with moderate cable capacity. A 2x3 configuration (6 conduits) is the most common layout for main-line telecom routes, balancing capacity with trench width. A 3x3 configuration (9 conduits) is used for high-capacity backbone routes or shared utility corridors carrying both power and telecom.

Regardless of the configuration, conduit spacers are placed at 5- to 8-foot intervals to maintain uniform separation. Spacing between conduits is maintained at a minimum of 3 inches (center to center), and concrete encasement provides a minimum of 3 inches of cover on all sides of the outermost conduits. Concrete strength for telecom duct banks is typically specified at 3,000 psi at 28 days.

Direction Changes and Sweeps

Where duct banks change direction, DB-100 PVC sweeps provide gradual-radius bends that maintain adequate cable pulling space. Sweep elbows for duct bank applications are manufactured with a minimum bend radius of 24 to 48 inches (depending on conduit size) to prevent cable damage during pulling. Sharp 90-degree elbows are not permitted in telecom duct banks because they create excessive sidewall pressure that can crush fiber optic cable.

Duct Bank Depth and Protection

The minimum depth of cover for most telecom duct bank designs is 24 inches from finished grade to the top of the concrete encasement. Road crossings and areas subject to heavy vehicular traffic may require 36 inches or more, and some jurisdictions specify depths up to 48 inches along highways or at stream crossings.

A woven barricade tape with 500-pound tensile strength is buried approximately 12 inches above the duct bank as a warning layer. This tape alerts future excavation crews to the presence of buried conduit before they reach the concrete encasement with a backhoe bucket. The high tensile strength prevents the tape from tearing apart under incidental contact with digging equipment.

Connecting Trenchless Runs to Duct Banks

The transition between a trenchless HDPE conduit run and a concrete-encased PVC duct bank is one of the most critical points in a telecom conduit system. This transition typically occurs at a manhole or handhole, and it must account for differences in material, thermal expansion rates, and joint types.

HDPE conduit from the trenchless bore enters the manhole wall through a cored opening. The conduit end is fitted with a bell-end adapter or mechanical coupling that creates a watertight seal against the manhole wall. Inside the manhole, the HDPE transitions to PVC duct bank conduit using appropriate adapters.

All conduit ends that are not immediately receiving cable should be sealed with vinyl end caps to prevent water, mud, and debris from entering the system. Even a small amount of sediment inside a conduit can block future cable blowing operations or increase pulling tension beyond the cable's rated maximum.

Inside the manhole, a 60-degree quad block provides a controlled pathway for cable as it transitions between the incoming conduit and the outgoing duct bank route. The quad block maintains the cable's minimum bend radius (typically 20 times the cable outer diameter under tension) while supporting up to 4,000 pounds of pulling force. Without this controlled pathway, cable pulled through manhole openings is subject to crushing and abrasion against hard edges that cause microbending and long-term signal degradation.

Best Practices for Trenchless Telecom Installations

Successful trenchless telecom projects depend as much on planning and material handling as they do on the drilling itself. These best practices apply across HDD, jack and bore, and microtrenching methods.

• Locate existing utilities before every bore. Contact 811 (One Call) and pothole all utility crossings within the planned bore path. Vacuum excavation is the preferred method for exposing existing lines because it avoids the damage that mechanical digging can cause. Cross bores through existing sewer or gas lines are one of the most dangerous and costly failures in trenchless construction.

• Match conduit SDR to the installation method. Use SDR 11 for HDD and plowing, where conduit faces higher compressive and tensile forces. SDR 13.5 is acceptable for less demanding installations. Using a thinner wall than conditions require risks conduit collapse during or after installation.

• Pull conduit from the exit side during HDD pullback. The conduit must travel through the reamed bore with the drilling fluid still in place, and pulling from the exit side ensures the conduit follows the established bore path without kinking or folding.

• Mandrel test every conduit after installation. Before pulling cable, pass a mandrel (sized 1/4 inch smaller than the conduit ID) through each conduit to verify roundness and detect any points of collapse, blockage, or deformation. Follow with a pull rope or pull tape so the conduit is ready for cable placement.

• Pour duct bank concrete in lifts and vibrate to eliminate voids. Voids in the concrete encasement reduce crush resistance and create points where water can pool against the conduit. Mechanical vibration during the pour ensures complete contact between the concrete and all conduit surfaces.

• Slope duct banks toward manholes. There is no such thing as a waterproof duct bank. All duct bank systems accumulate some water over time through condensation, joint seepage, or ground infiltration. Sloping the conduit run toward the nearest manhole or handhole ensures water drains to a sump point rather than pooling inside the conduit.

About Utility Pipe Supply

Utility Pipe Supply is a certified Woman-Owned Business Enterprise (WBE) headquartered in Illinois, supplying HDPE conduit, PVC duct, microduct, fittings, and installation accessories to telecom and electrical contractors nationwide. With in-stock inventory across SDR 11, SDR 13.5, and Schedule 40 products, we help crews build the underground conduit systems that keep networks connected.

Frequently Asked Questions

What is trenchless technology?

Trenchless technology is a group of construction methods that install underground conduit, pipe, or cable with minimal surface excavation. Instead of digging an open trench along the full route, trenchless methods create a bore path beneath the surface using specialized equipment. Common trenchless methods for telecom include horizontal directional drilling (HDD), horizontal auger boring (jack and bore), and microtrenching.

What is horizontal directional drilling used for in telecom?

HDD is used to install HDPE conduit underground for fiber optic and telecommunications cable. The method creates a steerable bore path beneath roads, driveways, waterways, and other surface structures without disturbing them. HDD is the most common trenchless method for telecom because it handles long bore distances (up to 10,000 feet), works in most soil types, and requires only small entry and exit pits.

Why is HDPE used instead of PVC for directional drilling?

HDPE can withstand the pulling forces and lateral compression that occur during the HDD pullback phase. PVC is too rigid and brittle for these conditions and will crack or shatter under the same stresses. HDPE's flexibility also allows it to follow curved bore paths and absorb ground movement after installation without fracturing.

What is a duct bank in telecom construction?

A duct bank is an assembly of multiple conduits arranged in rows and columns, held in alignment by spacers, and typically encased in concrete. Duct banks are built at termination points, access locations, and intersections where trenchless conduit runs connect to manholes, handholes, and building entries. The standard conduit for concrete-encased telecom duct banks is 4-inch PVC Schedule 40.

How deep should a telecom duct bank be buried?

Most telecom duct bank specifications require a minimum of 24 inches of cover from finished grade to the top of the concrete encasement. Road crossings and high-traffic areas may require 36 to 48 inches. Highway crossings and stream crossings can require 48 to 60 inches. Always verify local AHJ (authority having jurisdiction) requirements before construction.

What is the difference between HDD and jack and bore?

HDD uses a steerable drill to create a curved bore path over long distances (300 to 10,000 feet) without launch or receiving pits. Jack and bore uses a rotating auger inside a steel casing pushed in a straight line from a launch pit to a receiving pit, typically over short distances (20 to 500 feet). HDD is more versatile and suited to longer runs, while jack and bore is simpler and less expensive for short road or rail crossings.

Can fiber optic cable be blown through conduit installed by HDD?

Yes. After HDPE conduit is installed by HDD and mandrel-tested, fiber optic cable can be blown through it using compressed air. Air-blown installation propels the cable through the conduit at high speed with virtually no mechanical tension on the fiber. For longer runs or conduit with multiple bends, blowing is preferred over pulling because it eliminates the sidewall pressure and tension that can damage fiber glass strands.
