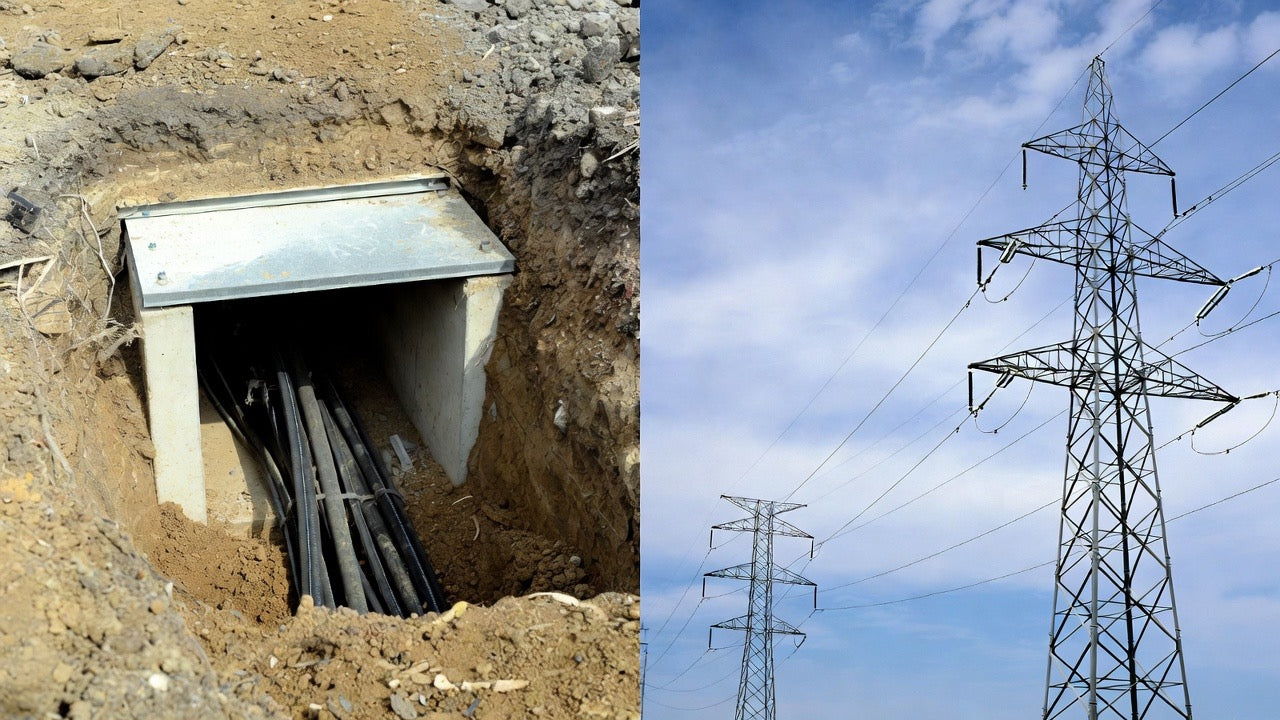

Types of Power Lines Compared: Underground vs. Overhead Utility Systems

Types of Power Lines Compared: Underground vs. Overhead Utility Systems

Every light switch, data center rack, and EV charging station depends on the same thing: power lines connecting a generation source to the point of use. But the types of power lines that carry that electricity vary significantly in design, voltage, cost, and the infrastructure required to install and maintain them. For contractors and engineers who build the conduit systems that protect underground cables, understanding how power lines are classified,and why utilities are increasingly investing in underground systems, directly affects the materials, specifications, and labor involved in every project.

This guide breaks down the major types of power lines by function and installation method, compares overhead and underground systems across cost, reliability, and maintenance, and explains the conduit infrastructure that makes underground power distribution possible.

How Power Lines Are Classified

Power lines fall into three functional categories based on where they sit in the grid and the voltage they carry. Each category serves a different role in moving electricity from the generating station to the end user.

Transmission lines carry bulk power over long distances at high voltages, typically between 115 kV and 765 kV. These are the large steel-lattice tower lines that cross rural and semi-rural landscapes. High voltage reduces current for a given amount of power, which minimizes energy loss over distance. In the U.S., more than 97% of transmission line miles are overhead, with underground transmission reserved for dense urban areas and water crossings where overhead routing is physically impossible or prohibited.

Subtransmission lines operate at intermediate voltages, generally between 23 kV and 69 kV, though some systems run up to 115 kV. They carry power from bulk transmission substations to local distribution substations. Subtransmission can be overhead or underground, and many urban utilities are converting these lines to underground installations as part of grid modernization programs.

Distribution lines are the final link, carrying power from local substations to homes, businesses, and commercial facilities. Distribution voltages typically range from 4 kV to 25 kV on the primary side, stepping down to 120/240V for residential service. This is where the overhead-versus-underground decision has the most practical impact, and where contractors encounter the majority of their conduit installation work.

Overhead Power Lines: Structure and Limitations

Overhead power lines use bare or covered conductors suspended from wood poles, steel poles, or lattice towers. The surrounding air provides both cooling and insulation, which is why overhead remains the default for high-voltage transmission, air is free, and it handles heat dissipation better than any buried system.

Standard overhead distribution uses aluminum conductors (ACSR, aluminum conductor, steel reinforced) strung between poles spaced 100 to 300 feet apart. Transformers mount directly on the poles, and service drops connect to individual buildings. The system is straightforward to build and relatively quick to repair: a line crew can replace a damaged pole and re-string conductors in a matter of hours.

The limitations of overhead systems are well documented. Wind, ice loading, falling trees, and vehicle collisions with poles cause the majority of power outages in the U.S. distribution network. The Department of Energy estimates that weather-related outages cost the U.S. economy $18 billion to $33 billion annually. Overhead lines also require maintained rights-of-way, cleared corridors typically 20 to 200 feet wide, depending on voltage, which creates ongoing vegetation management costs and land-use restrictions. In wildfire-prone regions like California, overhead lines have become a significant liability, driving billions of dollars in undergrounding investment.

Underground Power Lines: How They Work

Underground power lines use insulated cables installed in conduit systems buried below grade. Unlike overhead conductors that rely on air for insulation, underground cables use solid dielectric insulation, most commonly cross-linked polyethylene (XLPE) for modern installations. The cables are pulled through conduit runs that connect manholes, handholes, vaults, and pad-mounted equipment.

A typical underground distribution system consists of several components working together. The conduit system, usually PVC, HDPE, or fiberglass, provides the protective pathway. Manholes and handholes serve as access points for cable pulling, splicing, and maintenance. Pad-mounted transformers replace the pole-mounted units used in overhead systems. And duct bank structures, multiple conduits arranged in a grid pattern and encased in concrete or direct-buried with spacers, carry primary and secondary circuits through the same corridor.

Underground systems eliminate the most common causes of overhead outages: wind, ice, falling trees, and vehicle-pole collisions. Utilities that have converted significant portions of their distribution networks report measurable improvements in reliability metrics. Santee Cooper in South Carolina, which has 64% of its distribution miles underground, consistently ranks in the top 2% of U.S. utilities for reliability.

Overhead vs. Underground: Cost and Performance Comparison

Overhead vs. Underground: Cost and Performance Comparison

The decision between overhead and underground power lines involves trade-offs across installation cost, long-term maintenance, reliability, repair complexity, and lifespan. The following comparison reflects typical distribution-voltage (4–25 kV) installations.

Factor

Overhead

Underground

Installation cost per mile

$620,000–$1,020,000

$3.3 million–$8.3 million

Installation cost ratio

1× (baseline)

4–10× higher

Typical lifespan

25–40 years (poles)

40–50+ years (conduit/cable)

Annual maintenance cost

Higher (vegetation, storm damage)

3–7× lower than overhead

Outage frequency

Higher (weather, trees, vehicles)

Significantly lower

Average repair time

Hours

Days to weeks

Repair cost per mile (outage)

$3,000–$5,000

$20,000+

Right-of-way width

20–200 feet

1–10 meters (30 m during construction)

Wildfire risk

Significant

Minimal

Capacity upgrade path

Re-conductor or re-string

Replace cable; conduit may support re-pull

The cost gap between overhead and underground has narrowed in recent years as directional boring techniques, improved conduit materials, and streamlined duct bank designs have reduced installation labor. At the same time, the increasing frequency and severity of weather events have driven up the long-term cost of maintaining overhead systems, making underground installations more competitive on a life-cycle basis.

Conduit Systems: The Backbone of Underground Power

The conduit system is what separates a protected, maintainable underground power installation from a direct-burial cable that becomes a liability the moment it fails. Conduit allows cables to be pulled, replaced, and upgraded without re-excavating the entire route, a critical advantage that justifies the additional material and installation cost.

Three conduit materials dominate underground power applications, each suited to different project conditions.

PVC rigid conduit (Schedule 40 and Schedule 80) is the most widely specified conduit for underground electrical distribution. It is lightweight, corrosion-resistant, and joined with solvent cement for permanent, watertight connections. Schedule 40 handles most standard burial applications at 18 inches minimum cover per NEC Table 300.5. Schedule 80 provides thicker walls for areas subject to vehicular traffic or shallow cover conditions. PVC is UL 651-listed and is the default choice for utility duct bank construction across most of the U.S.

HDPE conduit offers superior flexibility and impact resistance, making it the preferred material for directional boring (HDD) installations where the conduit must be pulled through a bored pathway rather than laid in an open trench. HDPE can be delivered in continuous coils, which reduces the number of field joints and speeds installation on long runs. FuturePath HDPE microduct systems bundle multiple smaller pathways into a single conduit, allowing fiber optic and communication cables to share the same trench corridor as power cables, a significant advantage in joint-trench utility installations.

Fiberglass reinforced conduit (RTRC) handles the most demanding environments: high-temperature exposures, chemically aggressive soils, and applications where PVC's thermal limitations would cause deformation or failure. Fiberglass conduit elbows and fiberglass expansion joints are commonly specified at substation entries, industrial facilities, and coastal installations where salt air accelerates corrosion of metallic alternatives.

NEC Requirements for Underground Power Line Conduit

The National Electrical Code (NEC) governs burial depth, conduit sizing, fill ratios, and installation methods for underground electrical systems. Key requirements that affect conduit selection and installation include the following.

Burial depth varies by conduit type and location. PVC conduit requires a minimum of 18 inches of cover in standard installations. Rigid metal conduit (RMC) requires only 6 inches. Direct-burial cable without conduit requires 24 inches. Areas subject to vehicular traffic add 6 inches to all minimums. These are minimums, many utilities and local jurisdictions specify greater depths, and frost-line considerations in northern states can push required depths to 36–48 inches.

Conduit fill cannot exceed 40% of the conduit's cross-sectional area when three or more conductors are present (NEC Chapter 9, Table 1). Oversizing conduit slightly, using 4-inch conduit where a 3-inch would technically meet fill requirements, provides working room for cable pulling and accommodates future upgrades.

Expansion fittings are required where conduit crosses building joints or where thermal movement could stress the system. PVC conduit has a coefficient of thermal expansion approximately 3.4 × 10⁻⁵ in/in/°F, which means a 100-foot run can move more than 2 inches seasonally. Missing expansion fittings is one of the most common causes of failed underground inspections.

Total bending between pull points cannot exceed 360° (NEC 300.5 and Article 352 for PVC). Every elbow, offset, and sweep counts toward that total. Exceeding the limit requires adding a pull box or handhole, which changes the layout and adds cost.

Duct Bank Construction for Underground Power

Most underground power distribution projects use duct bank construction, a structured arrangement of multiple conduits installed in a common trench. Duct banks carry primary circuits, secondary circuits, neutral conductors, and sometimes communication lines in a single corridor.

A standard duct bank uses PVC Schedule 40 conduit arranged in rows and columns, separated by plastic spacers that maintain consistent spacing for concrete encasement or direct burial. Common configurations include 2×2 (four conduits), 2×3 (six conduits), and 3×3 (nine conduits) arrangements, depending on the number of circuits and spare capacity needed.

Concrete-encased duct banks provide maximum mechanical protection and allow shallower burial depths in some jurisdictions. Direct-buried duct banks, conduits laid in the trench with spacers but without concrete, reduce material cost and installation time, though they require deeper burial and more careful backfill compaction.

Both approaches require access points at regular intervals. Manholes handle primary-voltage cable pulling and splicing, with manhole cable-pulling equipment positioned at turns and long straight runs to manage pulling tension. Handholes provide access for secondary and service-level connections. Conduit ends should be sealed with vinyl end caps during construction to prevent moisture and debris intrusion before cable installation.

Woven barricade tape is placed in the backfill approximately 12 inches above the duct bank to warn future excavators of the buried infrastructure, a simple step that prevents costly dig-in damage.

The Trend Toward Underground: What Contractors Should Expect

The share of underground distribution is growing steadily. California alone has converted approximately 33% of its 220,000+ miles of distribution lines to underground, and active programs across the state are accelerating that pace. National grid resilience grants from FEMA and the Department of Energy are funding underground conversion projects in hurricane-prone and wildfire-prone regions. New residential developments in most major metros now require underground service as a condition of permitting.

For contractors, this trend means more duct bank work, more conduit footage, and more complex underground installations. Projects increasingly require joint-trench construction that combines power, telecom, and fiber in a single corridor. Material procurement needs to account for longer lead times on specialty conduit sizes, fiberglass fittings, and large-diameter PVC sweeps. And inspection requirements for underground systems are more detailed than overhead, burial depth verification, conduit fill calculations, expansion fitting placement, and watertight seal testing are all standard checkpoints.

Contractors who stock the right conduit materials, understand NEC burial requirements, and can execute clean duct bank installations are positioned to capture this growing segment of utility infrastructure work.

About Utility Pipe Supply

Utility Pipe Supply is a certified Woman-Owned Business Enterprise (WBE) headquartered in Illinois, supplying conduit, fittings, enclosures, and installation tools to electrical and telecommunications contractors nationwide. With in-stock inventory across PVC, HDPE, and fiberglass conduit systems, we help crews build the underground infrastructure that keeps the grid running.

Frequently Asked Questions

What are the main types of power lines?

Power lines are classified into three categories by function: transmission lines (115–765 kV) that carry bulk power over long distances, subtransmission lines (23–69 kV) that feed local substations, and distribution lines (4–25 kV) that deliver power to homes and businesses. Each category can be installed overhead or underground, though transmission is almost exclusively overhead and distribution is where the majority of underground conversion is occurring.

How much more does underground power cost compared to overhead?

Installation costs for underground distribution typically run 4 to 10 times higher than overhead, roughly $3.3 million to $8.3 million per mile for underground versus $620,000 to $1,020,000 per mile for overhead. However, underground systems have 3 to 7 times lower annual maintenance costs and lifespans of 40 to 50+ years compared to 25 to 40 years for overhead poles, which narrows the gap on a life-cycle cost basis.

What type of conduit is used for underground power lines?

PVC Schedule 40 and Schedule 80 conduit is the most common choice for underground electrical distribution, meeting UL 651 standards. HDPE conduit is preferred for directional boring installations due to its flexibility and availability in continuous coils. Fiberglass (RTRC) conduit is specified for high-temperature, chemically aggressive, or corrosive environments where PVC would not perform adequately.

How deep do underground power lines need to be buried?

NEC Table 300.5 sets minimum burial depths: 18 inches for PVC conduit, 6 inches for rigid metal conduit, and 24 inches for direct-burial cable. Areas with vehicular traffic require an additional 6 inches. Many utilities and local jurisdictions exceed NEC minimums, northern states often specify 36 to 48 inches to account for frost-line depth.

Why are more utilities moving power lines underground?

Wildfire liability, hurricane and ice storm damage, grid resilience mandates, and aesthetic requirements in new developments are all driving underground conversion. Federal programs like FEMA's Hazard Mitigation Grant Program and DOE grid resilience grants are providing funding for conversion projects, particularly in states with high wildfire or hurricane exposure.

Do underground power lines still experience outages?

Underground lines experience significantly fewer outages than overhead systems, they are protected from wind, ice, trees, and vehicle collisions. However, they are not immune to failure. Cable insulation degrades over time, dig-in damage occurs when excavators fail to locate utilities before digging, and flooding can damage pad-mounted equipment that serves underground circuits. When underground failures do occur, repairs take longer and cost more than equivalent overhead repairs.

What is a duct bank in underground power construction?

A duct bank is a structured arrangement of multiple conduits installed in a common trench, typically using PVC Schedule 40 conduit separated by plastic spacers. Duct banks can be encased in concrete for maximum protection or direct-buried with proper backfill compaction. They carry primary circuits, secondary circuits, neutral conductors, and sometimes communication lines in a single corridor, with manholes and handholes providing access for cable installation and maintenance.
