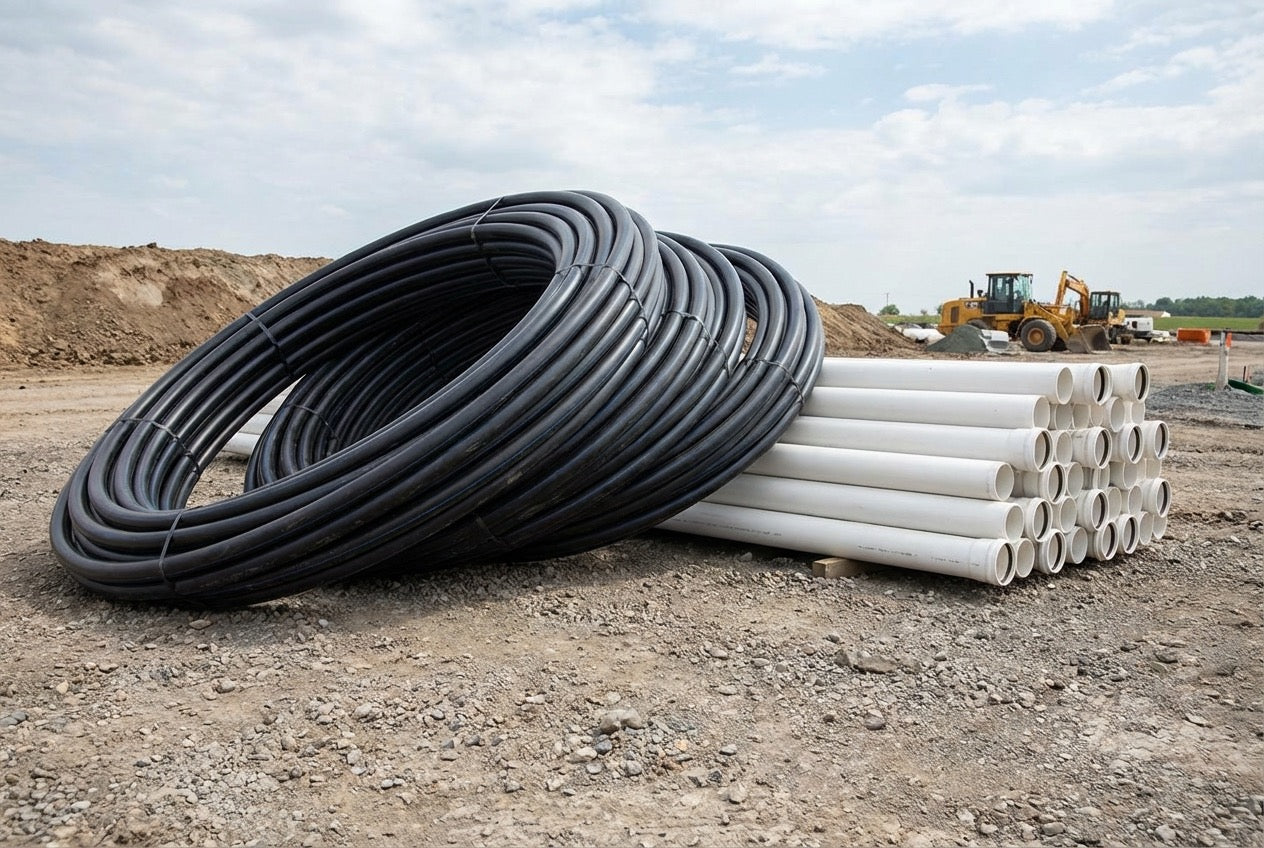

Two pipe materials dominate the underground conduit and utility pipeline market: HDPE (high-density polyethylene) and PVC (polyvinyl chloride). Both are thermoplastics, both are corrosion-resistant, and both have decades of proven service in buried utility applications. But they are not interchangeable — each has distinct performance characteristics, installation requirements, and cost profiles that make it better suited for specific project conditions.
Choosing between HDPE and PVC affects installation method, long-term performance, and total project cost. This guide compares the two materials across the factors that matter most for underground utility and conduit work.
Material Properties at a Glance
HDPE is a flexible, semi-rigid thermoplastic available in coiled lengths for smaller diameters and straight sticks for larger diameters. Its flexibility gives it an advantage in directional drilling and trenchless installation methods. HDPE pipe is joined by thermal fusion, creating leak-free monolithic connections.
PVC is a rigid thermoplastic available in standard 10-foot and 20-foot straight lengths. It is stiffer than HDPE, which simplifies handling in open-cut trenching but limits its use in trenchless methods. PVC pipe is typically joined with bell-and-spigot gasketed connections or solvent-welded couplings.
Flexibility and Impact Resistance
HDPE is significantly more flexible than PVC. This flexibility allows HDPE pipe to absorb soil movement, thermal expansion, and ground settlement without cracking. HDPE coils can be pulled directly through horizontal directional drilling bores, which is why it dominates trenchless utility installation.
PVC is rigid and can crack under impact or point loading — a known failure mode in rocky soil conditions or when heavy equipment crosses a trench without adequate cover. PVC Schedule 40 and Schedule 80 offer better impact resistance than standard ASTM D2241 pressure pipe, but HDPE outperforms PVC in flexibility across all grades.
Trenchless Installation Compatibility
HDPE is the dominant material for trenchless installation methods including horizontal directional drilling (HDD), pipe bursting, and microtunneling. Its fusion joints create a continuous pipe string that can be pulled hundreds of feet through a bore without leaking at connections. HDPE coil is standard for smaller-diameter HDD projects.
For new construction using open-cut trenching, PVC is competitive and widely used, particularly for electrical conduit (Schedule 40 and Schedule 80 PVC) and gravity sewer. PVC's rigidity and bell-and-spigot joints are efficient in open-trench conditions.
Joint Integrity
HDPE fusion joints are among the highest-integrity pipe connections available in the industry. Butt fusion and electrofusion joints become part of the pipe wall itself — there is no gasket, no sealant, and no mechanical joint that can loosen or fail. Fused HDPE pipe has been extensively tested and documented for leak-free performance under cyclic pressure, surge pressure, and external loads.
PVC bell-and-spigot gasketed joints, while reliable, remain potential leak points if the gasket degrades, if the joint is pulled apart by ground movement, or if installation tolerances are not met. Solvent-welded joints are more secure but can only be used in smaller-diameter schedules.
Pressure Rating and Temperature Performance
Both HDPE and PVC pipe are available in a range of pressure ratings, but they respond differently to temperature. PVC loses pressure capacity significantly as temperature rises above 73 degrees F, the base rating temperature, making it less suitable for applications in warm environments or where fluid temperatures are elevated.
HDPE also de-rates under high temperatures, but its baseline pressure ratings at common operating temperatures are typically more consistent. HDPE's flexibility also helps it absorb water hammer and surge pressure better than rigid PVC.
Installation Cost and Material Cost
PVC is generally less expensive per foot than HDPE of comparable pressure rating and diameter. For open-cut trench projects with standard soil conditions, PVC offers a lower material cost per foot installed.
HDPE costs more per foot in most size ranges but saves labor on long runs through coil availability and fused joint efficiency. For trenchless projects, HDPE is not just preferred — it is often the only practical option, which effectively removes the cost comparison for those applications.
Which Material Is Right for Your Project?
Choose HDPE when: the project involves trenchless installation (HDD, pipe bursting, slip lining), the run is long and coil availability reduces joint count, soil conditions include rock or unstable ground, fusion joint integrity is specified, or the application involves directional drilling bore strings.
Choose PVC when: the project is open-cut with standard trench conditions, large-diameter gravity sewer using bell-and-spigot is specified, electrical conduit in conduit bodies or rigid conduit applications is required, or budget and availability favor the lower per-foot material cost.
Utility Pipe Supply stocks both HDPE and PVC pipe and conduit and can help you evaluate which material fits your project specifications and delivery requirements.
Frequently Asked Questions
Can HDPE pipe and PVC pipe be connected directly?
HDPE and PVC cannot be thermally fused together. Where the two materials must connect, mechanical transition fittings, such as flanged adapters, mechanical couplings, or threaded adapters, are used. Utility Pipe Supply can help specify the correct transition fitting for your pipe diameters and pressure class.
Is HDPE or PVC better for electrical conduit?
Both HDPE and PVC are widely used for electrical conduit. PVC Schedule 40 and Schedule 80 are the most common conduit materials for direct burial and concrete-encased installations. HDPE conduit is preferred in directional drilling applications and where coil availability simplifies long continuous runs. The National Electrical Code permits both for appropriate applications.
What SDR rating should I use for water main pipe?
For potable water distribution systems, HDPE pipe in SDR 11 (pressure rated approximately 160 psi for PE4710) is commonly specified. PVC water main pipe is typically specified to AWWA C900 in Class 150 or Class 200. Your project engineer will specify the pressure class based on system operating pressure and surge calculations.
Which pipe is easier to repair in the field?
Both materials can be repaired in the field, but the methods differ. HDPE pipe repair requires fusion equipment for a permanent joint — either a butt fusion machine or electrofusion fittings. PVC pipe can be repaired using repair couplings, split couplings, or solvent-weld couplings without specialized equipment. For emergency field repairs, PVC's simpler repair methods are an advantage.
Does HDPE or PVC have a longer service life?
Both HDPE and PVC have documented service lives exceeding 50 years in buried utility applications when properly installed. HDPE's flexibility gives it a slight advantage in soil movement conditions and surging systems. PVC's rigidity can make it vulnerable to point loading and impact failure. Both materials resist corrosion, biological growth, and chemical attack from typical soil environments.
Are HDPE and PVC both approved for potable water service?
Both HDPE and PVC pipe are NSF/ANSI 61 certified for use in potable water applications. HDPE PE4710 pipe is approved for water service per AWWA C906. PVC water main pipe meets AWWA C900 and C905 standards. Both materials are used extensively in municipal water distribution systems.
