Electrofusion is one of the two primary methods for joining HDPE pipe and fittings, alongside butt fusion. Where butt fusion uses an external heater plate to melt and join pipe faces, electrofusion uses heat generated from within the fitting itself, making it the preferred method when space is tight, when making repairs to live pipe, or when joining pipes of slightly different wall thicknesses.
Understanding when and how to use electrofusion correctly is essential for any contractor working with HDPE pipe in water distribution, gas distribution, directional drilling, or trenchless rehabilitation applications. Utility Pipe Supply stocks electrofusion fittings and can support your project specifications.
How Electrofusion Works
Electrofusion joins the HDPE pipe by using heat generated from within the fitting itself. Each electrofusion fitting contains an embedded resistance wire coil at the inner bore surface. When an electrical current is passed through the coil via a controller, the wire heats up, melting the HDPE at the interface between the fitting bore and the pipe outer surface. The melted material fuses together and forms a solid joint as it cools under controlled conditions.
- Preparation: The pipe ends are cleaned and scraped to remove oxidized surface material. Oxidation on HDPE pipe is invisible to the eye but prevents proper fusion, scraping is not optional.

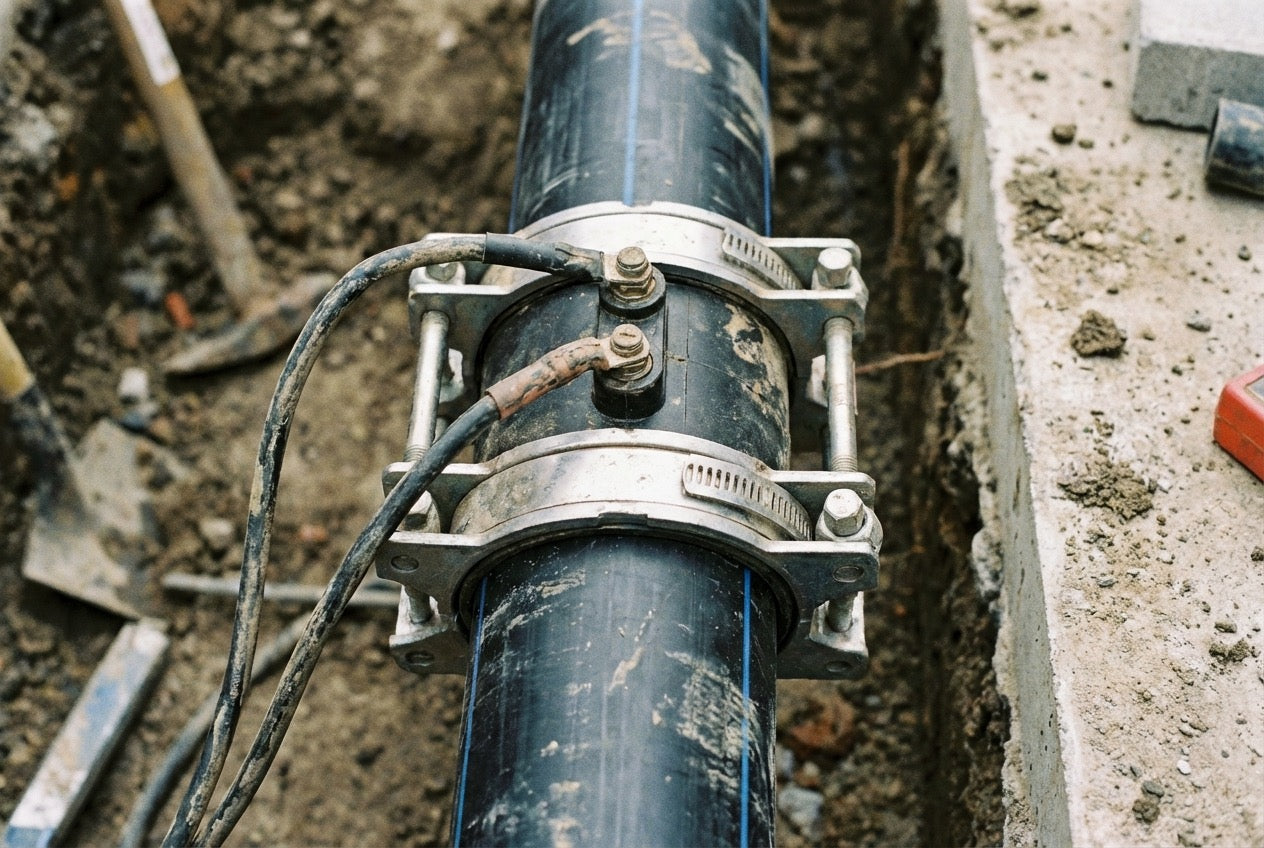

- Assembly: The pipe ends are pushed fully into the fitting until they seat against the fitting's internal stop. Alignment clamps are installed to prevent movement during the fusion cycle.
- Fusion and cooling: The electrofusion controller is connected to the fitting terminals. The controller reads the barcode or data plate on the fitting to set the correct fusion time and voltage. The cycle runs automatically. After fusion is complete, the joint must cool undisturbed for the time specified by the fitting manufacturer before clamps are removed and the joint is stressed.
Equipment Required for Electrofusion
Electrofusion requires three basic pieces of equipment. The electrofusion controller supplies precise voltage and monitors fusion time automatically, modern controllers read a barcode on the fitting to set the correct parameters. A pipe scraper or rotary scraping tool removes the oxidized layer from the pipe OD in the area where the fitting will be placed. Alignment clamps hold the pipe ends in position during the fusion cycle and prevent movement that would disrupt the joint.
When to Use Electrofusion vs. Butt Fusion
Electrofusion is the right choice when space is limited. Butt fusion machines require clearance on both sides of the pipe to clamp, face, and press the joint. In an excavated pit, near existing utilities, or inside a directional drilling exit pit, there may not be room to set up a butt fusion machine. Electrofusion fittings require only enough clearance to place the fitting on the pipe and connect the controller leads.
Electrofusion is also preferred when connecting to an existing live system. Electrofusion saddle tees and branch saddles allow connections to be made to existing pressurized pipe without a full excavation or shutdown. The fitting is clamped onto the pipe surface, fused, and then tapped through the fitting boss.
Butt fusion is preferred for mainline connections on new construction where trench width is not a constraint, where the joint volume is high (reducing per-joint cost advantages of electrofusion fittings), and where large-diameter pipe requires the consistency of a machine-controlled fusion process.
Best Practices for Quality Electrofusion Joints
Scrape properly. Pipe scraping is the single most important step. The oxidized polyethylene layer on HDPE pipe must be completely removed from the area under the fitting. Use a rotary pipe scraper and remove at least 0.004 inches from the surface. Mark the scraped area with a marker so it is visible during assembly.
Keep joints clean and dry. Moisture and contamination on the pipe OD or fitting bore will prevent proper fusion. In wet conditions, tent the work area and dry the pipe surfaces before assembly. Do not handle the scraped area with bare hands, skin oils contaminate the fusion surface.
Clamp and align correctly. Pipe ends must be fully inserted to the fitting stop. Pipe ovality is common in flexible HDPE pipe; re-rounding clamps may be needed for larger-diameter pipe before the fitting will seat properly.
Follow the controller fusion time. Do not interrupt the fusion cycle once started. If power is interrupted, the joint must be cut out and replaced. Most controllers will log the fusion cycle and print or store a record confirming the joint was completed correctly.
Allow full cooling before disturbing the joint. Cooling times are specified by the fitting manufacturer. Moving, pressurizing, or stressing the joint before cooling is complete is the second most common cause of joint failure after inadequate pipescraping.
Applications for Electrofusion in Utility Work
Electrofusion is used across water distribution, natural gas, sewer force main, and telecommunications conduit systems wherever the installation conditions favor its compact tooling requirements. In directional drilling exit pits, electrofusion allows the drilling crew to make pipe connections without setting up a separate butt fusion operation. In urban pipeline rehabilitation and repair, electrofusion repairs can be completed in tight excavations that would not accommodate a fusion machine.
Frequently Asked Questions
What is the difference between electrofusion and butt fusion?
Butt fusion joins HDPE pipe by heating the flat faces of two pipe ends with an external heater plate, then pressing them together. It requires a dedicated fusion machine clamped to both pipe ends. Electrofusion joins pipe to a fitting using internal heating coils, the fitting does the work, not an external machine. Electrofusion is more compact and flexible for field repairs; butt fusion is more economical for high-volume mainline connections.
Do I need special training to perform electrofusion?
Most manufacturers and industry organizations recommend formal training for electrofusion operators. The Plastics Pipe Institute and ASTM F2620 standard outline qualification procedures. Proper technique, particularly scraping and cleanliness, is critical to joint quality and cannot be judged by visual inspection alone. Many project specifications require documentation of operator training.
Can electrofusion be performed in wet conditions?
Electrofusion requires a clean, dry joint surface. In wet conditions, the work area must be covered and the pipe surfaces must be thoroughly dried before assembly. Moisture at the fusion interface prevents proper bonding. Most electrofusion fitting manufacturers specify that the fusion surface must be visually dry and at ambient temperature before the cycle begins.
How long does an electrofusion joint take?
Fusion cycle times vary by fitting size, from as little as 30 seconds for small couplers to several minutes for large-diameter saddle tees. Cooling times before the joint can be stressed are typically two to four times the fusion time. A full electrofusion joint cycle from scraping to clamp removal typically takes 15 to 45 minutes depending on fitting size and ambient temperature.
How do I inspect an electrofusion joint?
Visual inspection focuses on the indicator pins, which should be raised after a successful fusion cycle, confirming that the melt zone reached the indicator pin depth. Some fittings include dual indicators. Ultrasonic joint testing is available for critical applications but is not routine field practice. The best quality assurance is proper procedure, scraping, cleanliness, and correct fusion time.
What causes electrofusion joints to fail?
The most common causes are failure to scrape the pipe OD adequately, contamination of the fusion surface (moisture, oil, or debris), interruption of the fusion cycle, movement of the joint before cooling is complete, and use of incompatible resin pipe with the fitting. Proper preparation and following the controller instructions eliminates the vast majority of electrofusion failures.
