HDPE Fusion Machines: Types and Selection Guide

Selecting the right HDPE fusion machine is one of the most consequential equipment decisions on any polyethylene pipe project. The wrong machine type leads to joint failures, project delays, or fusion parameters that fall outside manufacturer specifications. The right machine produces repeatable, full-strength joints that outlast the pipe warranty.

The challenge is that no single fusion machine handles every HDPE application. Pipe diameter, site access, joining configuration, and project scale all determine which machine type is appropriate. The sections below address the four primary categories of HDPE fusion machines, butt fusion, electrofusion, socket fusion, and saddle fusion, along with the selection criteria that matter in the field.

Key Takeaways

• There are four primary HDPE fusion machine types — butt fusion, electrofusion, socket fusion, and saddle fusion — each with distinct trade-offs in portability, cost, operator skill requirements, and application fit.
• Pipe diameter is the first selection filter — hydraulic butt fusion covers mid-range distribution mains (2"–24"), electrofusion and socket fusion handle small-diameter work, and track-mounted machines are reserved for large transmission pipe (26"+).
• Electrofusion is the top choice for confined spaces and tie-ins — its compact processor, fitting-driven automation, and low operator variability make it ideal for repairs, confined excavations, and branch connections.
• Proper surface preparation and temperature verification are non-negotiable — scraping the pipe surface before electrofusion and confirming heater plate temperature (400–450°F) with a contact pyrometer before every butt fusion cycle are the two most frequently overlooked field steps.
• Site access and documentation requirements are critical decision factors — tight urban trenches favor electrofusion, while open rights-of-way favor butt fusion; regulated gas and municipal water projects increasingly require data-logged fusion records.
• ASTM F2620 and 49 CFR Part 192 govern fusion procedures and operator qualification — following both the pipe manufacturer's procedure and the applicable standard is required, not optional.
• Butt fusion machines and electrofusion processors are available for rent — giving contractors access to the right equipment for a specific project without the capital cost of ownership.

How HDPE Fusion Works

All thermal fusion methods share the same basic principle: heat softens the HDPE polymer to a molten state, and controlled pressure bonds the material into a continuous, homogeneous joint. When done correctly, the fused joint reaches the same tensile strength as the surrounding pipe wall. When done incorrectly, wrong temperature, inadequate heat soak, contaminated surfaces, or misaligned pressure, the joint becomes the weakest point in the system.

HDPE pipe is manufactured from PE4710 resin, the highest-performance polyethylene classification, and its fusion behavior is well defined by industry standards. ASTM F2620 governs heat fusion joining procedures for polyethylene pipe and fittings and serves as the baseline qualification document for most contractor training programs. Projects in regulated gas distribution must also meet Title 49 CFR Part 192 qualification requirements, which impose stricter operator certification standards.

The four fusion machine categories differ in how they apply heat, what geometry they can join, and what size range they cover. Each has distinct trade-offs between portability, cost, operator skill requirements, and application fit.

Butt Fusion Machines: The Workhorse of HDPE Joining

Butt fusion is the most widely used HDPE pipe joining method for medium- and large-diameter applications. A butt fusion machine holds two pipe ends in aligned clamps, faces the ends flat with a rotating trimmer, applies a heated plate to both ends simultaneously, removes the plate at the correct melt bead height, then brings the melted ends together under controlled hydraulic pressure. The joint cools under force for a prescribed time based on pipe wall thickness.

The key components of a butt fusion machine are the carriage and jaw assembly, the facing tool, the heater plate, the hydraulic power unit (HPU) on hydraulic models, and a pressure gauge or data logging system. Proper heater plate temperature for HDPE is typically 400 to 450 degrees Fahrenheit, verified with a contact pyrometer before each fusion cycle.

Manual Butt Fusion Machines

Manual machines are the most portable option in the butt fusion category. The operator applies fusion force by hand rather than through a hydraulic system, making them appropriate for service line work in the 1-inch to 6-inch IPS range. They are commonly used in off-grid locations where generator power is unavailable or impractical, and for repair work where a full hydraulic machine would be difficult to position.

The limitation of manual machines is operator-dependent pressure consistency. Because the operator controls carriage force by hand, maintaining exact interfacial pressure, critical for joint quality, depends entirely on technique and experience. For gas distribution work under 49 CFR Part 192, hydraulic or data-logged equipment is generally required to document joint parameters.

Hydraulic Butt Fusion Machines

Hydraulic machines are the standard for mid-range pipe diameters, typically 2 inches through 24 inches IPS or DIPS. The hydraulic power unit delivers precise, measurable fusion force, allowing operators to calculate and verify interfacial pressure against pipe wall area. Most hydraulic machines include a drag pressure measurement step at the start of each fusion cycle, ensuring the recorded gauge pressure accounts for carriage friction and correctly represents the actual melt pressure applied to the joint.

This category covers the broadest range of typical utility construction applications, including water distribution mains, gas distribution lines, and industrial pipelines. Horizontal directional drilling (HDD) projects frequently use hydraulic butt fusion machines to prefuse long strings of HDPE pipe before the pullback operation, reducing joint count and improving continuity through the bore.

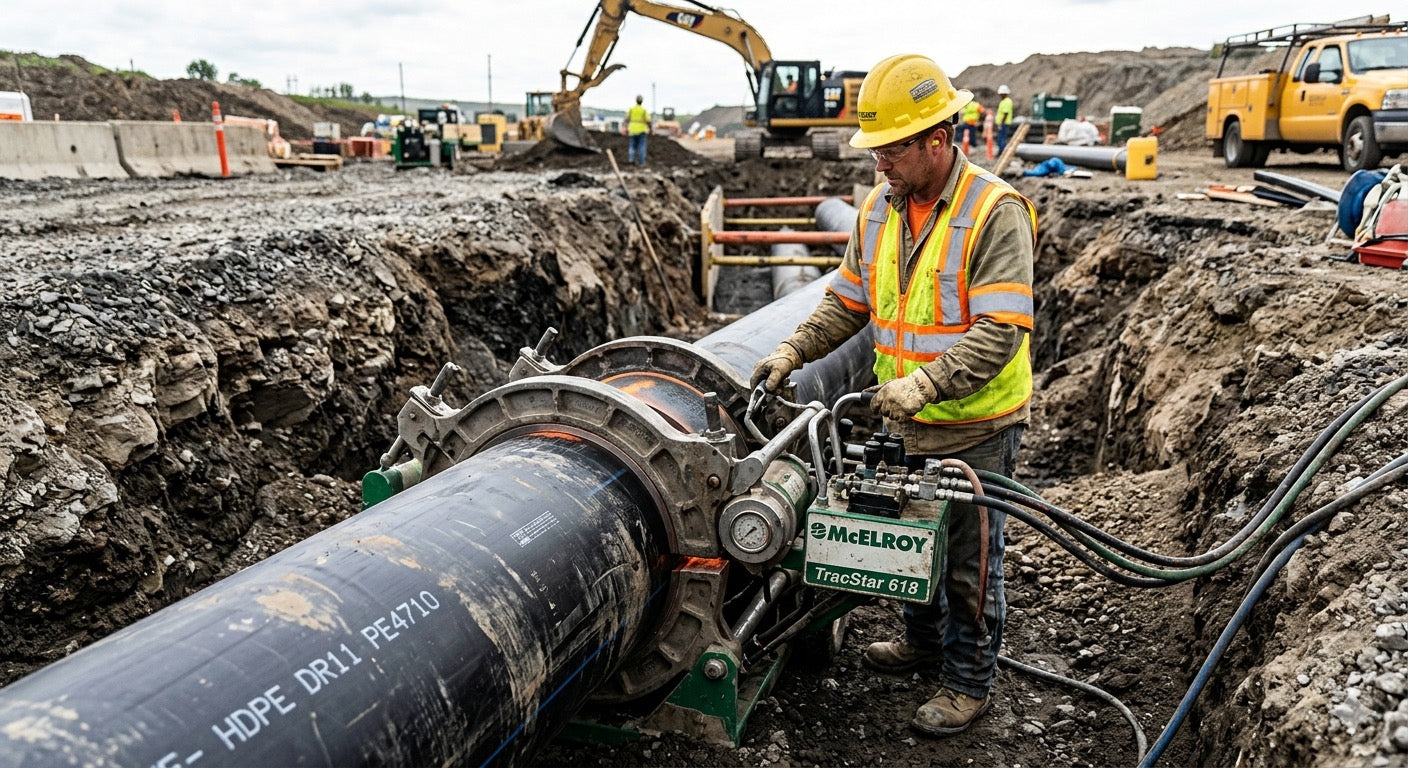

Track-Mounted and High-Volume Butt Fusion Machines

For large-diameter transmission applications, pipe sizes from 26 inches through 65 inches and larger, track-mounted machines provide the stability and controlled force that oversized pipe requires. These machines run on rails positioned alongside the pipe string, with the carriage traveling on a fixed track to maintain alignment across heavy pipe sections. Projects including major water transmission mains, gas gathering systems, and large-scale industrial installations use this class of equipment.

Modern track-mounted and advanced hydraulic machines increasingly include data logging capabilities that record heater temperature, fusion pressure, heat soak time, and cooling time for every joint. These records support QA documentation, owner verification, and regulatory compliance. Contractors who need equipment without the capital outlay of purchase can access butt fusion rentals matched to their project pipe sizes.

Electrofusion Machines: Precision for Tight Spaces and Tie-Ins

Electrofusion machines, more precisely called electrofusion processors or controllers, apply a controlled electrical current to fittings that contain embedded resistance wire coils. The current heats the coils, which melts the pipe exterior and fitting interior simultaneously, fusing them together as the molten material intermingles and cools. The fitting geometry controls the joint shape and melt zone, making electrofusion highly repeatable with minimal operator variability.

Electrofusion processors operate in the 40 to 48 volt range for most standard fittings. Fusion time varies by fitting size and manufacturer specification, ranging from roughly 20 seconds for small couplers to 400 seconds or more for large-diameter fittings. The processor reads a barcode or data tag on the fitting and automatically sets the correct parameters, removing the operator from temperature and time decisions.

This automation makes electrofusion the preferred method for tie-ins to existing mains, pipeline repairs, connections in confined-space excavations, and branch installations where butt fusion alignment is impossible. The pipe surface preparation step is critical, the oxidized outer layer of HDPE pipe must be scraped to expose fresh material before the fitting is installed. Skipping or inadequate scraping is the leading cause of electrofusion joint failures.

The Integrity Fusion products available through Utility Pipe Supply include electrofusion processors alongside a complete range of fittings for water, gas, and conduit applications. The Fuse-60 and Fuse-105 processors cover 120V and 240V power supply configurations respectively, matching the power availability at different job sites. Pair the processor with verified electrofusion couplers to ensure fitting-to-processor compatibility.

Contractors who need electrofusion capability for a specific project without committing to processor ownership can access electrofusion rentals configured for the relevant fitting system.

Socket Fusion Tools: Small-Diameter and Fabrication Applications

Socket fusion applies heat to the outside of a pipe section and the inside of a socket fitting simultaneously using matched heating tools called spigot and socket irons. Once both surfaces reach fusion temperature, the pipe is rapidly inserted into the fitting and held stationary until the joint cools. Socket fusion is appropriate for pipe sizes typically up to 4 inches, and is most commonly used in industrial process piping, irrigation systems, and building service applications.

The primary advantage of socket fusion is simplicity and portability. The tooling is compact, requires no hydraulic system, and produces reliable joints when heating times are followed correctly. The limitation is that socket fusion is highly timing-sensitive, if the operator takes too long to transfer from the heating tools to the joining step, the melt surfaces begin to cool and joint quality degrades. This timing constraint, combined with the small size range, is why socket fusion is largely a fabrication shop and building-service method rather than a field utility construction technique.

Saddle Fusion Machines: Branch Connections to Existing Mains

Saddle fusion joins a branch outlet fitting to the exterior of an existing pipe run. A dedicated saddle fusion machine holds the saddle fitting against the pipe surface and applies heat to both the fitting concave face and the pipe exterior simultaneously. After the correct heat soak, the fitting is pressed against the pipe and held under force through the cooling period. The resulting joint creates a permanent, pressure-rated outlet point.

Once the saddle joint is fully cured, a hot-tap tool can drill through the fitting and into the existing main to create a live service connection. Saddle fusion is standard practice in gas distribution for service taps, in water distribution for adding service laterals, and in industrial systems where branch connections must be added without shutting down the main line.

The electrofusion saddles available from Utility Pipe Supply provide an alternative to mechanical saddle fusion for branch connections. Electrofusion saddle fittings use the same current-driven heating principle as standard electrofusion couplers and are appropriate where a dedicated saddle fusion press is unavailable or where the pipe diameter does not match available saddle fusion tooling. For a complete overview of fitting options, the HDPE Fittings Guide covers saddle types alongside other fitting categories.

Fusion Machine Selection: Key Decision Factors

The table below compares all four machine categories across the criteria that matter most in equipment selection. No single type dominates every situation, and the right answer for a given project depends on the intersection of pipe size, site conditions, joining configuration, and documentation requirements.

Pipe diameter is typically the first filter. Electrofusion and socket fusion cover the small-diameter range well. Hydraulic butt fusion machines handle mid-range distribution mains most efficiently. Track-mounted equipment is reserved for large transmission applications where joint volume and pipe weight demand the additional stability.

Site access is the second filter. Confined excavations, vaults, and tight urban trenches favor electrofusion because the processor is compact and the fittings require no external clamps or heater plate repositioning. Open rights-of-way with room to string pipe favor butt fusion for its lower cost per joint on high-volume runs.

Documentation requirements are the third filter. Regulated gas distribution, municipal water, and owner-specified QA programs increasingly require data-logged fusion records. If documentation is mandatory, choose electrofusion processors with barcode logging capability or hydraulic butt fusion machines with integrated data loggers.

For applications involving mixed pipe materials or diameter transitions, mechanical fittings from the transition fittings catalog may be the appropriate solution when fusion joining is not feasible. For standard HDPE-to-HDPE connections within a single project, selecting from the available pipe fittings inventory before committing to a fusion method avoids equipment-to-fitting compatibility issues.

Standards and Operator Qualification

ASTM F2620 is the foundational standard for heat fusion joining of polyethylene pipe and fittings in the United States. It establishes the generic butt fusion procedure qualified through industry testing in the 1990s and covers temperature, heat soak time, pressure, and cooling time parameters. Most pipe manufacturer fusion procedures align with ASTM F2620 and should be followed in addition to, not instead of, the standard.

PPI TR-33 from the Plastics Pipe Institute provides guidance on generic butt fusion procedures and is widely referenced in project specifications. For gas distribution applications, operators must qualify under 49 CFR Part 192.285, which requires demonstrated proficiency through hands-on testing and destructive joint evaluation. Some jurisdictions and owners extend similar qualification requirements to water and wastewater fusion work.

Environmental conditions affect fusion quality independent of machine type. Wind, rain, blowing dust, and temperatures below approximately 35 degrees Fahrenheit require shielding the fusion area and may require pre-warming pipe ends to maintain consistent heat soak. Pipe storage and handling before fusion also matters, coiled pipe must be straightened and re-rounded before butt fusion, particularly in sizes above 3 inches IPS. For a closer look at how electrofusion processors manage these variables, the Electrofusion Explained article covers the process in detail.

Frequently Asked Questions

What is the difference between a butt fusion machine and an electrofusion machine?

A butt fusion machine physically clamps pipe ends together, applies a heated plate to melt both ends, removes the plate, and presses the molten ends together under hydraulic or manual force. An electrofusion machine, properly called an electrofusion processor or controller, applies electric current to a fitting that contains embedded resistance wire, melting the pipe exterior and fitting interior from within the fitting itself. Butt fusion is generally more cost-effective per joint on large-diameter, straight runs. Electrofusion is better suited for repairs, confined spaces, and branch connections.

What pipe size range does a hydraulic butt fusion machine cover?

Most hydraulic butt fusion machines are designed for a specific diameter range, with insert sets extending coverage across multiple sizes within that range. Common hydraulic machines cover pipe diameters from 2 inches through 8 inches, 4 inches through 16 inches, or 8 inches through 24 inches, depending on the model. Pipe size range is defined by the machine's jaw diameter capacity and the available insert sizes. Always verify that the machine can accommodate both the outside diameter and the DR (dimension ratio) wall thickness of the specific pipe being fused.

Can an electrofusion processor be used for all HDPE pipe diameters?

Electrofusion is theoretically available for a wide range of pipe sizes, but fitting availability limits practical application. Most electrofusion coupler and saddle fitting lines cover sizes from 1/2 inch through 12 to 16 inches, with some manufacturers extending to 24 inches. The processor itself is universal, it reads the fitting's barcode and applies the correct current and time, but the fitting must be available in the correct SDR and pipe sizing system (IPS or DIPS) for the project pipe. For larger diameters where electrofusion fittings are unavailable or cost-prohibitive, butt fusion is typically specified instead.

When should saddle fusion be used instead of a tee fitting?

Saddle fusion is the right choice when adding a branch connection to an existing, in-service main where the main cannot be excavated and replaced with a tee fitting. It is also used during initial construction when the branch tap location is determined after the mainline pipe is already fused and in place. Tee fittings, either butt-fused or electrofusion, are generally preferred in new construction because they are installed during the initial assembly before backfill, avoiding the additional step of a hot-tap tool and the cure time required before pressurizing the branch.

What is the correct heater plate temperature for HDPE butt fusion?

ASTM F2620 and most pipe manufacturer procedures specify a heater plate temperature of 400 to 450 degrees Fahrenheit (204 to 232 degrees Celsius) for HDPE pipe. The plate surface temperature must be verified with a calibrated contact pyrometer before each fusion sequence,  not assumed to be correct based on thermostat setting alone. Thermostats on fusion machines can drift, and a plate that reads 420 degrees Fahrenheit on the control panel may not match actual surface temperature. Consistent temperature verification is one of the most frequently overlooked steps in field fusion practice.

Does HDPE fusion work in cold weather?

Yes, but cold weather requires additional precautions. When ambient temperatures drop below approximately 35 to 40 degrees Fahrenheit, pipe ends must be pre-warmed and the fusion area must be shielded from wind and precipitation. Cold pipe absorbs heat from the heater plate faster than ambient-temperature pipe, potentially resulting in insufficient melt depth if heat soak time is not extended. Most pipe manufacturers provide temperature correction guidance in their fusion procedures. Electrofusion is sometimes preferred in cold weather because the heating element is enclosed within the fitting, reducing heat loss to ambient conditions.

Are HDPE fusion machines available for rent?

Yes. Both butt fusion machines and electrofusion processors are commonly available for rent, which makes sense for projects where the equipment cost cannot be justified against a single job. Utility Pipe Supply offers butt fusion rentals and electrofusion rentals for contractors who need the right equipment for a specific project scope without the capital commitment of ownership.
