Break-Away Pulling Swivels for Directional Drilling | HDD Swivels with Replaceable Break Pins

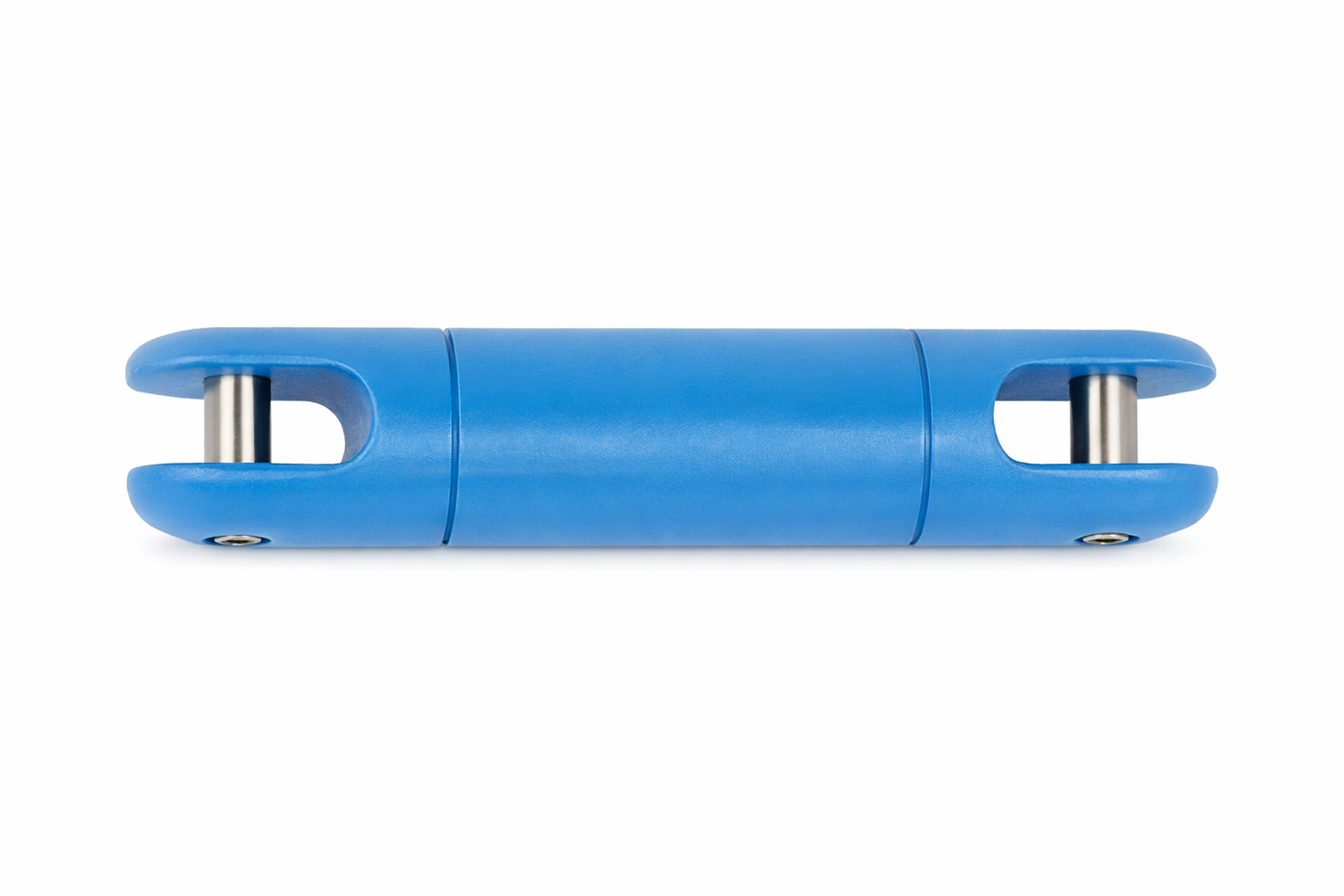

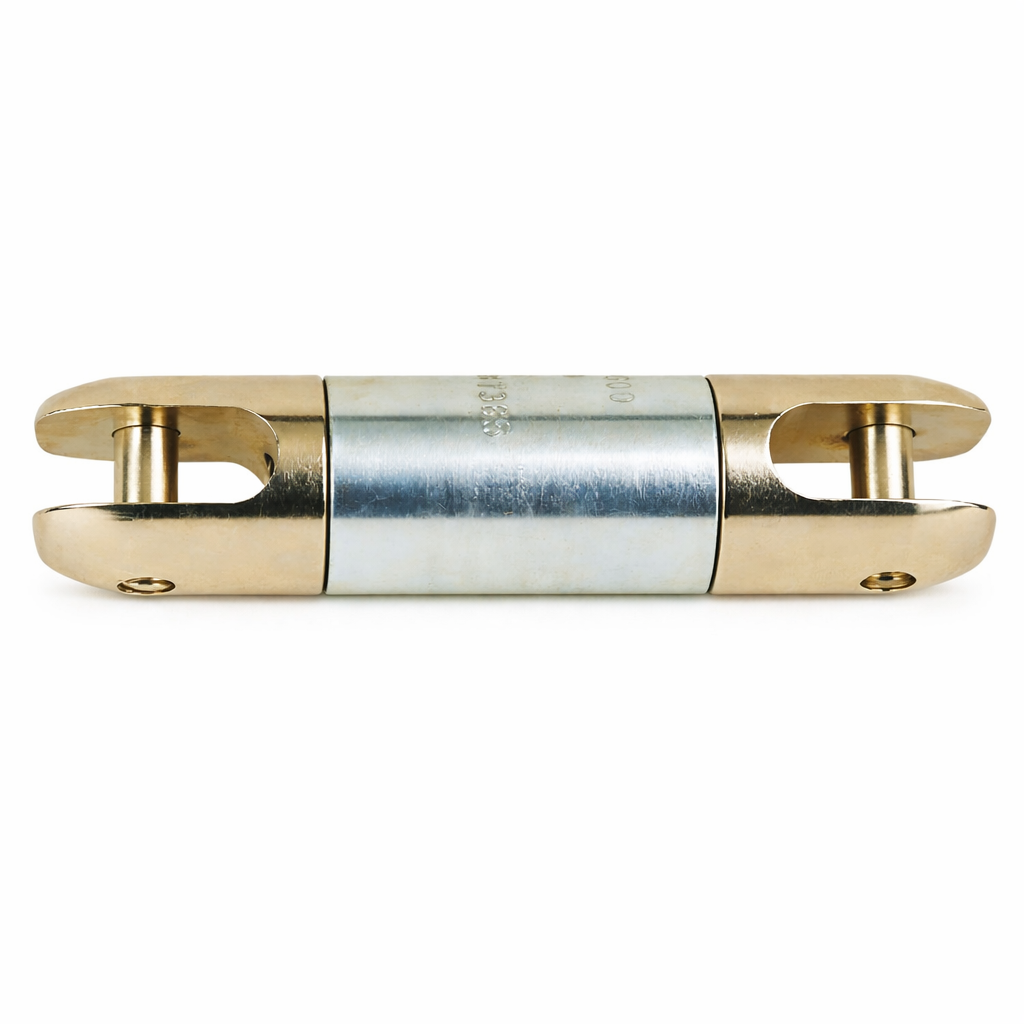

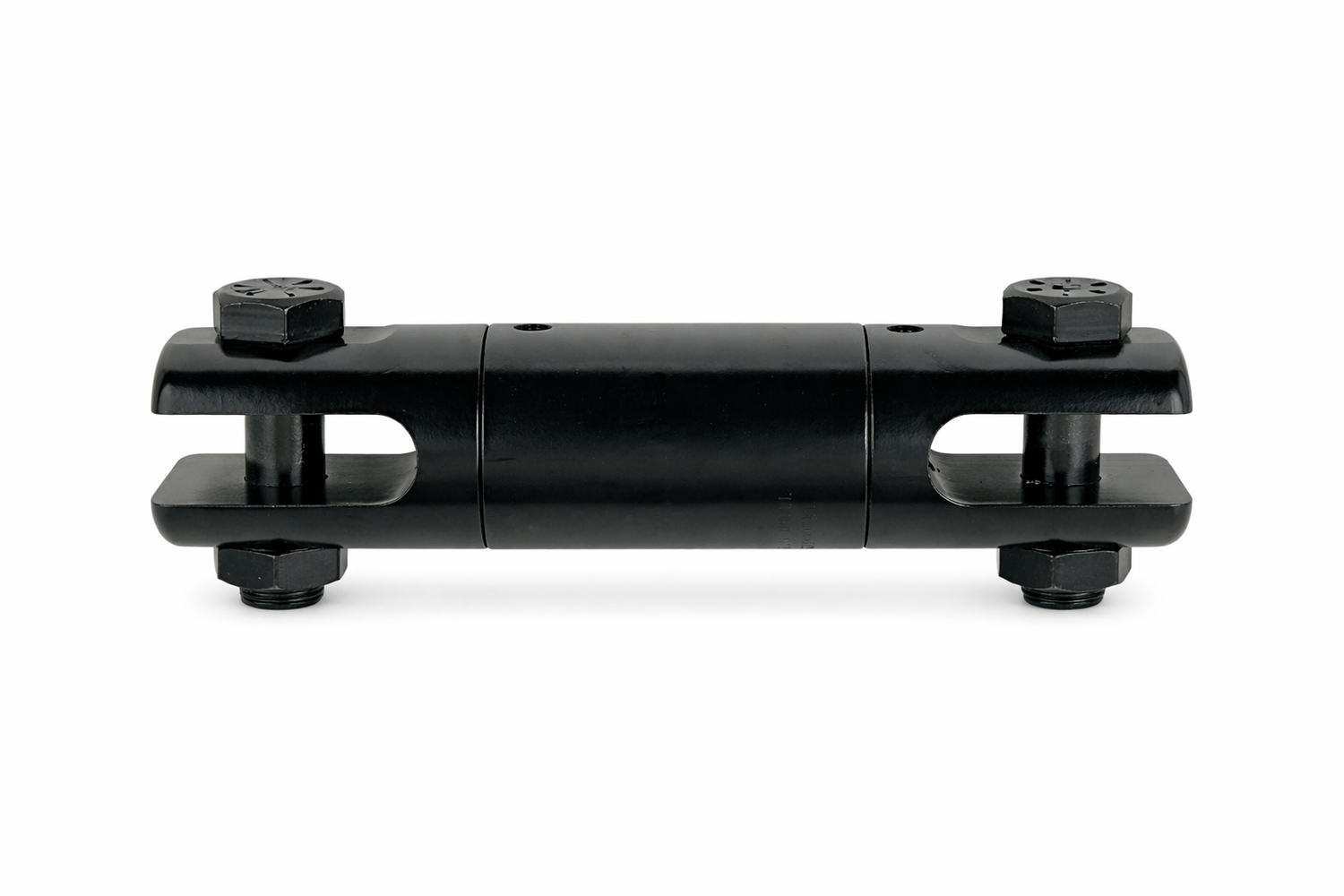

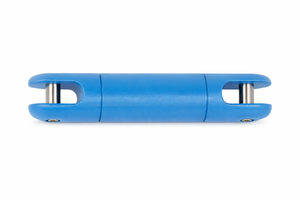

Condux Break-Away Pulling Swivels are designed for horizontal directional drilling (HDD) and other controlled pullback applications where over-tension protection is important. Each unit combines a high-load swivel with an integrated break-away link in one compact assembly, helping reduce the distance between the reamer and pulling eye for smoother pullback setups.
These swivels are engineered to separate at approximately 8%–12% of their rated break load, helping protect conduit, cable, and connected pulling equipment during demanding drilling operations. Replaceable, color-coded break pins make it easier to identify the correct break load and support faster service in the field after separation.
Compatible Replacement Pins
These swivels use Condux Break-Away Swivel Replacement Pins matched by swivel size and break load. Use the ordering chart below to identify the correct replacement pin for each swivel assembly.
View Compatible Replacement Pins Here > LINK
Key Features
- Integrated Break-Away Design – Swivel and break link are combined into one compact assembly for cleaner HDD pullback setups.
- Over-Tension Protection – Designed to separate at approximately 8%–12% of rated break load to help reduce damage to conduit, cable, and pulling equipment.
- Replaceable Break Pins – Serviceable pin design helps reduce downtime and extend usable product life.
- Color-Coded Identification – Break pin colors correspond to specific break loads for easier field identification and replacement part selection.
- Multiple Sizes & Load Ratings – Available in several swivel sizes and break load options for different directional drilling applications.
Common Applications
- Horizontal directional drilling (HDD) pullback operations
- Conduit, duct, and cable installation where controlled separation is required
- Utility, telecom, and underground construction pulling applications
How to Select the Correct Break-Away Swivel
Break-away swivels are designed to protect conduit, cable, and pulling equipment during horizontal directional drilling (HDD) and other pullback operations. Each swivel uses a replaceable break pin that separates at approximately 8%–12% of the rated break load.
Selecting the correct swivel requires matching the expected pulling tension to the appropriate break load. If excessive force occurs during the pullback, the break pin separates to help prevent damage to the conduit, cable, reamer, or drill rig.
Use the reference chart below to identify the correct swivel size, break load rating, and replacement pin for your application. If you are servicing an existing swivel after separation, match the main swivel part number to the correct replacement pin shown in the table below.
Ordering Information (Reference)
Use this chart to identify the correct swivel size, break load, Condux part number, replacement pin, and color code. Select the exact SKU from the variant options above.
| Swivel Size | Break Load (lbs) | Condux Part # | Replacement Pin | Color Code |
|---|---|---|---|---|
| 1-1/4" | 1,200 | 08021210 | 08021215 | Brown / White |
| 1-1/4" | 1,500 | 08021220 | 08021225 | Green / Yellow |
| 1-1/4" | 1,900 | 08021230 | 08021235 | Violet / Black |
| 1-1/4" | 2,000 | 08021240 | 08021245 | Slate / White |
| 1-1/4" | 2,500 | 08021250 | 08021255 | Slate / Red |
| 1-1/4" | 3,000 | 08021260 | 08021265 | Blue / Yellow |
| 1-1/4" | 3,400 | 08021270 | 08021275 | Red / Yellow |
| 1-1/4" | 4,000 | 08021280 | 08021285 | Slate |
| 1-5/8" | 4,500 | 08021610 | 08021615 | Slate / Yellow |
| 1-5/8" | 5,000 | 08021620 | 08021625 | Orange / Blue |
| 1-5/8" | 5,500 | 08021630 | 08021635 | Brown / Green |
| 1-5/8" | 6,000 | 08021640 | 08021645 | Blue / Brown |
| 1-5/8" | 6,500 | 08021650 | 08021655 | Red / Blue |
| 1-5/8" | 7,000 | 08021660 | 08024505 | Orange |
| 1-5/8" | 7,500 | 08021670 | 08025505 | Blue |
| 1-5/8" | 8,000 | 08021680 | 08027905 | Yellow |
| 1-5/8" | 8,500 | 08021690 | 08028405 | Slate |
| 2" | 10,000 | 08029200 | 08029205 | Red |
| 2" | 11,000 | 08029400 | 08029405 | Green |
| 2-1/2" | 12,000 | 08029600 | 08029605 | White |
| 2-1/2" | 14,000 | 08029700 | 08029705 | Brown |
| 3" | 18,500 | 08075600 | 08029720 | Black |
| 3" | 22,000 | 08075800 | 08075805 | Yellow |
| 3" | 25,000 | 08075820 | 08075825 | Blue |
| 4" | 40,000 | 08075940 | 08075945 | Orange |

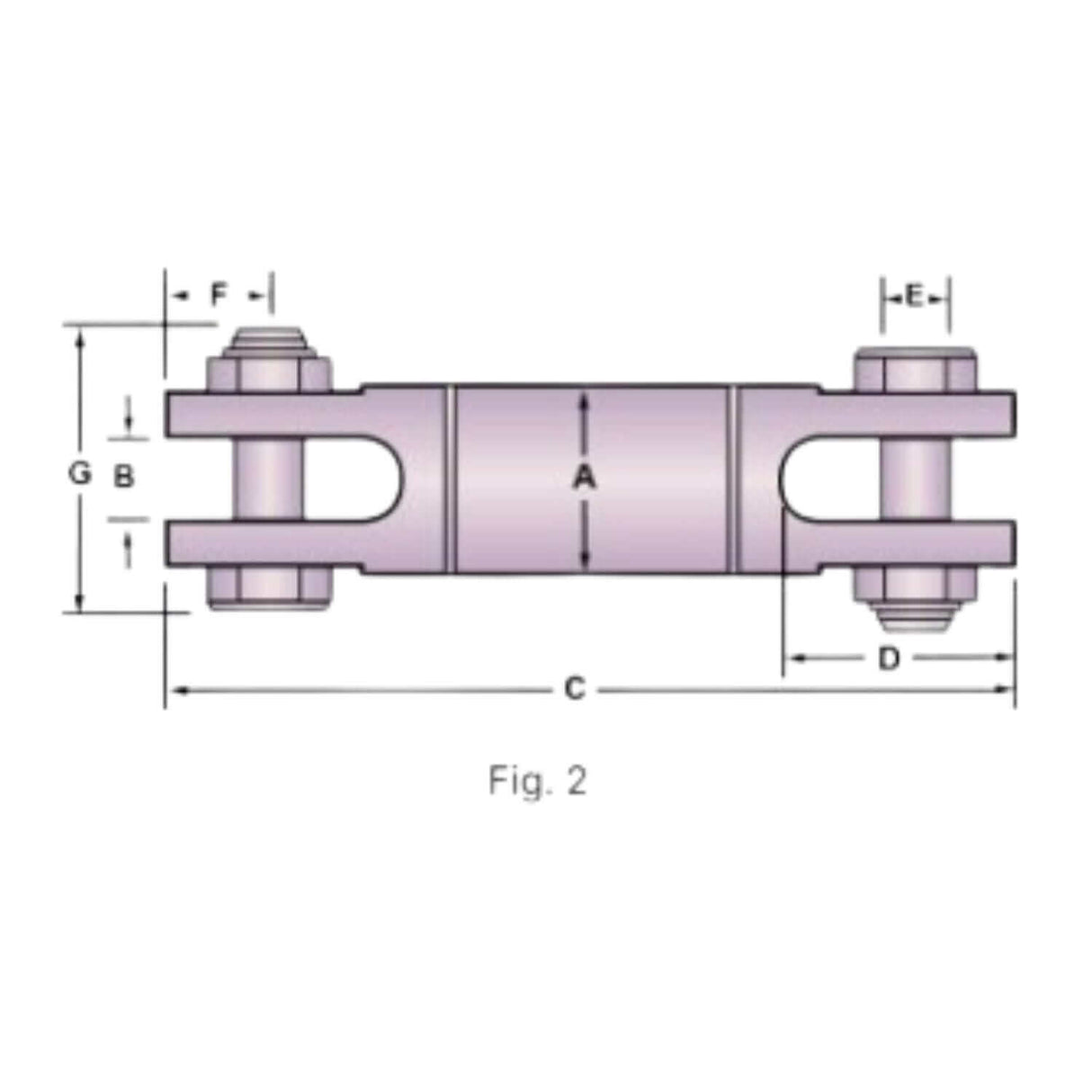

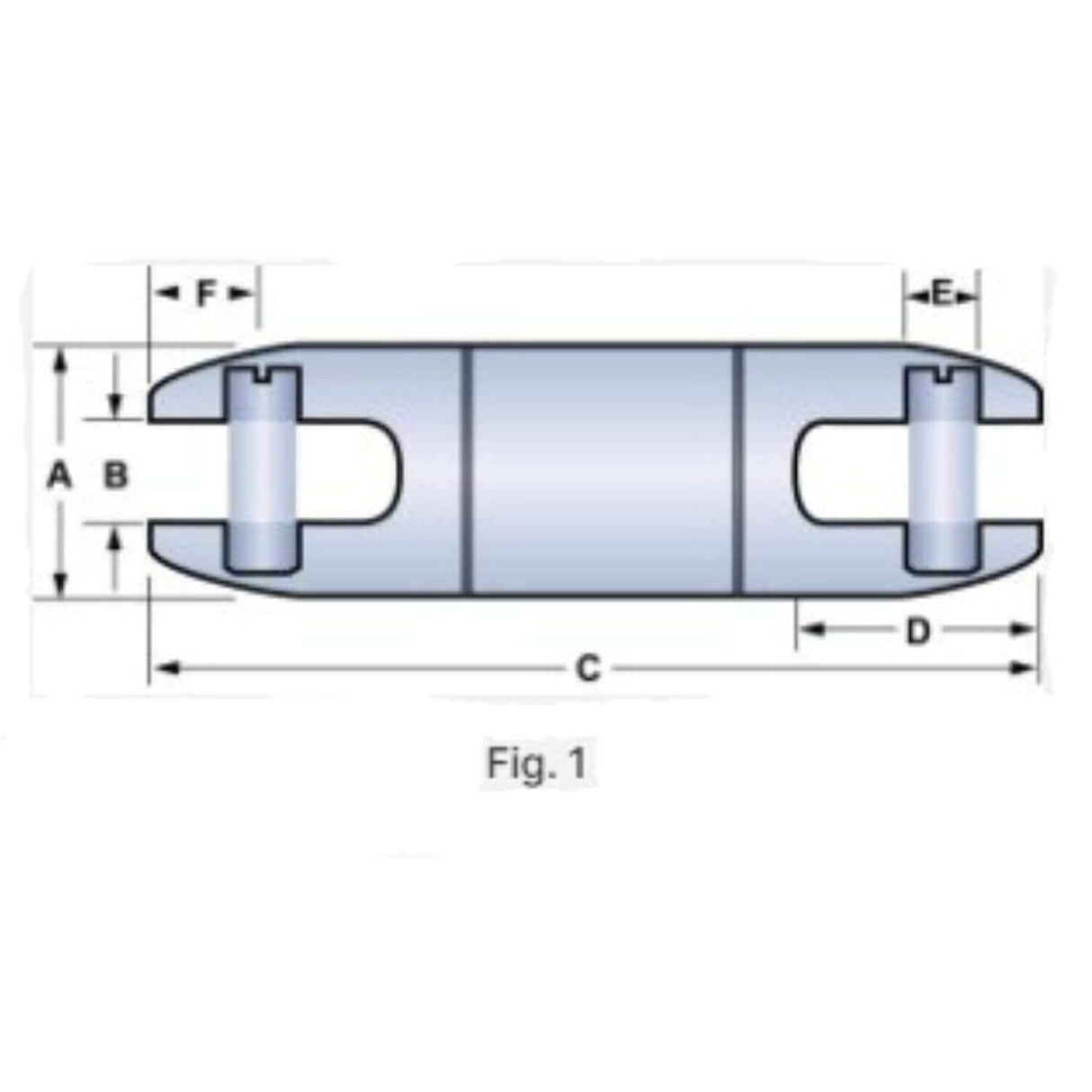

Swivel Dimensions (Reference)
Dimensions vary by swivel size. Use this chart as a general reference for fitment and pullback planning.
| Swivel Size (in) | Overall Length (A) | Body Diameter (D) | Pin Diameter (E) | Clevis Width (F) | Clevis Opening (G) |
|---|---|---|---|---|---|
| 1-1/4" | 6.57 | 1.34 | 0.37 | 0.59 | 0.37 |
| 1-5/8" | 7.22 | 1.59 | 0.46 | 0.75 | 0.56 |
| 2" | 7.86 | 1.81 | 0.53 | 0.75 | 0.63 |
| 2-1/2" | 10.94 | 2.84 | 0.88 | 1.25 | 0.88 |
| 3" | 12.77 | 3.56 | 1.13 | 1.38 | 1.13 |
| 4" | 15.25 | 4.00 | 1.25 | 1.88 | 1.25 |
Note: Replacement break pins are required after separation. Always match the swivel size and break load to your application, and use the listed color code as a quick field reference when identifying replacement pins.
