Condux Break-Away Swivel Replacement Pins | Directional Drilling HDD
Condux Break-Away Swivel Replacement Pins for Directional Drilling | HDD Service Pins by Swivel Size & Break Load

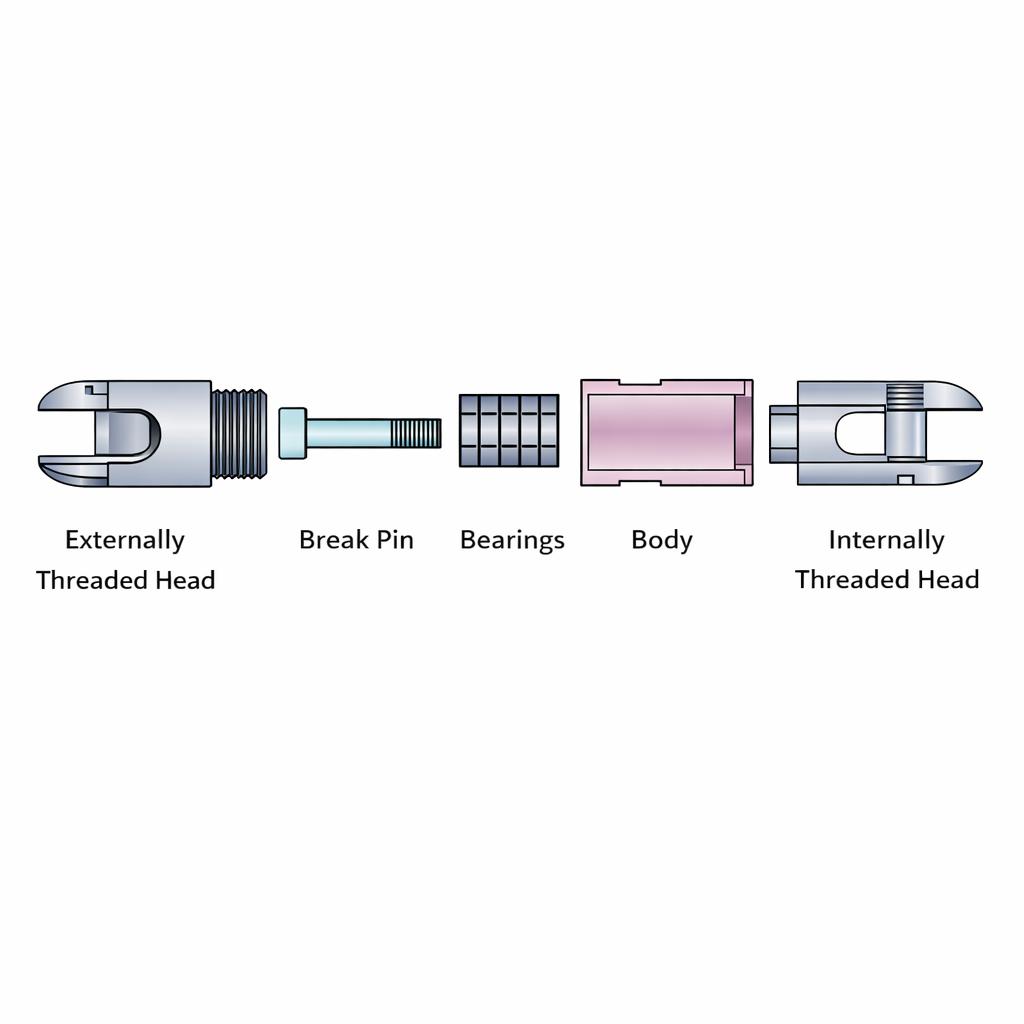

Condux Break-Away Swivel Replacement Pins are service parts designed for Condux Break-Away Pulling Swivels used in horizontal directional drilling (HDD) and other controlled pullback applications. Each replacement pin is matched to a specific swivel size and break load so the swivel can be serviced correctly after separation.
These pins correspond directly to the main Condux break-away swivel assembly and should be selected by matching the exact swivel size, break load rating, and pin part number. Color-coded identification helps confirm the correct service pin in the field, but the compatibility chart below should be used as the primary reference.
Compatible Break-Away Swivels
These replacement pins are designed for use with Condux Break-Away Pulling Swivels used in HDD pullback operations. View compatible swivel assemblies here >
Key Features
- Made for Condux Break-Away Swivels – Designed specifically for servicing Condux break-away pulling swivels used in HDD pullback operations.
- Swivel-Specific Compatibility – Each replacement pin corresponds to a defined swivel size and break load rating.
- Color-Coded Identification – Pin colors correspond to specific break load configurations for easier field verification.
- Restores Break-Away Function – Ideal for replacing break pins after swivel separation during drilling operations.
- Reference Chart Included – Use the compatibility table below to match each pin to the correct Condux swivel assembly.
Common Applications
- Replacement service parts for Condux break-away pulling swivels
- Horizontal directional drilling (HDD) pullback operations
- Conduit, duct, and cable installation where break-away protection is required
- Utility, telecom, and underground construction pulling applications
How to Select the Correct Replacement Pin
Select the replacement pin by matching your existing Condux break-away swivel to the correct swivel size and break load. The table below shows which replacement pin is used for which swivel, making it easier to identify the correct service part for your existing swivel assembly.
Use the compatibility chart to match the main swivel part number to the correct replacement pin part number. Color code can be used as a quick field reference, but the safest method is to confirm the exact swivel and pin combination shown below.
Replacement Pin Compatibility Chart
Use this chart to identify which replacement pin fits which Condux break-away swivel. Select the exact pin SKU from the variant options above.
| Swivel Size | Break Load (lbs) | Main Swivel Part # | Replacement Pin Part # | Color Code |
|---|---|---|---|---|
| 1-1/4" | 1,200 | 08021210 | 08021215 | Brown / White |
| 1-1/4" | 1,900 | 08021220 | 08021225 | Violet / Black |
| 1-1/4" | 2,000 | 08021230 | 08021235 | Slate / White |
| 1-1/4" | 2,500 | 08021240 | 08021245 | Violet / Green |
| 1-1/4" | 3,000 | 08021250 | 08021255 | Slate / Red |
| 1-1/4" | 3,400 | 08021260 | 08021265 | Blue / Yellow |
| 1-1/4" | 4,000 | 08021270 | 08021275 | Red / Yellow |
| 1-5/8" | 4,500 | 08021610 | 08021615 | Slate / Yellow |
| 1-5/8" | 5,000 | 08021620 | 08021625 | Orange / Blue |
| 1-5/8" | 5,500 | 08021630 | 08021635 | Brown / Green |
| 1-5/8" | 6,000 | 08021640 | 08021645 | Blue / Brown |
| 1-5/8" | 6,500 | 08021650 | 08021655 | Red / Blue |
| 1-5/8" | 7,000 | 08021660 | 08024505 | Orange |
| 1-5/8" | 7,500 | 08021670 | 08025505 | Blue |
| 1-5/8" | 8,000 | 08021680 | 08027905 | Yellow |
| 1-5/8" | 8,500 | 08021690 | 08028405 | Slate |
| 2" | 9,000 | 08029200 | 08029205 | Red |
| 2" | 10,000 | 08029400 | 08029405 | Green |
| 2-1/2" | 12,000 | 08029600 | 08029605 | White |
| 2-1/2" | 14,000 | 08029700 | 08029705 | Brown |
| 3" | 18,500 | 08075600 | 08029720 | Black |
| 3" | 22,000 | 08075800 | 08075805 | Yellow |
| 3" | 25,000 | 08075820 | 08075825 | Blue |
| 4" | 40,000 | 08075940 | 08075945 | Orange |
Note: Always match the replacement pin to the correct main swivel part number, swivel size, and break load. This listing intentionally excludes part number 08021295.
