Break-Away Pulling Swivels | Directional Drilling HDD Swivel
Break-Away Pulling Swivels for Directional Drilling | HDD Swivels with Replaceable Break Pins

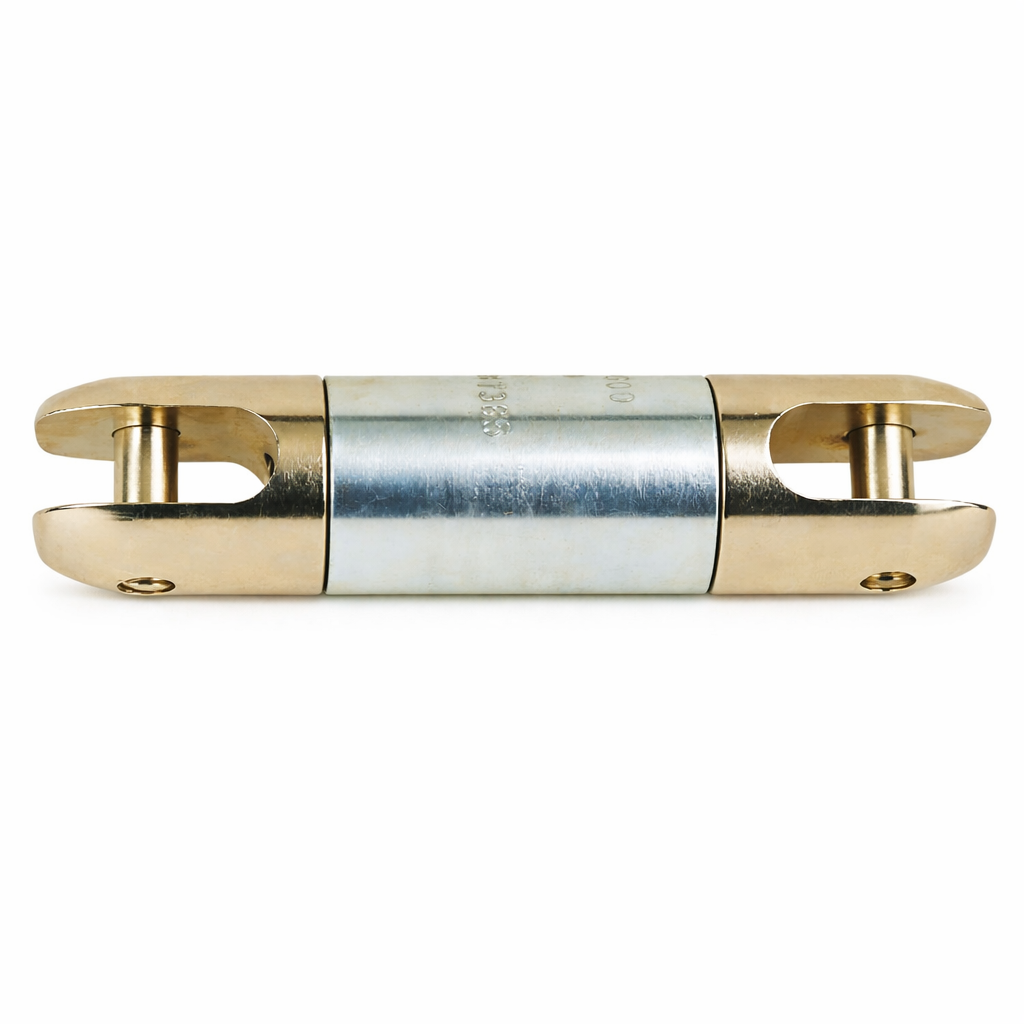

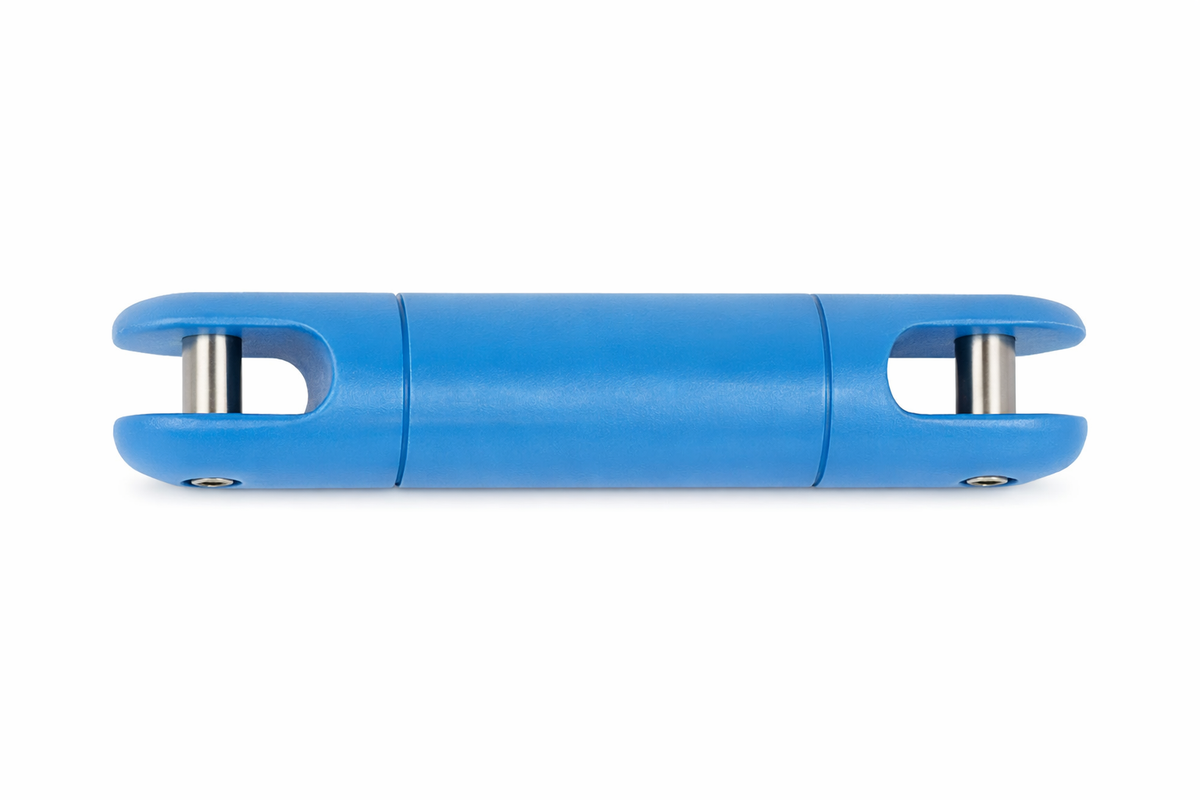

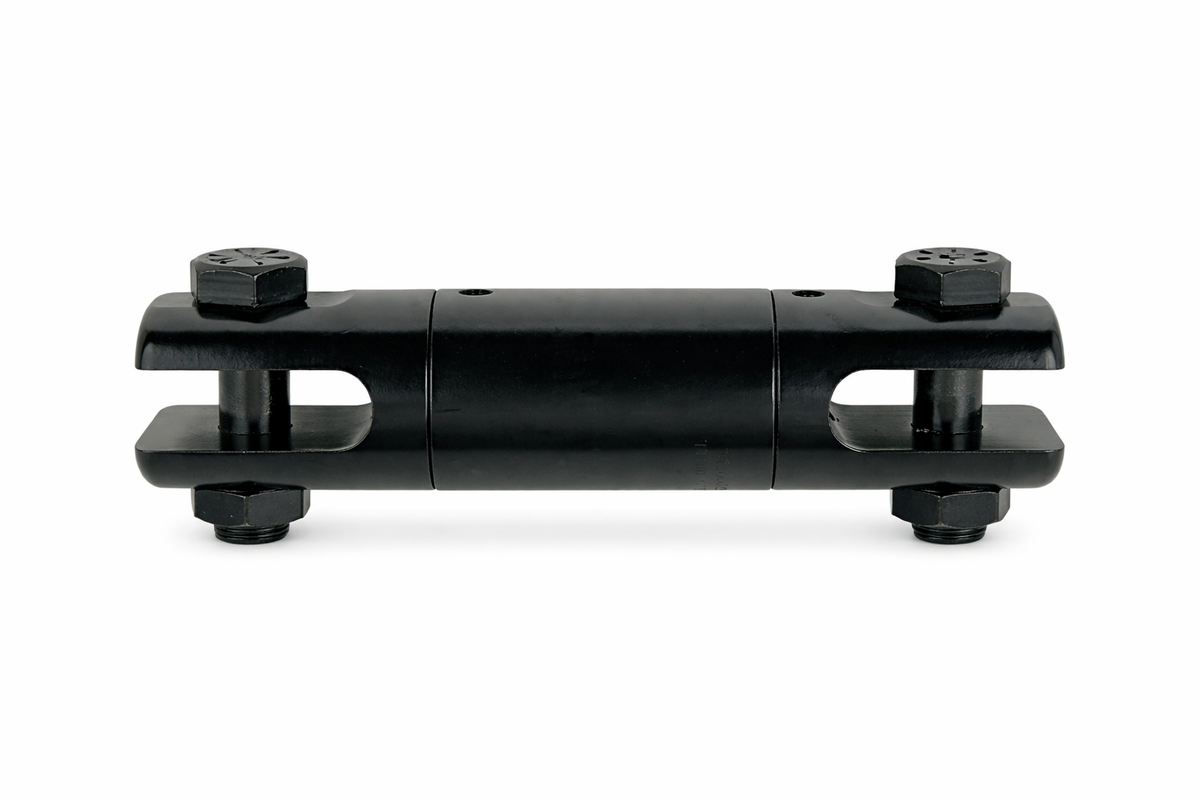

Condux Break-Away D.Drill® Swivels help prevent overstressing cable or conduit during directional drilling pullback operations. Each assembly combines the swivel and break link into one component, eliminating additional weak-link components and reducing the distance between the reamer and pulling eye.
Six swivel sizes are available for different pulling requirements. Rated break loads range from 1,200 lb (5,338 N) to 40,000 lb (177,928 N). Each swivel is designed to separate within +8% / −2% of its rated break load.
Compatible Replacement Pins
Each swivel uses a replaceable break pin matched to its swivel size and rated break load. Use the ordering table below to identify the correct replacement pin and color code.
View Compatible Replacement Pins Here > LINK
Key Features
- Combined Swivel and Break Link – Integrates two pulling components into one compact assembly.
- Controlled Separation – Designed to separate within +8% / −2% of the listed rated break load.
- Replaceable Break Pins – Replacement pins can be ordered separately after separation.
- Color-Coded Identification – Pin colors help identify the corresponding break-load rating.
- Multiple Sizes and Ratings – Six swivel sizes are available with break-load ratings from 1,200 to 40,000 lb.
- Compact Pullback Configuration – Helps shorten the distance between the reamer and pulling eye.
Applications and Safety
These swivels are designed for directional drilling. They may also be used in applications where the swivel, product, and pulling medium are segregated from personnel and any break would remain contained within a pipe or borehole.
WARNING: Use in any manner other than described above could result in severe personal injury or death.
Warranty: Condux D.Drill® Swivels include a 90-day limited warranty.
Dimensional Figure Selection

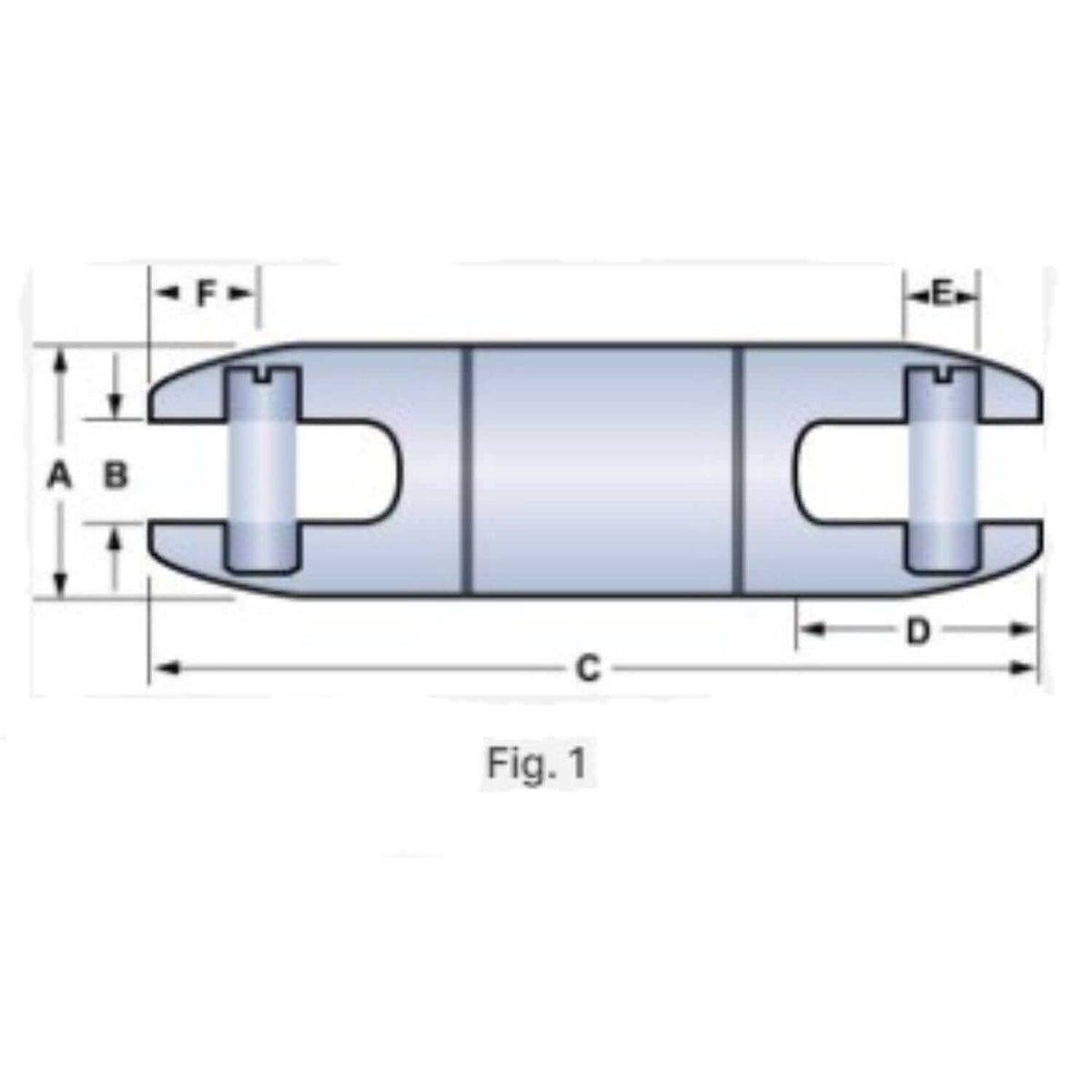

- Use Figure 1 dimensions when ordering 1-1/4″ and 1-5/8″ swivels.

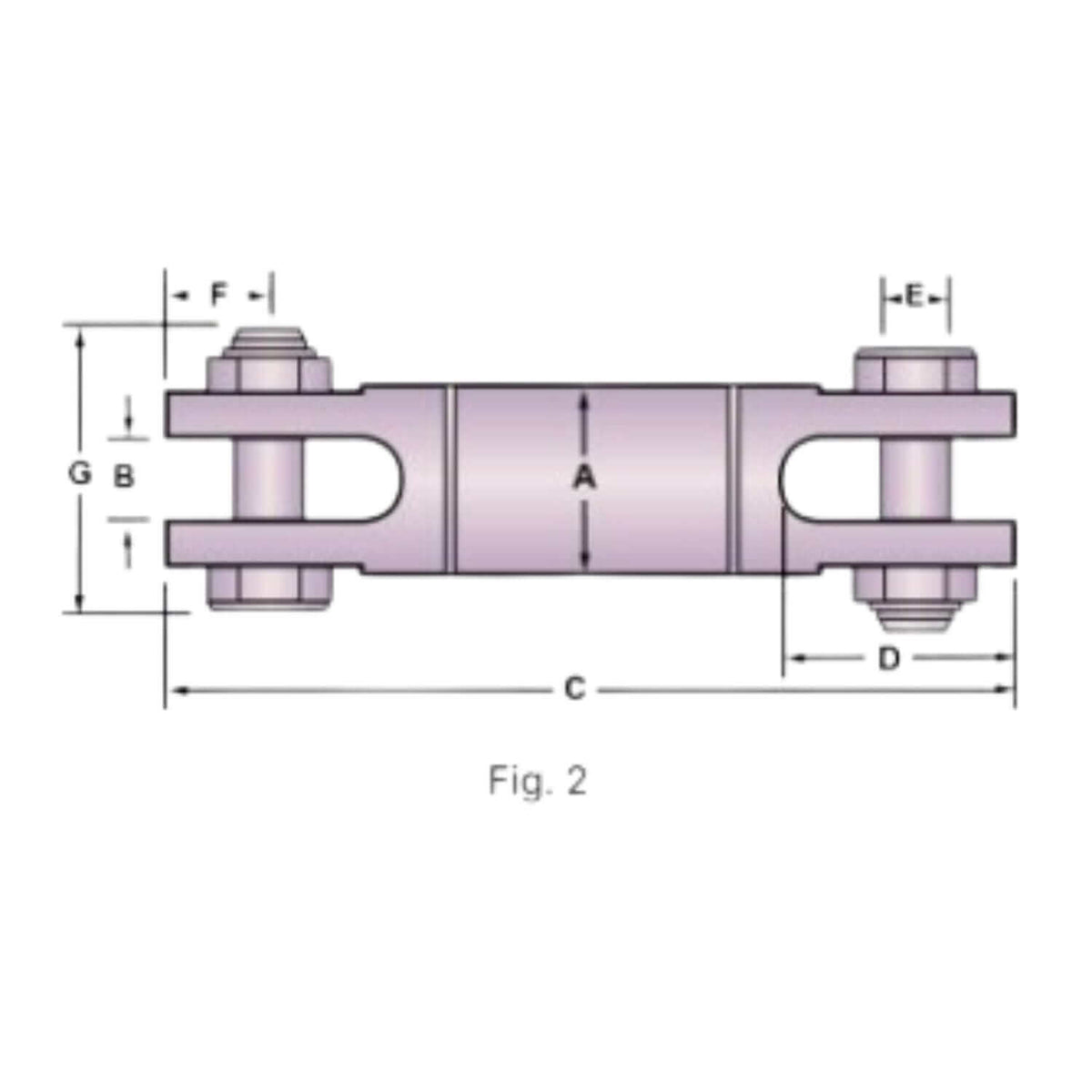

- Use Figure 2 dimensions when ordering 2″, 2-1/2″, and 3″ swivels.
Documentation
Ordering Information
Match the swivel size and rated break load to the correct Condux part number, replacement pin, and pin color. Select the exact SKU from the product options above.
| Swivel Size | Swivel Part Number | Break Load (lb) | Break Load (N) | Replacement Pin | Color |
|---|---|---|---|---|---|
| 1-1/4″ (32 mm) | 08021210 | 1,200 | 5,338 | 08021215 | Brown/White |
| 1-1/4″ (32 mm) | 08021280 | 1,500 | 6,672 | 08021285 | Green/Yellow |
| 1-1/4″ (32 mm) | 08021220 | 1,900 | 8,451 | 08021225 | Violet/Black |
| 1-1/4″ (32 mm) | 08021230 | 2,000 | 8,896 | 08021235 | Slate/White |
| 1-1/4″ (32 mm) | 08021240 | 2,500 | 11,120 | 08021245 | Violet/Green |
| 1-1/4″ (32 mm) | 08021250 | 3,000 | 13,344 | 08021255 | Slate/Red |
| 1-1/4″ (32 mm) | 08021260 | 3,400 | 15,123 | 08021265 | Blue/Yellow |
| 1-1/4″ (32 mm) | 08021270 | 4,000 | 17,792 | 08021275 | Red/Yellow |
| 1-5/8″ (41 mm) | 08021610 | 4,500 | 20,017 | 08021615 | Slate/Yellow |
| 1-5/8″ (41 mm) | 08021620 | 5,000 | 22,241 | 08021625 | Orange/Blue |
| 1-5/8″ (41 mm) | 08021630 | 5,500 | 24,465 | 08021635 | Brown/Green |
| 1-5/8″ (41 mm) | 08021640 | 6,000 | 26,689 | 08021645 | Blue/Brown |
| 1-5/8″ (41 mm) | 08021650 | 6,500 | 28,913 | 08021655 | Red/Blue |
| 1-5/8″ (41 mm) | 08021660 | 7,000 | 31,136 | 08024505 | Orange |
| 1-5/8″ (41 mm) | 08021670 | 7,500 | 33,360 | 08025505 | Blue |
| 1-5/8″ (41 mm) | 08021680 | 8,000 | 35,584 | 08027905 | Yellow |
| 1-5/8″ (41 mm) | 08021690 | 8,500 | 37,808 | 08028405 | Slate |
| 2″ (51 mm) | 08029200 | 9,000 | 40,032 | 08029205 | Red |
| 2″ (51 mm) | 08029400 | 10,000 | 44,480 | 08029405 | Green |
| 2-1/2″ (64 mm) | 08029600 | 12,000 | 53,376 | 08029605 | White |
| 2-1/2″ (64 mm) | 08029700 | 14,000 | 62,272 | 08029705 | Brown |
| 3″ (76 mm) | 08075600 | 18,500 | 82,288 | 08029720 | Black |
| 3″ (76 mm) | 08075800 | 22,000 | 97,856 | 08075805 | Yellow |
| 3″ (76 mm) | 08075820 | 25,000 | 111,250 | 08075825 | Blue |
| 4″ (102 mm) | 08075940 | 40,000 | 177,928 | 08075945 | Orange |
Break-Away Swivel Dimensions
All dimensions correspond to the labeled dimensional figures in the Condux specification sheet.
| A (in) | A (mm) | B (in) | B (mm) | C (in) | C (mm) | D (in) | D (mm) | E (in) | E (mm) | F (in) | F (mm) | G (in) | G (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-1/4 | 32 | 0.56 | 14 | 6.57 | 167 | 1.34 | 34 | 0.37 | 9 | 0.59 | 15 | — | — |
| 1-5/8 | 41 | 0.63 | 16 | 7.22 | 183 | 1.59 | 40 | 0.56 | 14 | 0.78 | 20 | — | — |
| 2 | 51 | 0.75 | 19 | 7.86 | 200 | 1.81 | 46 | 0.63 | 16 | 0.75 | 19 | 2.89 | 73 |
| 2-1/2 | 64 | 1.00 | 25 | 10.94 | 278 | 2.84 | 72 | 0.88 | 22 | 1.25 | 32 | 3.67 | 93 |
| 3 | 76 | 1.31 | 33 | 12.77 | 324 | 3.56 | 90 | 1.13 | 29 | 1.38 | 35 | 4.50 | 114 |
| 4 | 102 | 1.63 | 41 | 15.25 | 387 | 4.00 | 102 | 1.25 | 32 | 1.88 | 48 | 5.58 | 142 |
Note: A replacement break pin is required after separation. Always match the swivel part number, rated break load, replacement-pin part number, and color before returning the swivel to service.
