IntegriFuse I-105 Electrofusion Processor | 240V | 1/2"–63" IPS
IntegriFuse I-105 Electrofusion Processor | 240V | 1/2"–63" IPS — Product Overview

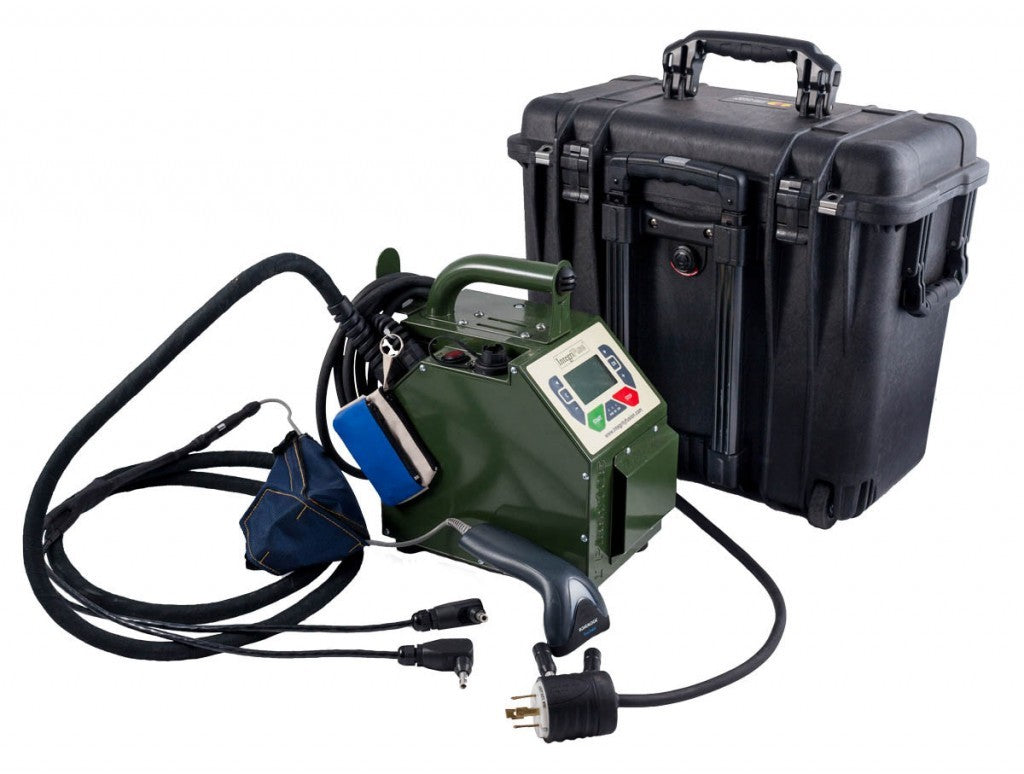

The IntegriFuse I-105 Electrofusion Processor is a high-capacity, weather-resistant fusion control unit engineered for demanding applications requiring reliable performance across all universally barcoded electrofusion fittings up to 63″ IPS. Each processor is supplied with a rugged wheeled Pelican™ case for enhanced protection during transport and jobsite use.
The I-105 features improved onboard electronics that support long fusion times, high-amperage output, and back-to-back fusion cycles without overheating. A large, intuitive graphic display walks the operator through each fusion step, while the double-insulated transformer with galvanic isolation maximizes electrical safety.
Designed for 240V jobsite power, the processor includes a 4-prong L14-30 plug and comes equipped with 4.0 mm lead tips and 4.7 mm adapters for universal compatibility. The optional integrated GPS module provides ±2.5 m (8.2 ft.) location accuracy. Up to 7,500 fusion reports can be stored and exported through USB or RS232 in CSV/TXT formats.
Key Features & Benefits
- Fuses electrofusion fittings from 1/2″ to 63″ IPS
- Self-adjusting lead tips with 4.0 mm and 4.7 mm compatibility
- Weather-resistant design with rugged Pelican™ rolling case
- Supports long fusion times and continuous high-amperage cycles
- 4-prong L14-30 240V input plug for jobsite generators
- Large intuitive display with guided fusion workflow
- Optional GPS with ±2.5 m accuracy
- 7,500 fusion record storage with USB / RS232 export
- Multilingual interface: English, Spanish, Italian, German, French, Russian
Technical Specifications
| Specification | I-105 Processor |
|---|---|
| Fusion Range | 1/2″ – 63″ IPS |
| Input Voltage | 230V AC (185V–260V) |
| Input Current | 16 A |
| Input Plug | 4-prong L14-30 (240V/30A) Twist Lock |
| Output Voltage | 8V–48V AC |
| Output Current | 65 A > 20,000 sec; up to 105 A for max 1,400 sec @ 68°F |
| Peak Output | 120 A (electronically limited) |
| Working Temperature | 14°F to 113°F |
| Power Requirement | 6,500W continuous generator w/ L14-30 outlet |
| Lead Terminals | 4.0 mm tips + 4.7 mm adapters |
| Fusion Report Storage | 7,500 fusions |
| Data Export | USB / RS232 (CSV, TXT) |
| Unit Weight | 52 lbs (processor only) |
| Weight w/ Case | Approx. 62 lbs including Pelican case |
| Item Code | 600800 |
All technical data sourced from Integrity Fusion (Rev. 04222025-A).
