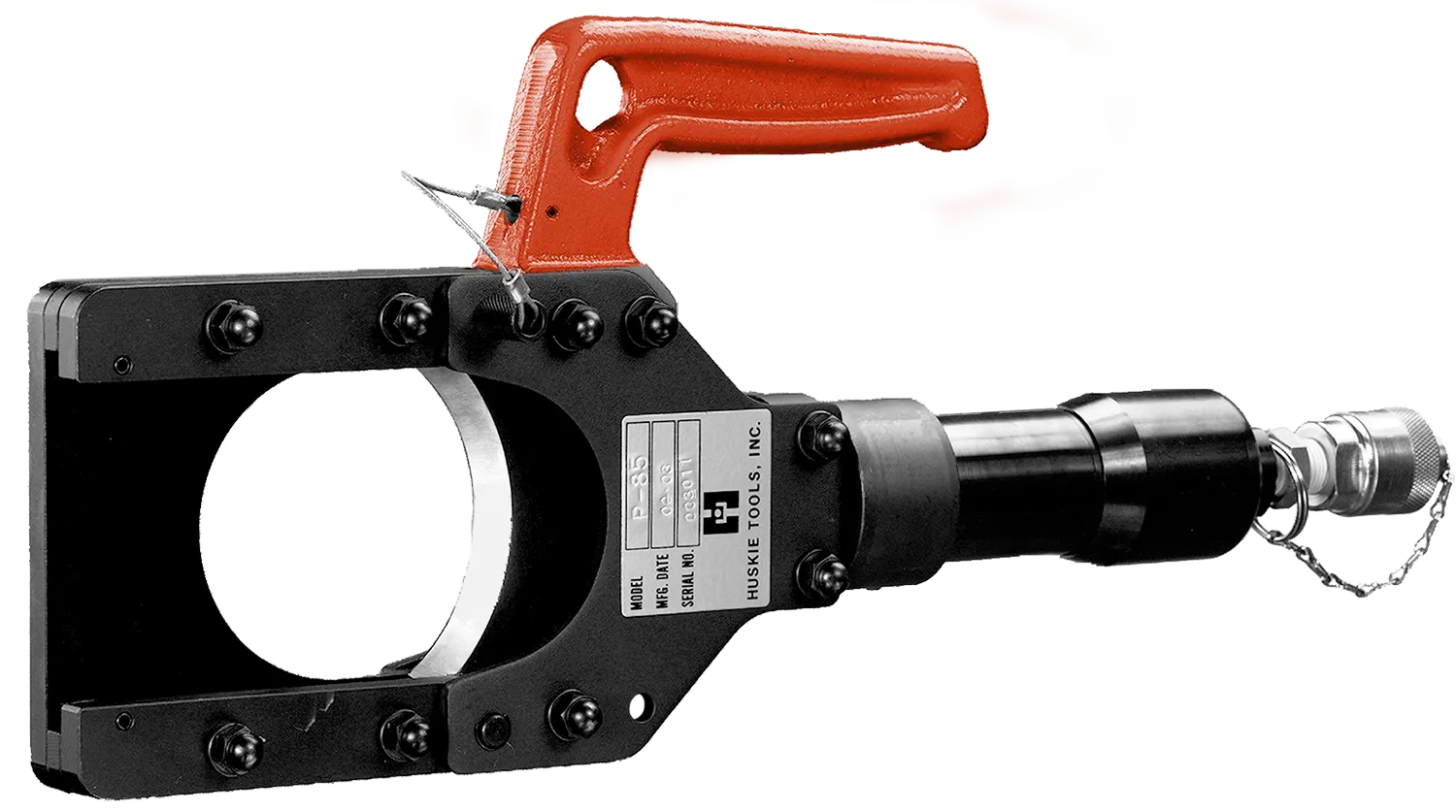

REMOTE HYDRAULIC CUTTING HEAD FOR LARGE CABLES | SP-85
The SP-85 Remote Hydraulic Cutting Head from Huskie Tools is a compact, high-capacity solution for cutting large copper, aluminum, and lead-sheathed cables up to 3.35" in diameter. Designed to operate with any 10,000 psi hydraulic system, this tool delivers powerful performance in a lightweight, field-ready design.
Weighing just 16 lbs., the SP-85 combines portability with power. It features a guillotine-style blade that offers smoother, jam-free cutting and an internal spring-loaded blade retraction system for safer operation. The hinged head makes cable insertion fast and easy, and a black oxide finish adds durability in rugged field conditions.
Each tool comes with a 3/8” screw-type male hydraulic coupler for quick and secure connection. Whether you’re working with underground service cables or thick industrial leads, the SP-85 offers precision and strength in one compact package.
Key Features:
- Wide Cutting Capacity: Cuts copper/aluminum up to 3” and lead-sheathed cables up to 3.35”
- Guillotine Blade Design: Smooth shear action minimizes jamming and ensures clean cuts
- Spring Retraction: Blade retracts automatically after cutting pressure is released
- Lightweight & Portable: 16 lb tool with 3.3” jaw opening for field use
- Quick Connect: Supplied with 3/8” screw-type male hydraulic coupler
- Corrosion Protection: Black oxide finish enhances durability in harsh environments
Specifications
| Specification | Details |
|---|---|
| Output | 2.7 Ton |
| Weight | 16 lbs. |
| Length | 19” |
| Jaw Opening | 3.3” |
| Operating Pressure | 10,000 psi |
| Coupler | 3/8” Male Screw-Type |
Cutting Capacities
| Material | Max Diameter |
|---|---|
| Cu & Al Wire | 3” (76mm) |
| Lead Sheath & Comm. Cable | 3.35” (85mm) |
| Wire Rope, ACSR, Guy Wire, Rebar | Do Not Cut |
| Soft Steel Bolts, Chain | Do Not Cut |
Documentation
Note: The SP-85 is not designed for cutting ACSR or EHS guy wire. For those applications, consider the SP-24CC, SP-32CC1, or S-32CC Manual Cutter.
