Type C Telephone Duct Split Sleeve Couplings | 4" C-Duct Repair
$2,004.26
Unit price
/
Select Option
Sold in case qty's of 25. Request a quote for current pricing & lead times.
Lead Time: Made to order - manufacturing lead time applies.

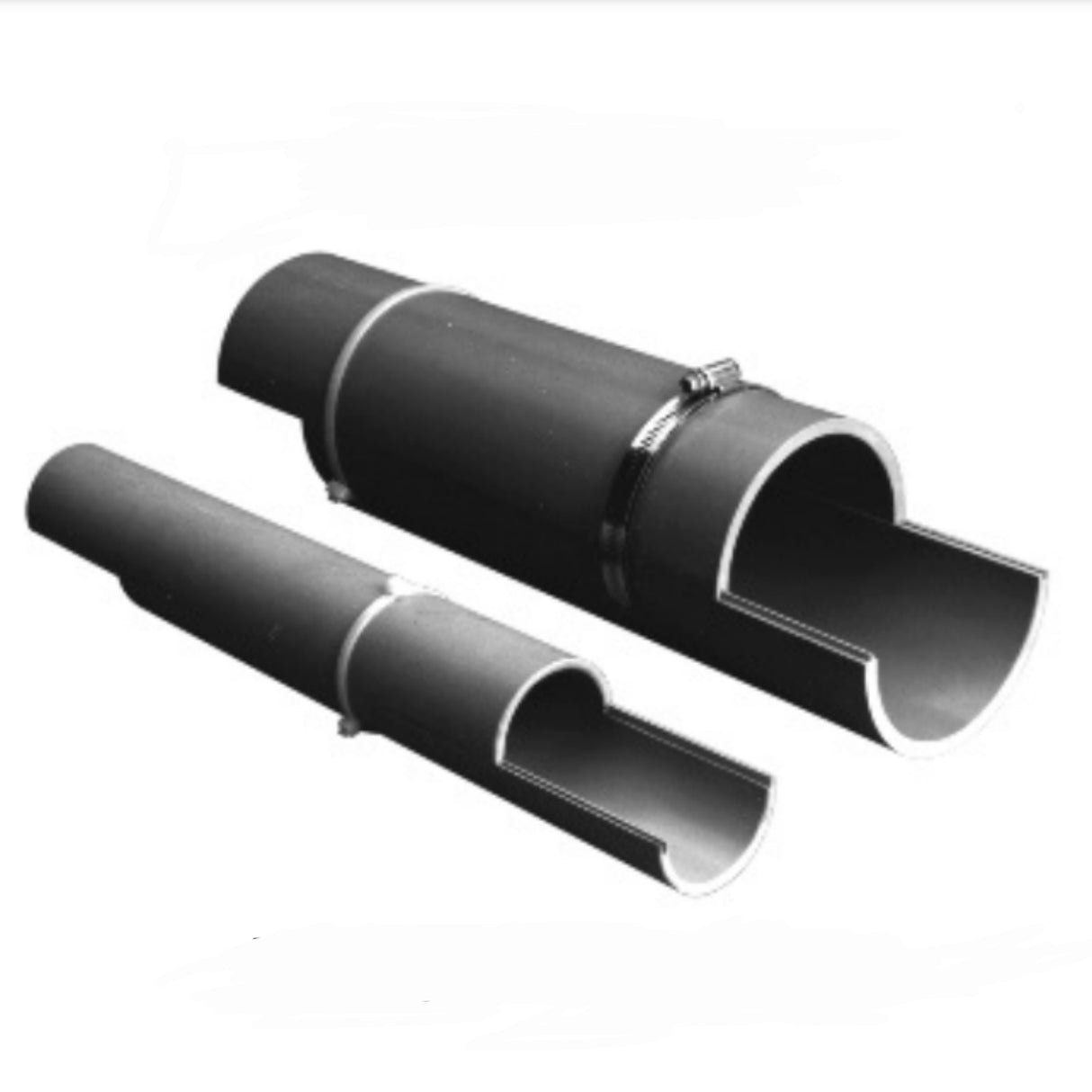

Type C Telephone Duct Split Sleeve Couplings — PVC repair couplings split lengthwise, for joining and repairing 4" Type C telephone duct around installed cable.
Type C telephone duct has its own outside diameter (4.350" on the 4"), so Schedule 40 couplings do not fit it. These split sleeve couplings are made to the Type C dimension. The wall is split along its length so the coupling opens around an installed cable and closes over the joint, and the sleeve is open-ended so it slides to wherever the joint sits. Use them to join Type C split duct to existing duct, or to bridge a repair where a damaged section has been cut out.
Gray or White, One-Side or Two-Side
- Gray (CPSPLTTD): standard telephone duct gray.
- White (CPSPLTWTD): for white telephone duct systems, so the repair matches the run.
- One-side split: a single cut along the sleeve; springs open to pass over the cable and closes back to round.
- Two-side split: two halves, easier around a large or stiff cable bundle. The 18" two-side sleeve also bridges a longer gap.
Key Features
- No cable removal: installs around existing conductors
- Type C fit: sized to 4" telephone duct, not Schedule 40
- Solvent cementable PVC: UV resistant, for direct burial and encased duct
- Sold by the case: case quantities in the table; made to order, manufacturing lead time applies
- Pricing: quoted per order. Call (815) 337-8845 or use the quote button with the size and quantity you need
Before You Order
- Check the duct type. If the run is Schedule 40 or 80 PVC conduit rather than Type C telephone duct, you need the Schedule 40 split sleeve couplings instead. View Sch 40 and 80 Split Sleeve Couplings Here > LINK
- Not a listed product. Split sleeve couplings carry no ETL or UL listing. Where the NEC governs, confirm acceptance with the authority having jurisdiction before you order.
Order Guide
| Part Number | Size x Length | Color | Split | UPC | Case Qty |
|---|---|---|---|---|---|
| CPSPLTTD400X600 | 4" x 6" | Gray | 1-side | 670648006070 | 25 |
| CPSPLTWTD400X600 | 4" x 6" | White | 1-side | 670648006100 | 25 |
| CPSPLTWTD400X800 | 4" x 8" | White | 1-side | 670648006117 | 15 |
| CPSPLT2STD400X1800 | 4" x 18" | Gray | 2-side | 670648006063 | 6 |
Size is nominal duct size x coupling length. Sold in full manufacturer cases; the case quantity is the minimum order and the order increment. Light gray rows are white couplings; the blue row is the two-side split. Ships from the manufacturer.
