Type C Telephone Duct Sweeps | 4" C-Duct | 11.25° to 90° Bell End

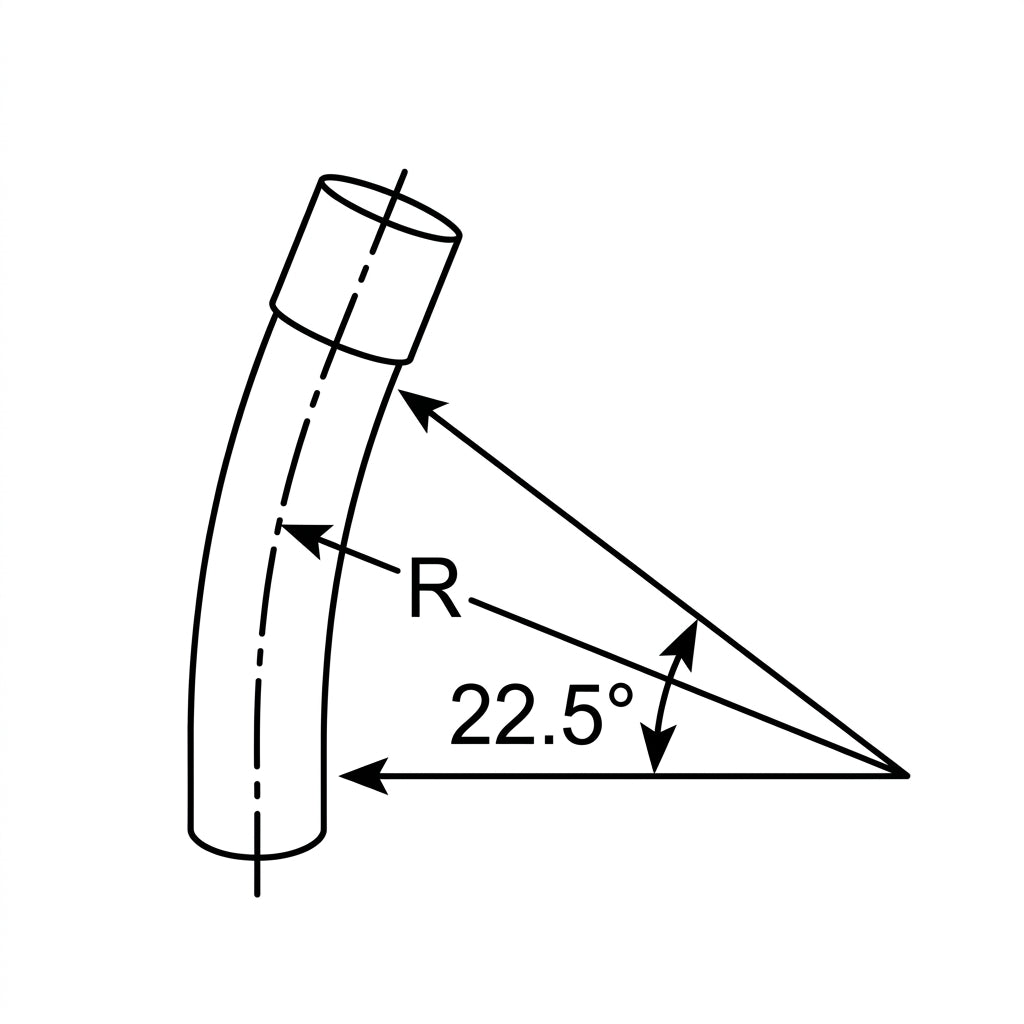

Type C Telephone Duct Sweeps — factory-formed bends in 4" heavy wall Type C telephone duct, bell end, in 11.25°, 22.5°, 45° and 90° at 24" and 36" radius.

Type C duct is the heavy wall gray PVC telephone duct used in telecom duct banks and pole risers. These sweeps are formed from the same duct so the wall, outside diameter and bell match the straight lengths; the bell end takes a plain duct end with solvent cement, and the spigot end goes into the next bell. Use the 24" radius where space is tight and the 36" radius where cable pulling tension matters.

Key Features

• Matches Type C duct: same heavy wall and O.D. as 4" telephone duct, not Schedule 40
• Bell end: one belled end, one plain spigot, solvent weld
• Four angles, two radii: 11.25°, 22.5°, 45° and 90°, each in 24" and 36" radius
• Five sizes stocked: stocked in Woodstock IL with a minimum order of 5; the 45° x 24" and the two 24" small-angle sweeps are made to order
• Don't see your size? Call (815) 337-8845 and we'll quote it, usually same day.

Order Guide

Blue rows are stocked in Woodstock IL. Larger radii (4 ft to 25 ft) and 30° sweeps are available on request; call for pricing and lead time.
